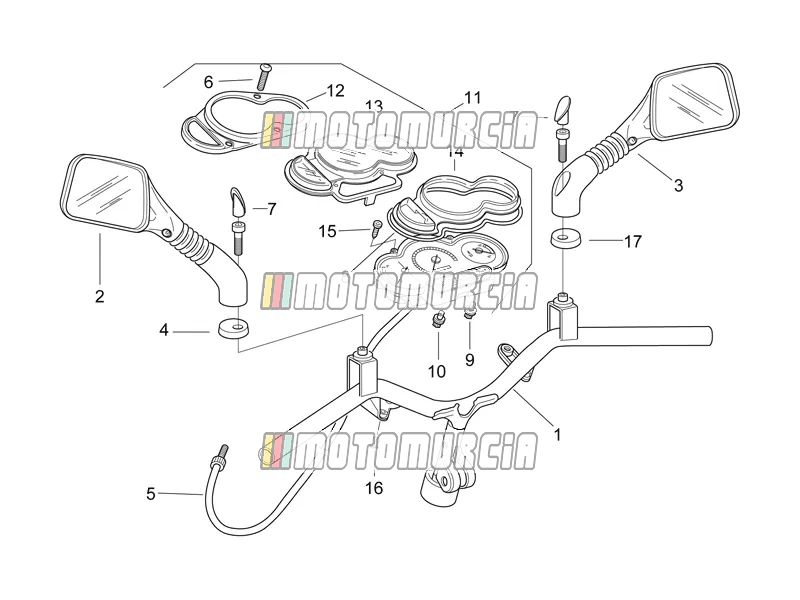

Exploded view — Handlebar - Dashboard

Products

1 Handlebar Backorder AP8218210

•

  Handlebar Piaggio Group · AP8218210 Backorder · Shipped in 2–4 weeks

  € 309,69

  Add to cart

2 Mirror left AP8201976 No longer available

• AP8201976 Mirror left
  No longer available

  Alternatives from other brands

  GHM Mirror Left Aprilia SR50 Gulliver/Replica GHMparts · 6926132 Available · Shipped in 4–7 working days

  € 12,95

  Add to cart

3 Mirror right Available AP8201975

•

  Mirror, right, Typ III E9 010134 L E13 000007 Piaggio Group · AP8201975 Available · Shipped in 3–5 working days

  € 40,58

  Add to cart

  Alternatives from other brands

  GHM Right Mirror Aprilia SR50 Gulliver / Replica GHMparts · 6926131 Available · Shipped in 4–7 working days

  € 12,95

  Add to cart

4 LH mirror rubber Available AP8220454

•

  Mirror rubber, left Piaggio Group · AP8220454 Available · Shipped in 3–5 working days

  € 4,28

  Add to cart

5 Speedometer cable AP8214163 No longer available

• AP8214163 Speedometer cable
  No longer available

6 Screw Available AP8221242

• • Year of manufacture: 2002


  Thread Screw 3,5x20 mm Piaggio Group · AP8221242 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 1,44

  Add to cart

7 RH + LH rearview mirror plug Available AP8202071

• AP8202071 RH + LH rearview mirror plug Quantity needed: 2
  • Rearview mirror with Fico Mirrors logo
  • Type III E9 01 0134 L E13 000007


  Plug, für Spiegel Piaggio Group · AP8202071 Available · Shipped in 3–5 working days

  € 9,17

  Add to cart


  Plug, für Spiegel Piaggio Group · AP8202071 Available · Shipped in 3–5 working days

  € 9,17

  Add to cart
• AP8201818 RH + LH rearview mirror plug Quantity needed: 2
  • "Arsauto" rearview mirror
  • Type L E3 51214 III E3 02x50746
  No longer available

8 Dashboard lens seal AP8220555 No longer available

• AP8220555 Dashboard lens seal
  • Habana Custom version
  • Mojito Custom version
  No longer available

9 Lampholder, complete (12V 1,2W) Available AP8212407

•

  Bulbs Festoon with Socket, 12 V, 1,2 W Piaggio Group · AP8212407 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 15,96

  Add to cart

10 Lampholder, complete Available AP8212408

•

  Bulbs Festoon with Socket, 12 V, 2 W Piaggio Group · AP8212408 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 17,27

  Add to cart

11 Dashboard AP8212793 No longer available

• AP8212793 Dashboard
  No longer available
• AP8212899 Dashboard complete -exp-
  • Country: Israel
  • Country: Switzerland
  No longer available

12 Fascia panel w/out lenses AP8212881 No longer available

• AP8212881 Fascia panel w/out lenses
  No longer available

13 Dashboard lens AP8212873 No longer available

• AP8212873 Dashboard lens
  No longer available

14 Lighting shield, yellow AP8212930 No longer available

• AP8212930 Lighting shield, yellow
  No longer available

15 Screw Available AP8150421

• • Colour: Alitalia (t.s.899864)
  • Colour: Replica Alitalia (t.s.899863)
  • Colour: Replica MY13
  • Colour: Replica SBK MY12
  • Country: Canada
  • Country: Italy
  • Country: United States of America


  Thread Screw 2,9x12 mm, stainless steel Piaggio Group · AP8150421 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

16 Plastic rivet Available AP8102671

• • Habana Retro version
  • Mojito Retro version


  Rivet plastic Piaggio Group · AP8102671 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

17 RH mirror rubber AP8220453 No longer available

• AP8220453 RH mirror rubber
  No longer available
