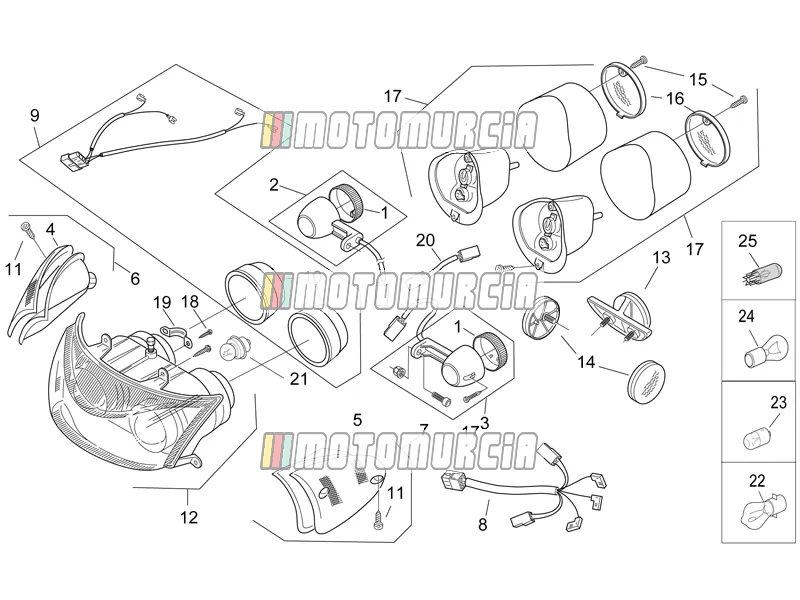

Exploded view — Lights

Products

1 Turn indicator lens Backorder AP8212680

•

  TURN INDICATOR LENS Piaggio Group · AP8212680 · Quantity needed: 2 Backorder

  € 9,61

  Add to cart

2 Turn indicator AP8212700 No longer available

• AP8212700 Turn indicator
  No longer available

3 Turn indicator Available AP8212699

•

  Indicator front right / rear left Piaggio Group · AP8212699 Available

  € 14,99

  Add to cart

4 Turn indicator lens AP8124543 No longer available

• AP8124543 Turn indicator lens
  No longer available

5 Turn indicator lens Available AP8124544

•

  Indicator Glass front, left Piaggio Group · AP8124544 Available

  € 9,61

  Add to cart

6 Turn indicator Front Right Available AP8124540

•

  Indicator front, right Piaggio Group · AP8124540 Available

  € 21,85

  Add to cart

7 Turn indicator Front Left AP8124541 No longer available

• AP8124541 Turn indicator Front Left
  No longer available

8 Taillight wiring harn. AP8212775 No longer available

• AP8212775 Taillight wiring harn.
  No longer available
•

  Wiring harness for tail light, (CHE) Piaggio Group · AP8212937 Available

  € 48,65

  Add to cart

9 Headlight wiring w/harness AP8224148 No longer available

• AP8224148 Headlight wiring w/harness
  No longer available
• AP8224149 Headlight wiring w/harness
  No longer available

10 Front headlight guard Available AP8212841

•

  Bonnet Piaggio Group · AP8212841 · Quantity needed: 2 Available

  € 17,46

  Add to cart

11 Screw (4,2 x 209) Available AP8150270

•

  Oval Head Screw 4,2x20 mm Piaggio Group · AP8150270 · Quantity needed: 4 Available

  € 1,26

  Add to cart

12 Headlight AP8212903 No longer available

• AP8212903 Headlight
  No longer available
• AP82127716 Headlight
  No longer available

13 Rear reflector Available AP8212813

•

  Reflector Piaggio Group · AP8212813 Available

  € 17,28

  Add to cart
• AP8224196 Number-plate light
  No longer available

14 Reflector, orange Available AP8224163

• AP8224163 Reflector, orange Quantity needed: 2


  Reflector for plugging in, round, yellow Piaggio Group · Ap8224163 Available

  € 12,08

  Add to cart


  Reflector for plugging in, round, yellow Piaggio Group · Ap8224163 Available

  € 12,08

  Add to cart


  Reflector for plugging in, round, yellow Piaggio Group · AP8224163 Available

  € 12,08

  Add to cart

15 Screw AP8212934 No longer available

• AP8212934 Screw Quantity needed: 2
  No longer available

16 Window Available AP8224256

•

  Tail light cover Piaggio Group · AP8224256 · Quantity needed: 2 Available

  € 22,17

  Add to cart

17 Taillight assy. AP8224167 No longer available

• AP8224167 Taillight assy.
  No longer available
• AP8224245 Taillight assy.
  No longer available

18 Screw Available AP8224063

•

  Thread Screw 2,9x6,5 mm Piaggio Group · AP8224063 · Quantity needed: 2 Available

  € 1,43

  Add to cart

19 Plate AP8224062 No longer available

• AP8224062 Plate
  No longer available

20 Front turn indicator harness Available AP8212698

•

  Cable for indicators Piaggio Group · AP8212698 Available

  € 26,34

  Add to cart

21 Bulb (P26S 12V 15W) Available 121539

•

  Bulbs Bulb, 12 V, 15 W, P26s Piaggio Group · 121539 Available

  € 6,51

  Add to cart

22 Bulb (BA20D 12V 35/35W) Available 219528

•

  Bulbs Bulb, 12 V, 35/35 W, BA20d Piaggio Group · 219528 Available

  € 10,09

  Add to cart

23 Lamp R10W 12v AP8224390 No longer available

• AP8224390 Lamp R10W 12v
  No longer available

24 Bulb (12V 21/5W) Available 129953

•

  Bulbs Bulb, 12 V, 21/5 W, BAY15d Piaggio Group · 129953 Available

  € 3,73

  Add to cart

25 Bulb (12V 5W T10) Available 2920225

•

  Bulbs Bulb, 12 V, 5 W, wedge base Piaggio Group · 2920225 Available

  € 3,42

  Add to cart
