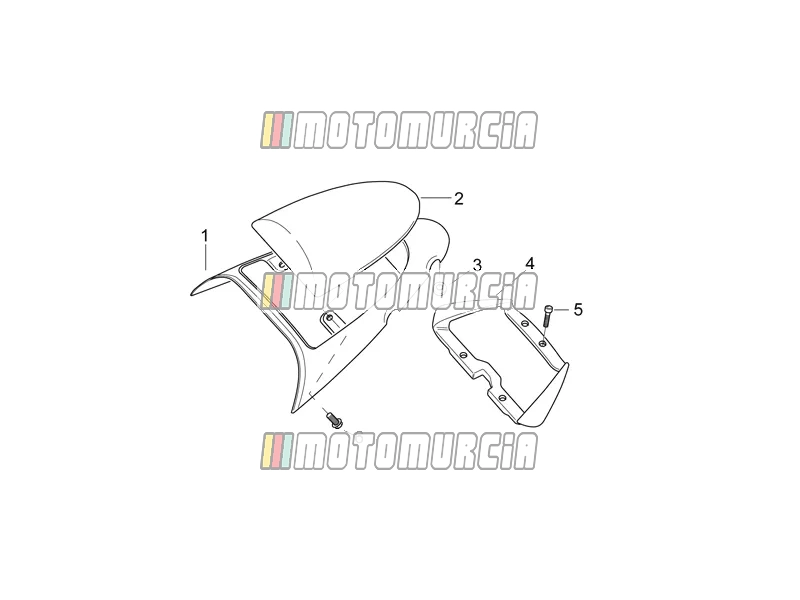

Exploded view — Rear Saddle

‹ Back to model

Aprilia SR 50 AC 2000

Products

1 Saddle cover, red+decal AP8249295 No longer available

AP8249295 Saddle cover, red+decal
- Colour: Cherry Red / Mercury Grey '99
- Year of manufacture: 1999
No longer available
AP8239828 Saddle cover, cyan+dec.
- Colour: Solid Azure / Quartz Grey '98
- Year of manufacture: 1998
No longer available
AP8248820 Saddle cover, cy.blue + dec.
- Colour: Cyber Blue / Silver Grey '99
- Year of manufacture: 1999
No longer available
AP8249931 Saddle cover, el.blue+decal
- Colour: "Electric Blue ""Sport"" 2000-2001"
- Colour: "Electric Blue ""Sport"" 2001"
- Colour: Electric Blue 2000
- Year of manufacture: 2000
- Year of manufacture: 2001
No longer available
AP8238451 Saddle cover, red+decal
- Colour: Cherry Red / 180 Aluminium Grey '97
- Year of manufacture: 1997
No longer available
AP8249545 Saddle cover, e.black+decal
- Colour: Met. Ebony Black 2000
- Year of manufacture: 2000
No longer available
AP8258239 Saddle cover, yellow+decal
- Colour: Lemon Yellow "Sport" 2001
- Colour: Lemon Yellow 2001
- Year of manufacture: 2001
No longer available
AP8239319 Saddle cover, blue+decal
- Colour: Apr.Blue / Met.Grey (M.I. A)- All.180 (M.I. B) '97
- Year of manufacture: 1997
No longer available
AP8249556 Saddle cover, hot red+decal
- Colour: Hot Red 2000
- Year of manufacture: 2000
No longer available
AP8239840 Saddle cover, yellow+decal
- Colour: Chrome Yellow / Quartz Grey '98
- Year of manufacture: 1998
No longer available
AP8249709 Saddle cover, el.blue+decal
- Colour: Electric Blue 2000
- Year of manufacture: 2000
No longer available
AP8248859 Saddle cover, m.wh/b.gr+dec.
- Colour: Moon White / Blade Grey '99
- Year of manufacture: 1999
No longer available
AP8249926 Saddle cover, hot red+decal
- Colour: "Hot Red ""Sport"" 2001"
- Colour: Hot Red "Sport" 2000-2001
- Colour: Hot Red 2000
- Year of manufacture: 2000
- Year of manufacture: 2001
No longer available

2 Rear saddle, yellow AP8229318 No longer available

AP8229318 Rear saddle, yellow
- Year of manufacture: 2000
- Year of manufacture: 2001
- Country: United States of America
No longer available
AP8229321 Rear saddle, hot red
- Injection version (C361M)
- Country: Canada
- Country: United States of America
No longer available
AP8229166 Rear saddle, grey
- Colour: Royal Blue / Straw Yellow "Netscaper" '97
- Year of manufacture: 1997
- Year of manufacture: 1998
No longer available
AP8229192 Rear saddle, black
- Carburettor version (C364M)
No longer available
AP8229319 Rear saddle, blue
- Colour: "Electric Blue ""Sport"" 2000-2001"
- Colour: "Electric Blue ""Sport"" 2001"
- Colour: Electric Blue 2000
- Colour: Way blue 2002
No longer available

3 Side panel support rubber Available AP8144081

- Carburettor version (C364M)
- GT version
- Touring version
Rubber Piaggio Group · AP8144081 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 4,34

4 Pillion grab bar, chr. yellow AP8239841 No longer available

AP8239841 Pillion grab bar, chr. yellow
- Colour: Chrome Yellow / Quartz Grey '98
- Year of manufacture: 1998
No longer available
- Colour: Met. Ebony Black 2000
- Colour: Nik Grey 2000 version USA
- Year of manufacture: 2000
- Year of manufacture: 2001
- Country: United States of America
Grab Handle black Piaggio Group · AP8249455 Backorder · Shipped in 2–4 weeks

€ 114,77
AP8238462 Pillion grab bar, red
- Colour: Cherry Red / 180 Aluminium Grey '97
- Colour: Cherry Red / Mercury Grey '99
- Year of manufacture: 1997
- Year of manufacture: 1999
No longer available
AP8248822 Pillion grab bar, cyber blue
- Colour: Cyber Blue / Silver Grey '99
- Year of manufacture: 1999
No longer available
AP8248860 Pillion grab bar, moon white
- Colour: Moon White / Blade Grey '99
- Year of manufacture: 1999
No longer available
AP8239830 Pillion grab bar, solid azure
- Colour: Solid Azure / Quartz Grey '98
- Year of manufacture: 1998
No longer available
AP8239322 Pillion grab bar, Aprilia blue
- Colour: Apr.Blue / Met.Grey (M.I. A)- All.180 (M.I. B) '97
- Year of manufacture: 1997
No longer available

5 Screw Available AP8150220

- Colour: Hot red 02-03
- Colour: Peltro Grey 02-03
- For engines from V4-G 1000 to V4-G 1339
- Up to engine V4-A 1645
- Year of manufacture: 2002
- Country: Denmark
Screw M6x30 Piaggio Group · AP8150220 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 1,21

6 Screw Available 598839

- Colour: Off Black 2009 (s.t.890773)
- Colour: Off Black 2010 (s.t.895847)
- Country: China
- Country: Japan
- Country: United States of America
Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 1,48
