Exploded view — Electrical System

Products

1 Brake light switch Available 642032

•

  Stop light switch Piaggio Group · 642032 Available · Shipped in 3–5 working days

  € 11,54

  Add to cart

2 Flasher relay Available AP8124235

•

  Indicator Relay Piaggio Group · AP8124235 Available · Shipped in 3–5 working days

  € 26,50

  Add to cart

3 Cable-guide Available AP8220269

•

  Cable Guide Piaggio Group · AP8220269 Available · Shipped in 3–5 working days

  € 3,04

  Add to cart

4 Fuse (7,5A) Available CM225607

•

  Fuse 7,5 A Piaggio Group · CM225607 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 5,11

  Add to cart

5 Relay - starter Available AP8224462

•

  Starting Relay 12 V, 30 A Piaggio Group · AP8224462 Available · Shipped in 3–5 working days

  € 25,36

  Add to cart

6 Rubber fuse box AP8220342 No longer available

• AP8220342 Rubber fuse box
  No longer available

7 Battery 32YTX5LBS No longer available

• 32YTX5LBS Battery
  No longer available

8 Voltage regulator AP8212799 No longer available

• AP8212799 Voltage regulator
  No longer available

  Alternatives from other brands



  Rectifier Regulator KAWASAKI BN 125 A 98-01 Athena · S410250401007 Backorder · Shipped in 2–5 weeks

  € 30,25

  Add to cart



  REGULATOR, 67 3085 GHMparts · ESR085 Backorder · Shipped in 2–5 weeks

  € 47,34

  Add to cart

9 Rear reflector Available AP8112916

•

  Reflector Piaggio Group · AP8112916 Available · Shipped in 3–5 working days

  € 13,38

  Add to cart

10 Horn Available AP8212611

• AP8212611 Horn


  Horn Piaggio Group · 58237R ↻ Replaces AP8212611, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 15,69

  Add to cart

11 CDI unit AP8206470 No longer available

• AP8206470 CDI unit
  No longer available

12 Ignition coil AP8206125 No longer available

• AP8206125 Ignition coil
  No longer available

13 Spark plug cap Backorder AP8206108

•

  Spark Plug Connector Piaggio Group · AP8206108 Backorder · Shipped in 2–4 weeks

  € 46,80

  Add to cart

14 Main wiring harness AP8212612 No longer available

• AP8212612 Main wiring harness
  No longer available

15 Headlight without guard AP8212497 No longer available

• AP8212497 Headlight without guard
  No longer available
• AP8212672 Headlight without guard
  No longer available

16 Taillight assy. AP8212596 No longer available

• AP8212596 Taillight assy.
  No longer available

17 Spark plug rubber AP8206128 No longer available

• AP8206128 Spark plug rubber
  No longer available

18 Starter motor wiring harness AP8212670 No longer available

• AP8212670 Starter motor wiring harness
  No longer available

19 Rubber fuse box Available AP8120754

•

  Fuse Box Piaggio Group · AP8120754 Available · Shipped in 3–5 working days

  € 11,30

  Add to cart

20 Turn indicator lens Backorder AP8212582

•

  Indicator Glass rear, left Piaggio Group · AP8212582 Backorder · Shipped in 2–4 weeks

  € 9,61

  Add to cart

21 Headlight wiring w/harness AP8212605 No longer available

• AP8212605 Headlight wiring w/harness
  No longer available
• AP8212673 Headlight wiring w/harness
  No longer available
• AP8212501 Headlight wiring w/harness
  No longer available

22 Diode Available AP8212382

•

  Diode Piaggio Group · AP8212382 Available · Shipped in 3–5 working days

  € 17,48

  Add to cart

23 Rubber spacer * Available AP8220283

•

  Bracket Piaggio Group · AP8220283 Available · Shipped in 3–5 working days

  € 3,03

  Add to cart

24 Handlebar controls cable AP8212847 No longer available

• AP8212847 Handlebar controls cable
  No longer available

25 Lampholder AP8212465 No longer available

• AP8212465 Lampholder
  No longer available

26 Turn indicator lens AP8212498 No longer available

• AP8212498 Turn indicator lens
  No longer available

27 Turn indicator lens AP8212499 No longer available

• AP8212499 Turn indicator lens
  No longer available

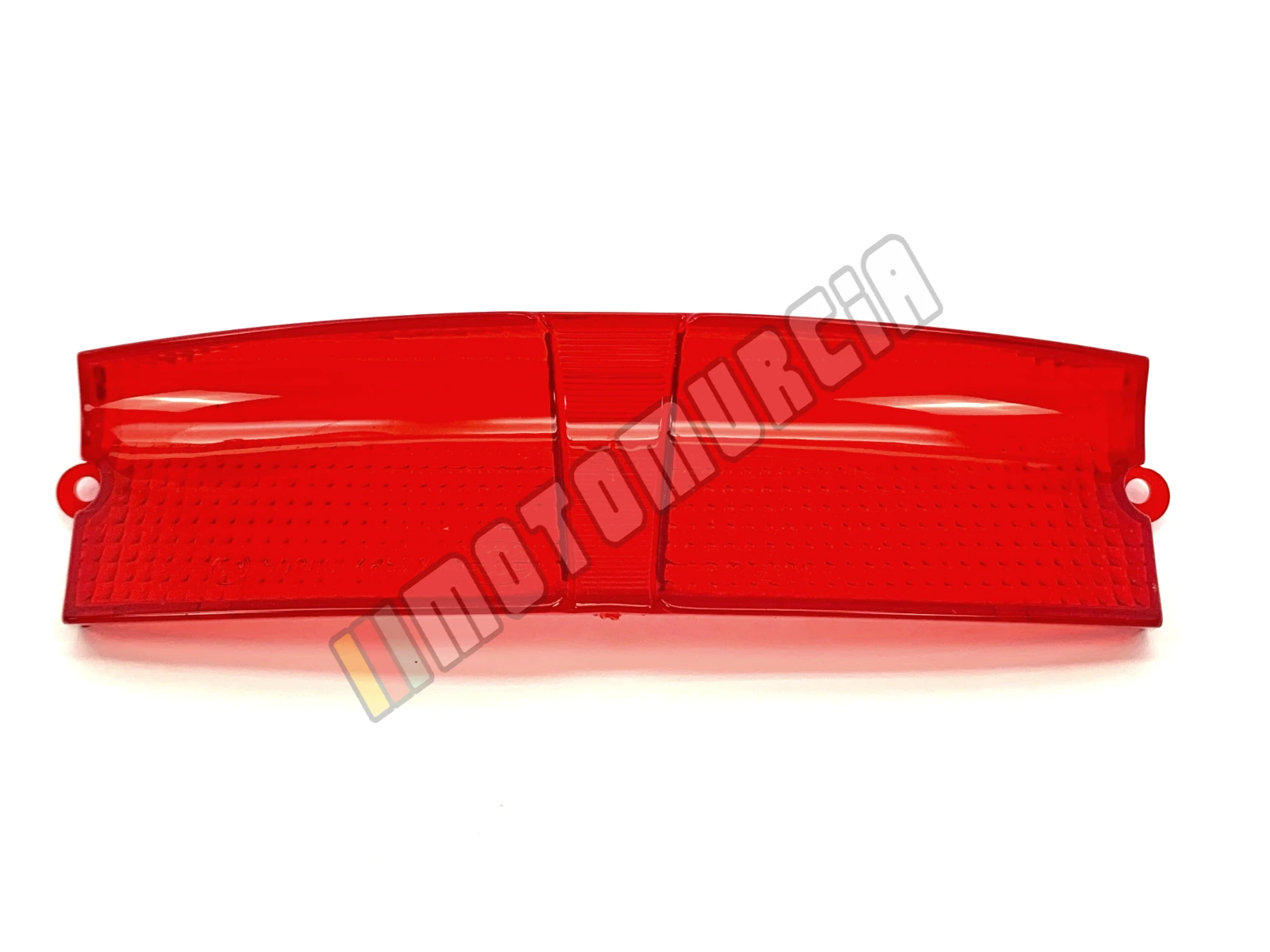

28 Taillight lens Backorder AP8212580

•

  Tail light cover Piaggio Group · AP8212580 Backorder · Shipped in 2–4 weeks

  € 9,98

  Add to cart

29 Turn indicator lens Right AP8212581 No longer available

• AP8212581 Turn indicator lens Right
  No longer available

30 Spacer Available AP8121020

•

  Spacer 6,5x10x19 Piaggio Group · AP8121020 Available · Shipped in 3–5 working days

  € 4,38

  Add to cart

31 Turn indicator lens AP8212592 No longer available

• AP8212592 Turn indicator lens
  No longer available

32 Turn indicator lens AP8212593 No longer available

• AP8212593 Turn indicator lens
  No longer available

33 Taillight wiring harn. AP8212557 No longer available

• AP8212557 Taillight wiring harn.
  No longer available
