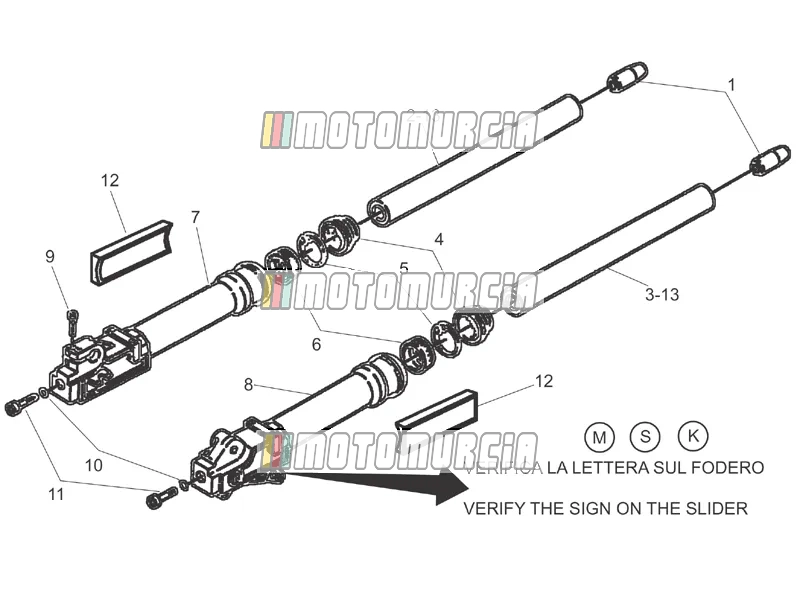

Exploded view — Fork Ii

‹ Back to model
Aprilia SR 50 Di-Tech 2004 Aprilia SR 50 Di-Tech 2004
Fork Ii

Products

1 Stroke limit stop Available AP8223037
  • Plug Piaggio Group · AP8223037 · Quantity needed: 2 Available
    € 5,28
  • Plug Piaggio Group · AP8123701 · Quantity needed: 2 Backorder
    € 19,47
  • AP8203862 Stroke limit stop Quantity needed: 2
    No longer available
2 Fork inner tube Right - S Backorder AP8203787
  • Steering Tube right Piaggio Group · AP8203787 Backorder
    € 35,09
  • AP8203760 RH pipe, complete
    No longer available
3 LH pipe, complete AP8203761 No longer available
  • AP8203761 LH pipe, complete
    No longer available
  • AP8203788 Fork inner tube (LH - S)
    No longer available
4 Fork dust seal Available AP8223040
  • Locking Ring Piaggio Group · AP8223040 · Quantity needed: 2 Available
    € 11,45
  • AP8203992 Dust cover Quantity needed: 2
    No longer available
  • AP8203564 Fork dust seal (M) Quantity needed: 2
    No longer available
5 Stop ring AP8203566 No longer available
  • AP8203566 Stop ring Quantity needed: 2
    No longer available
  • Locking Ring Piaggio Group · AP8203790 · Quantity needed: 2 Available
    € 5,47
  • Locking Ring Piaggio Group · AP8223048 · Quantity needed: 2 Available
    € 3,86
6 Fork oil seal (M) Backorder AP8203565
7 RH sleeve AP8203987 No longer available
  • AP8203987 RH sleeve
    No longer available
  • Front Forks right Piaggio Group · AP8203994 Backorder
    € 81,07
  • Front Forks right Piaggio Group · AP8223043 Backorder
    € 115,19
8 LH sleeve Backorder AP8203995
9 Screw Available AP8223054
  • Screw M6x20 Piaggio Group · AP8223054 Available
    € 2,69
  • Screw M6x20 Piaggio Group · AP8203796 Backorder
    € 13,94
  • AP8203571 Screw
    No longer available
10 Washer gasket (S) Available 856046
  • Washer Piaggio Group · 856046 · Quantity needed: 2 Available
    € 2,40
  • Sealing Disk Piaggio Group · AP8203572 · Quantity needed: 2 Available
    € 2,35
  • Washer Piaggio Group · AP8223052 · Quantity needed: 2 Available
    € 1,43
11 Screw Backorder AP8203795
  • Screw Piaggio Group · AP8203795 · Quantity needed: 2 Backorder
    € 2,73
  • Screw Piaggio Group · AP8223053 · Quantity needed: 2 Available
    € 4,30
  • Screw Piaggio Group · 600123 · Quantity needed: 2 Backorder
    € 1,75
12 Reflector Available AP8224342
  • Reflector Piaggio Group · AP8224342 · Quantity needed: 2 Available
    € 16,31
13 Fork inner tube (K) Available AP8223051
