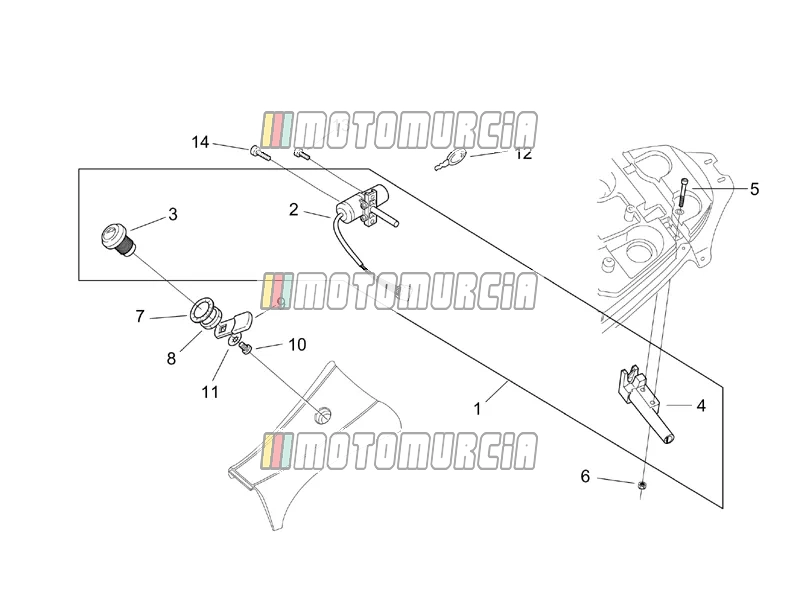

Exploded view — Lock Hardware Kit

Products

1 Lock kit AP8202386 No longer available

• AP8202386 Lock kit
  No longer available

2 Main switch - steering lock Backorder AP8224343

• • Injection version (C361M)


  Steering Lock Piaggio Group · AP8224343 Backorder · Shipped in 2–4 weeks

  € 145,37

  Add to cart

3 Saddle lock Available AP8104609

• • Version with immobilizer


  Lock, for fuel filler flap Piaggio Group · AP8104609 Available · Shipped in 3–5 working days

  € 66,28

  Add to cart

4 Saddle lock Backorder AP8201564

• • Year of manufacture: 1997
  • Year of manufacture: 1998


  Seat Lock Piaggio Group · AP8201564 Backorder · Shipped in 2–4 weeks

  € 87,22

  Add to cart

5 Screw Available AP8152283

•

  Flanged Screw M6x40 Piaggio Group · AP8152283 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

6 Nut Available AP8150430

• • Colour: """GARDA"" Bluevert 2001"
  • Colour: Tuscany Tibet 2003


  Standard nut Piaggio Group · AP8150430 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

7 Washer Available AP8221312

•

  Toothed Lock Washer Piaggio Group · AP8221312 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

8 Nut Available AP8152194

•

  Standard nut Piaggio Group · AP8152194 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

9 Lever Available AP8201620

•

  Lever Piaggio Group · AP8201620 Available · Shipped in 3–5 working days

  € 8,66

  Add to cart

10 Screw Available AP8201749

• • Year of manufacture: 2010


  Oval Head Screw M4x6 Piaggio Group · AP8201749 Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

11 Washer Available AP8201748

•

  Shim Piaggio Group · AP8201748 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

12 Key blank Available AP8104613

• • Carburettor version (C364M)


  Key blank without transponder Piaggio Group · AP8104613 Available · Shipped in 3–5 working days

  € 19,66

  Add to cart

13 Screw Available AP8152140

•

  Shear / Snap Off Screw M6x17 Piaggio Group · AP8152140 Available · Shipped in 3–5 working days

  € 2,63

  Add to cart

14 Screw Available AP8150137

• • Country: Canada
  • Country: China
  • Country: United States of America


  Screw M6x16 Piaggio Group · AP8150137 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart
