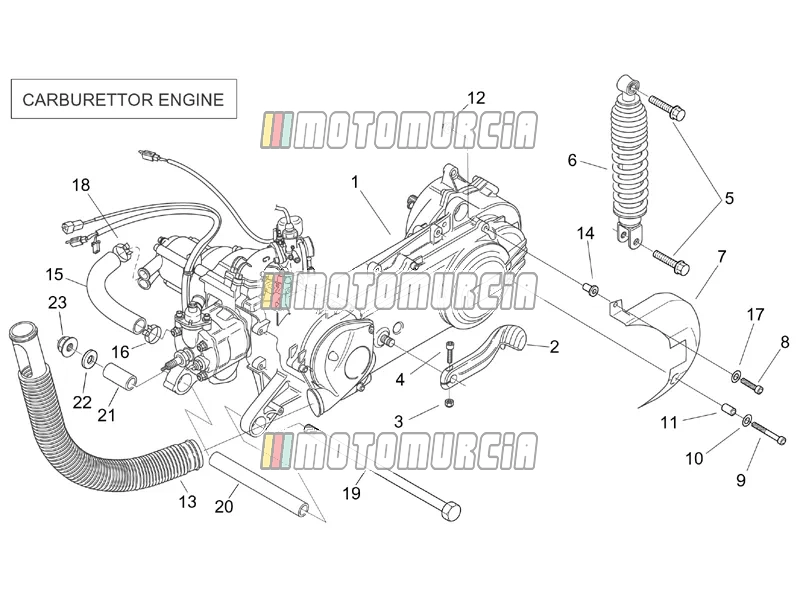

Exploded view — Engine (carburettor)

Products

1 Engine AP8222776 No longer available

• AP8222776 Engine
  • Engine with carburettor
  • Rear drum brake
  No longer available
• AP8222692 Engine
  • Engine with carburettor
  • Rear disc brake
  No longer available
• AP8222724 Engine
  • Engine with carburettor
  • Rear disc brake
  • Country: Switzerland
  No longer available

2 Kick starter lever AP8235089 No longer available

• AP8235089 Kick starter lever
  No longer available

3 Nut Available AP8150026

• • ABS version
  • Engine with carburettor
  • Standard version
  • Year of manufacture: 2002
  • Year of manufacture: 2003
  • Country: Japan
  • Country: United States of America


  Standard nut Piaggio Group · AP8150026 Available · Shipped in 3–5 working days

  € 1,25

  Add to cart

4 Screw Available AP8152282

• • Country: Canada
  • Country: United States of America


  Flanged Screw M6x35 Piaggio Group · AP8152282 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

5 Screw Available AP8152318

•

  Flanged Screw M10x35 Piaggio Group · AP8152318 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,93

  Add to cart

6 Shock absorber-yellow ring AP8795049 No longer available

• AP8795049 Shock absorber-yellow ring
  • Accessories
  No longer available
• AP8223024 Rear shock absorber
  • Colour: Dust Grey 2002
  • Colour: Tuono 2003
  • "DITECH" engine with direct fuel injection
  • Engine with carburettor
  • Year of manufacture: 2002
  • Year of manufacture: 2003
  No longer available

7 Variator cover, black Backorder AP8249880

• • Engine with carburettor


  Cover, black Piaggio Group · AP8249880 Backorder · Shipped in 2–4 weeks

  € 17,75

  Add to cart

8 Screw Available AP8150165

• • Country: United States of America


  Screw M6x25 Piaggio Group · AP8150165 Available · Shipped in 3–5 working days

  € 1,21

  Add to cart

9 Screw Available AP8150403

• • Engine with carburettor
  • Year of manufacture: 1996


  Screw M6x45 Piaggio Group · AP8150403 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart

10 Washer Available AP8150179

• • Colour: Multimedia platform


  Shim 6,6x18 mm Piaggio Group · AP8150179 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

11 Spacer Available AP8121020

• • Engine with carburettor
  • Country: China
  • Country: United States of America


  Spacer 6,5x10x19 Piaggio Group · AP8121020 Available · Shipped in 3–5 working days

  € 4,38

  Add to cart

12 Nut Available AP8152299

• • Colour: Limited Edition green 2013
  • Colour: Public Authorities China
  • Colour: Tuscany Tibet 2003


  Collar nut M6, self-locking Piaggio Group · AP8152299 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

13 Variator air intake Backorder AP8220562

• • "DITECH" engine with direct fuel injection
  • Engine with carburettor
  • Injection version (C361M)


  Inlet pipe Piaggio Group · AP8220562 Backorder · Shipped in 2–4 weeks

  € 33,77

  Add to cart

14 Spacer Available AP8121728

•

  Sleeve Piaggio Group · AP8121728 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

15 Pump-cylinder hose AP3LAA000010 No longer available

• AP3LAA000010 Pump-cylinder hose
  • "DITECH" engine with direct fuel injection
  • Engine with carburettor
  No longer available

16 Clamp Available CM001915

•

  Clamp Piaggio Group · CM001915 Available · Shipped in 3–5 working days

  € 2,27

  Add to cart

17 Washer Available AP8150014

• • Colour: Hot red 02-03
  • Colour: Peltro Grey 02-03
  • Year of manufacture: 2002


  Shim Piaggio Group · AP8150014 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

18 Clamp AP2FDN000176 No longer available

• AP2FDN000176 Clamp
  • "DITECH" engine with direct fuel injection
  • Engine with carburettor
  No longer available

19 Pin M12 Backorder AP8221307

• • "DITECH" engine with direct fuel injection
  • Engine with carburettor
  • Standard version


  Screw Piaggio Group · AP8221307 Backorder · Shipped in 2–4 weeks

  € 17,48

  Add to cart

20 Spacer 13x18x132 Available AP8221314

• • Engine with carburettor


  Spacer length: 13,2cm, Ø 13,00 mm Piaggio Group · AP8221314 Available · Shipped in 3–5 working days

  € 19,90

  Add to cart

21 Spacer 13x18x23 AP8221313 No longer available

• AP8221313 Spacer 13x18x23
  • Engine with carburettor
  No longer available

22 2 - Washer Available AP8152018

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Washer 12,2x22x2 mm Piaggio Group · AP8152018 Available · Shipped in 3–5 working days

  € 10,36

  Add to cart

23 Nut Available AP8150432

• • "DITECH" engine with direct fuel injection
  • Engine with carburettor
  • Travel Pack


  Standard nut Piaggio Group · AP8150432 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart
