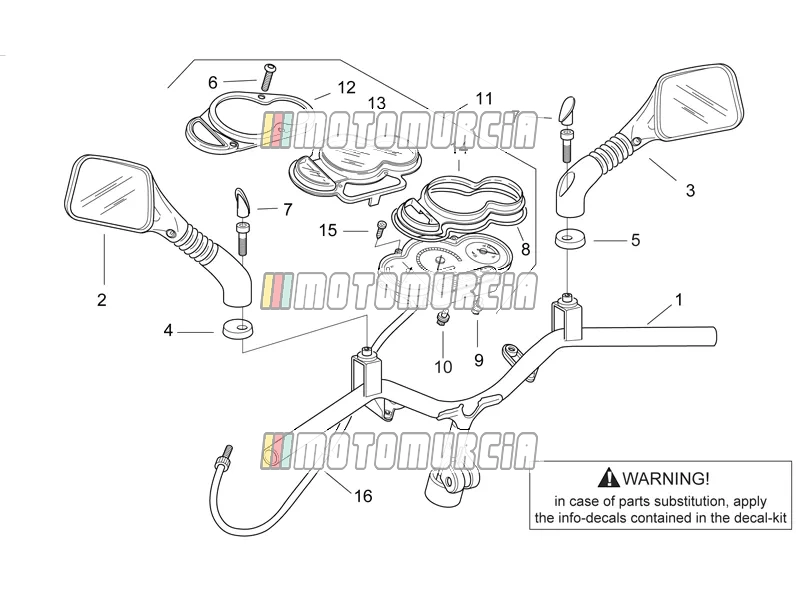

Exploded view — Handlebar - Dashboard

Products

1 Handlebar Backorder AP8218210

•

  Handlebar Piaggio Group · AP8218210 Backorder

  € 309,69

  Add to cart

2 Mirror left AP8201976 No longer available

• AP8201976 Mirror left
  No longer available

3 Mirror right Available AP8201975

•

  Mirror, right, Typ III E9 010134 L E13 000007 Piaggio Group · AP8201975 Available

  € 40,58

  Add to cart

4 LH mirror rubber Available AP8220454

•

  Mirror rubber, left Piaggio Group · AP8220454 Available

  € 4,28

  Add to cart

5 RH mirror rubber AP8220453 No longer available

• AP8220453 RH mirror rubber
  No longer available

6 Screw Available AP8221242

•

  Thread Screw 3,5x20 mm Piaggio Group · AP8221242 · Quantity needed: 4 Available

  € 1,44

  Add to cart

7 RH + LH rearview mirror plug Available AP8202071

• AP8202071 RH + LH rearview mirror plug Quantity needed: 2


  Plug, für Spiegel Piaggio Group · AP8202071 Available

  € 9,17

  Add to cart


  Plug, für Spiegel Piaggio Group · AP8202071 Available

  € 9,17

  Add to cart
• AP8201818 RH + LH rearview mirror plug Quantity needed: 2
  No longer available

8 Dashboard lens seal AP8220555 No longer available

• AP8220555 Dashboard lens seal
  No longer available

9 Lampholder, complete (12V 1,2W) Available AP8212407

•

  Bulbs Festoon with Socket, 12 V, 1,2 W Piaggio Group · AP8212407 · Quantity needed: 5 Available

  € 15,96

  Add to cart

10 Lampholder, complete Available AP8212408

•

  Bulbs Festoon with Socket, 12 V, 2 W Piaggio Group · AP8212408 · Quantity needed: 2 Available

  € 17,27

  Add to cart

11 Dashboard AP8224131 No longer available

• AP8224131 Dashboard
  No longer available
• AP8212900 Dashboard complete -exp-
  No longer available
• AP8212780 Dashboard
  No longer available

12 Fascia panel w/out lenses AP8212881 No longer available

• AP8212881 Fascia panel w/out lenses
  No longer available

13 Dashboard lens AP8212873 No longer available

• AP8212873 Dashboard lens
  No longer available

14 Lighting shield, red AP8212929 No longer available

• AP8212929 Lighting shield, red
  No longer available

15 Screw Available AP8150421

•

  Thread Screw 2,9x12 mm, stainless steel Piaggio Group · AP8150421 · Quantity needed: 4 Available

  € 2,18

  Add to cart

16 Speedometer cable AP8214163 No longer available

• AP8214163 Speedometer cable
  No longer available
