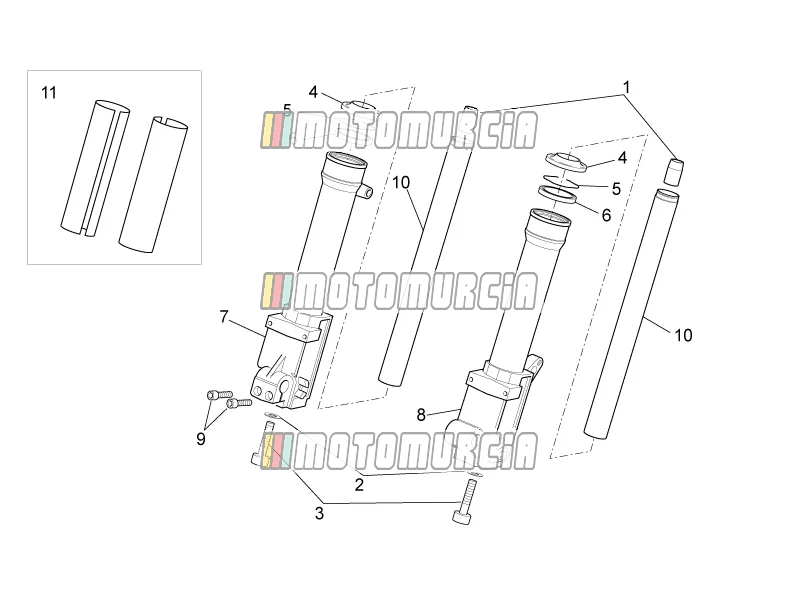

Exploded view — Front Fork Iii

Products

1 Stroke limit stop Available AP8223037

•

  Plug Piaggio Group · AP8223037 · Quantity needed: 2 Available

  € 5,28

  Add to cart

2 Washer Available AP8223052

•

  Washer Piaggio Group · AP8223052 · Quantity needed: 2 Available

  € 1,43

  Add to cart

3 Screw Available AP8223053

•

  Screw Piaggio Group · AP8223053 · Quantity needed: 2 Available

  € 4,30

  Add to cart

4 Fork dust seal Available AP8223040

•

  Locking Ring Piaggio Group · AP8223040 · Quantity needed: 2 Available

  € 11,45

  Add to cart

5 Seeger Available AP8223048

•

  Locking Ring Piaggio Group · AP8223048 · Quantity needed: 2 Available

  € 3,86

  Add to cart

6 Fork oil seal Available AP8223047

•

  Oil seal 30x42x11 mm Piaggio Group · AP8223047 · Quantity needed: 2 Available

  € 27,14

  Add to cart

7 Fork tube Right Backorder AP8223043

•

  Front Forks right Piaggio Group · AP8223043 Backorder

  € 115,19

  Add to cart

8 Fork tube Left Available AP8223044

•

  Front Forks left Piaggio Group · AP8223044 Available

  € 115,19

  Add to cart

9 Screw Available AP8223054

•

  Screw M6x20 Piaggio Group · AP8223054 · Quantity needed: 2 Available

  € 2,69

  Add to cart

10 Fork inner tube (K) Available AP8223051

•

  Front Forks Ø 30,00 mm Piaggio Group · AP8223051 · Quantity needed: 2 Available

  € 320,37

  Add to cart

11 Front fork decal Available AP8277579

•

  Decal Piaggio Group · AP8277579 · Quantity needed: 2 Available

  € 14,60

  Add to cart
