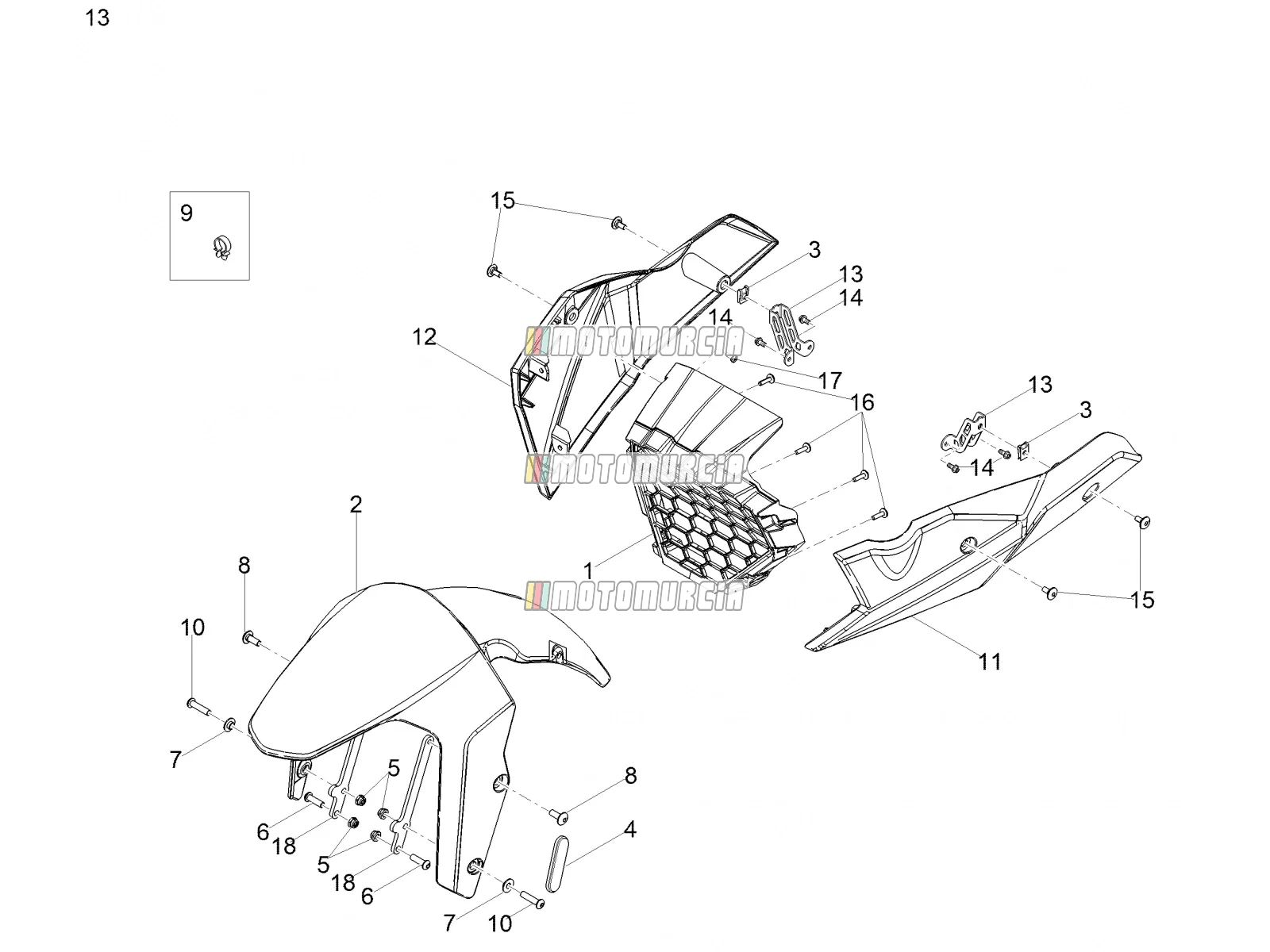

Exploded view — Front Mudguard-pillar

‹ Back to model
Aprilia Tuono 125 2020 Aprilia Tuono 125 2020
Front Mudguard-pillar

Products

1 Pillar Available 2B003676
2 Front mudguard, black Available 897700
3 Clip nuts (M5) Available AP8102375
  • Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available
    € 2,47
4 Reflector, amber Available AP8224623
  • Rear light Piaggio Group · AP8224623 · Quantity needed: 2 Available
    € 16,38
5 Nut Available AP8150430
  • Standard nut Piaggio Group · AP8150430 · Quantity needed: 2 Available
    € 1,48
6 Screw Available AP8152137
  • Screw M6x20 Piaggio Group · AP8152137 · Quantity needed: 2 Available
    € 2,63
7 Spacer Available AP8121032
  • Sleeve Piaggio Group · AP8121032 · Quantity needed: 2 Available
    € 4,36
8 Screw Available 00H01501701
  • Screw Piaggio Group · 00H01501701 · Quantity needed: 2 Available
    € 5,83
9 Elastic spring Available 231590
  • Clip Piaggio Group · 231590 · Quantity needed: 2 Available
    € 0,99
10 Screw Available 00H01503701
  • Screw Piaggio Group · 00H01503701 · Quantity needed: 2 Available
    € 5,83
11 LH lower fairing Available 2B003675
  • Fairing, left Piaggio Group · 2B003675 Available
    € 32,89
12 RH lower fairing Available 2B003674
13 Fairing support Available 899071
14 Screw Available AP8152272
  • Flanged Screw M5x12 Piaggio Group · AP8152272 · Quantity needed: 4 Available
    € 2,18
15 Screw Available AP8150500
  • Screw M5x9 Piaggio Group · AP8150500 · Quantity needed: 4 Available
    € 2,47
16 Screw Available 270793
  • Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 4 Available
    € 0,99
17 Screw Available AP8150444
18 Front mudguard support Available 867258
