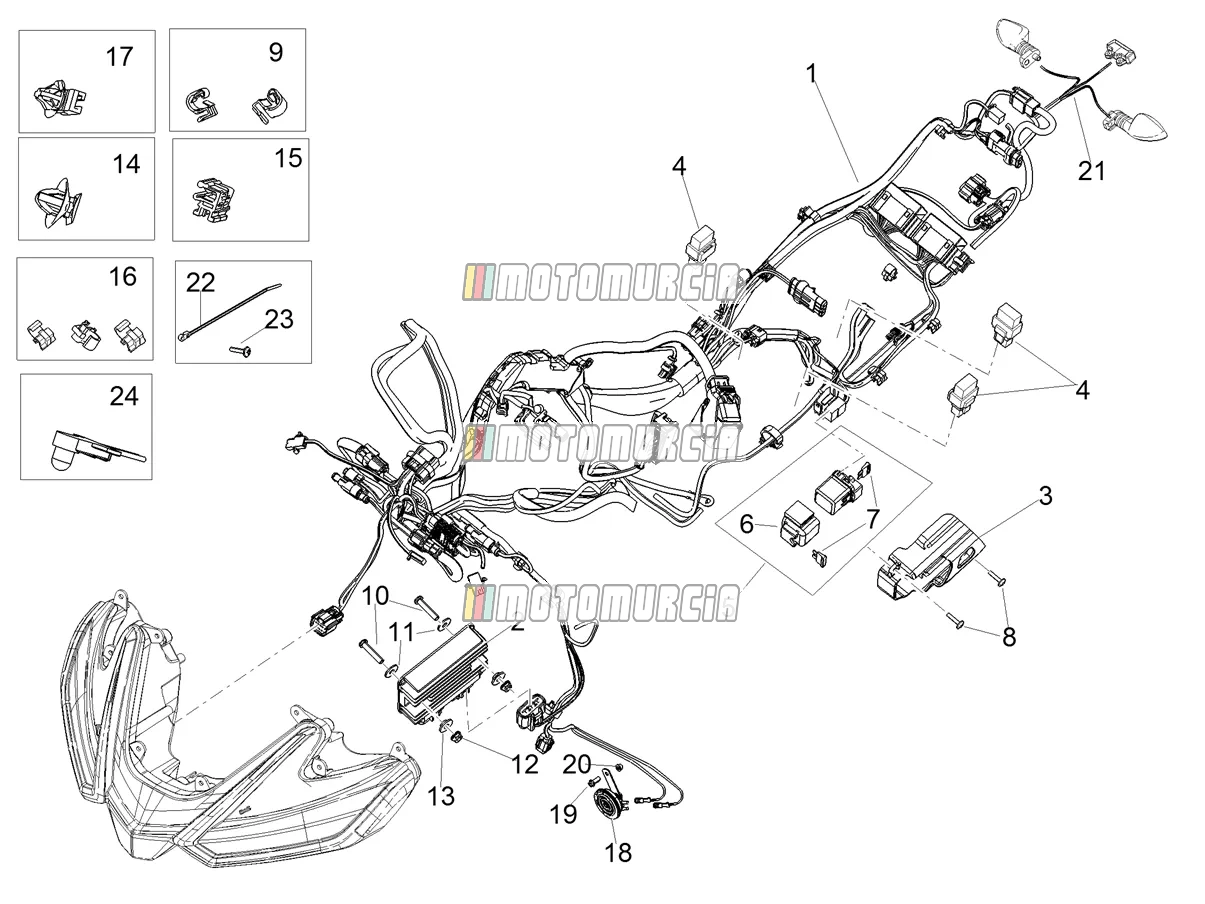

Exploded view — Front Electrical System
‹ Back to model
Aprilia Tuono 660 2023
Products
1 Main wiring harness Backorder
-
Wiring harness Piaggio Group · 2D000680 Backorder€ 693,71
2 Voltage regulator Available
-
Regulator Piaggio Group · 1A012332 Available€ 192,47
3 Starter device cover Backorder
-
Lid Piaggio Group · 2B006603 Backorder€ 7,14
4 Relay - starter Available
-
Starting Relay 12 V, 30 A Piaggio Group · AP8224462 · Quantity needed: 3 Available€ 25,36
5 Relay - starter Available
-
Starting Relay Piaggio Group · 1D001697R Available€ 62,99
6 Relay - starter Available
-
Starting Relay Piaggio Group · 1D001697R Available€ 62,99
7 Fuse 30A Available
-
Fuse 30 A Piaggio Group · CM225730 · Quantity needed: 2 Available€ 5,11
8 Screw Available
-
Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 2 Available€ 1,69
9 Clamp Available
-
Clamp Piaggio Group · CM013201 Available€ 1,32
10 Screw (M6x30) Available
-
Screw M6x30 Piaggio Group · AP8152128 · Quantity needed: 2 Available€ 2,18
11 Washer Available
-
Shim 6,6x18 mm Piaggio Group · AP8150179 · Quantity needed: 2 Available€ 1,48
12 Nut Available
-
Collar nut M6, self-locking Piaggio Group · AP8152299 Available€ 2,18
13 Spacer Available
-
Sleeve Piaggio Group · AP8121075 · Quantity needed: 2 Available€ 2,35
14 Instrument support Available
-
Clip Piaggio Group · 890760 Available€ 18,14
15 Connecting Available
-
Clip Piaggio Group · 2D000348 Available€ 1,38
16 4 - Sheet edge spring Available
-
Clamp Piaggio Group · CM013203 Available€ 3,18
17 Clamp Available
-
Clip Piaggio Group · 1D000129 Available€ 2,27
18 Horn Available
-
Horn Piaggio Group · 863339 Available€ 34,94
19 Screw Available
-
Flanged Screw M8x16 Piaggio Group · AP8152285 Available€ 2,18
20 Nut Available
-
Standard nut M8 Piaggio Group · AP8152300 Available€ 2,35
21 Plate light wiring Available
-
Wiring harness for tail light Piaggio Group · 2D000627 Available€ 35,48
22 Hose clamp Backorder
-
Cable Ties Piaggio Group · 2D000676 Backorder€ 4,95
23 Screw Available
-
Screw M5x20 Piaggio Group · AP8152329 Available€ 2,18
24 Air temp. Sensor Available
-
Air temperature probe Piaggio Group · AP8124936 Available€ 90,59
