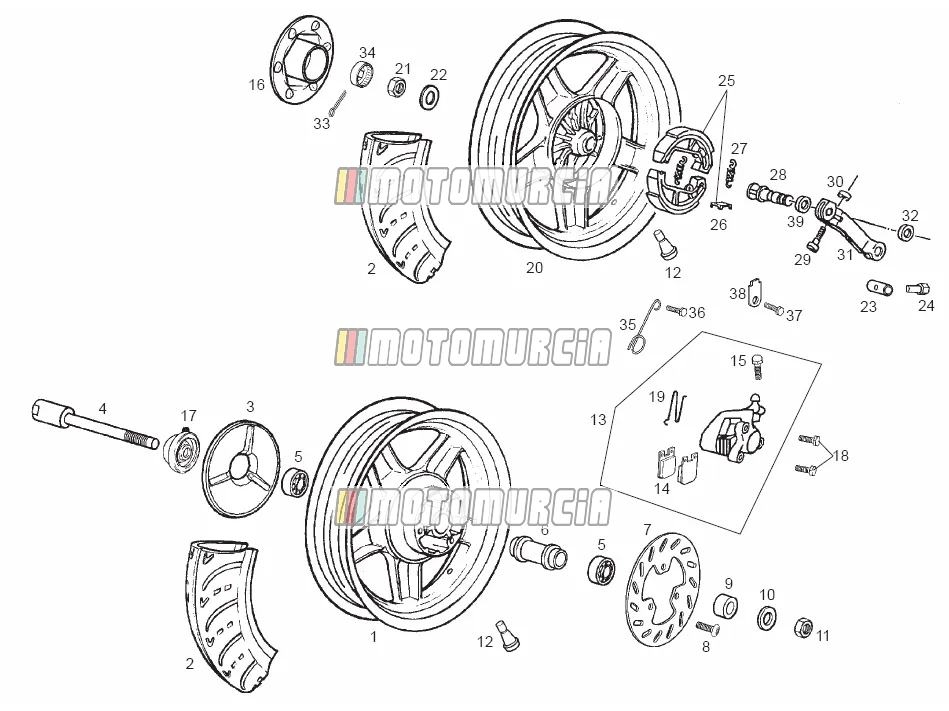

Exploded view — Wheels

Products

1 FRONT WHEEL ASSEMBLY 00G01209955 No longer available

• 00G01209955 FRONT WHEEL ASSEMBLY
  No longer available

2 TYRE 00G01212111 No longer available

• 00G01212111 TYRE
  No longer available

3 Wheel hub cap 00F01201121 No longer available

• 00F01201121 Wheel hub cap
  No longer available

4 Front wheel axle Front Backorder 00G01201271

•

  Wheel Axle front Piaggio Group · 00G01201271 Backorder

  € 30,25

  Add to cart

5 Bearing Available 847016

•

  Ball bearing 6201 2RSH C3, 12x32x10 mm Piaggio Group · 847016 Available

  € 11,40

  Add to cart

6 FR BEARING DISTANCE BUSH ASSY 00G01200031 No longer available

• 00G01200031 FR BEARING DISTANCE BUSH ASSY
  No longer available

7 Brake disc Available 00G01202021

•

  Brake Disk front Piaggio Group · 00G01202021 Available

  € 149,46

  Add to cart

8 Brake disc fixing screw Available 00H02401282

•

  Screw Piaggio Group · 00H02401282 Available

  € 2,93

  Add to cart

9 SPACER, REAR WHEEL DISC SIDE Available 00H01301291

•

  Spacer Piaggio Group · 00H01301291 Available

  € 3,17

  Add to cart

10 50 - Washer Available 709037

•

  Washer 12,5x20x2 mm Piaggio Group · 709037 Available

  € 0,99

  Add to cart

11 Nut 00232120032 No longer available

• 00232120032 Nut
  No longer available

12 Tubeless tyre valve Available 270991

•

  Tyre valves Piaggio Group · 270991 Available

  € 6,80

  Add to cart

13 BRAKE CALIPER 00G01202195 No longer available

• 00G01202195 BRAKE CALIPER
  No longer available
•

  Brake Caliper black, front Piaggio Group · 00G01202191 Available

  € 338,80

  Add to cart

14 Brake pads Available 00G04700141

•

  Brake pad set Piaggio Group · 00G04700141 Available

  € 40,85

  Add to cart

15 Bleed valve Available 864123

•

  Bleeder Connection Piaggio Group · 864123 Available

  € 59,57

  Add to cart

16 Wheel hub cap 00G01301161 No longer available

• 00G01301161 Wheel hub cap
  No longer available

17 Gear cpl. Available 00G01608051

•

  Speedo drive Piaggio Group · 00G01608051 Available

  € 30,25

  Add to cart

18 Screw 00006083000 No longer available

• 00006083000 Screw
  No longer available

19 Spring Available 00H01301831

•

  Split Pin Piaggio Group · 00H01301831 Available

  € 8,05

  Add to cart

20 REAR WHEEL 00G01308353 No longer available

• 00G01308353 REAR WHEEL
  No longer available

21 M16 Backorder 00232160021

•

  Standard nut M16 Piaggio Group · 00232160021 Backorder

  € 2,95

  Add to cart

22 Washer 00G01303191 No longer available

• 00G01303191 Washer
  No longer available

23 Pin Available 00003111110

•

  Pin Piaggio Group · 00003111110 Available

  € 2,08

  Add to cart

24 Wing bolt 00G01100121 No longer available

• 00G01100121 Wing bolt
  No longer available

25 Brake shoe Available 82907R

•

  Brake shoe set Piaggio Group · 82907R Available

  € 24,10

  Add to cart

26 Plate Available 266724

•

  Plate Piaggio Group · 266724 Available

  € 36,11

  Add to cart

27 Brake shoes return spring Available 647384

•

  Brake shoe spring Piaggio Group · 647384 Available

  € 2,02

  Add to cart

28 Rear brake cam Available B014502

•

  Brake cam Piaggio Group · B014502 Available

  € 54,72

  Add to cart

29 Screw Available B011784

•

  Screw Piaggio Group · B011784 Available

  € 2,60

  Add to cart

30 Nut Available 828862

•

  Square nut Piaggio Group · 828862 Available

  € 2,31

  Add to cart

31 Rear brake lever 560796 No longer available

• 560796 Rear brake lever
  No longer available

32 Gasket ring Available 273419

•

  Oil seal Piaggio Group · 273419 Available

  € 1,82

  Add to cart

33 Split pin Available 00702009321

•

  Split Pin Piaggio Group · 00702009321 Available

  € 1,39

  Add to cart

34 Nut hold cap Available 1C004746

•

  Covering Cap Piaggio Group · 1C004746 Available

  € 3,94

  Add to cart

35 Spring 00G01900101 No longer available

• 00G01900101 Spring
  No longer available

36 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 Available

  € 1,48

  Add to cart

37 Plate 00G05801101 No longer available

• 00G05801101 Plate
  No longer available

38 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 Available

  € 1,48

  Add to cart

39 Snap ring Backorder 242364

•

  Snap-in Ring Piaggio Group · 242364 Backorder

  € 2,70

  Add to cart
