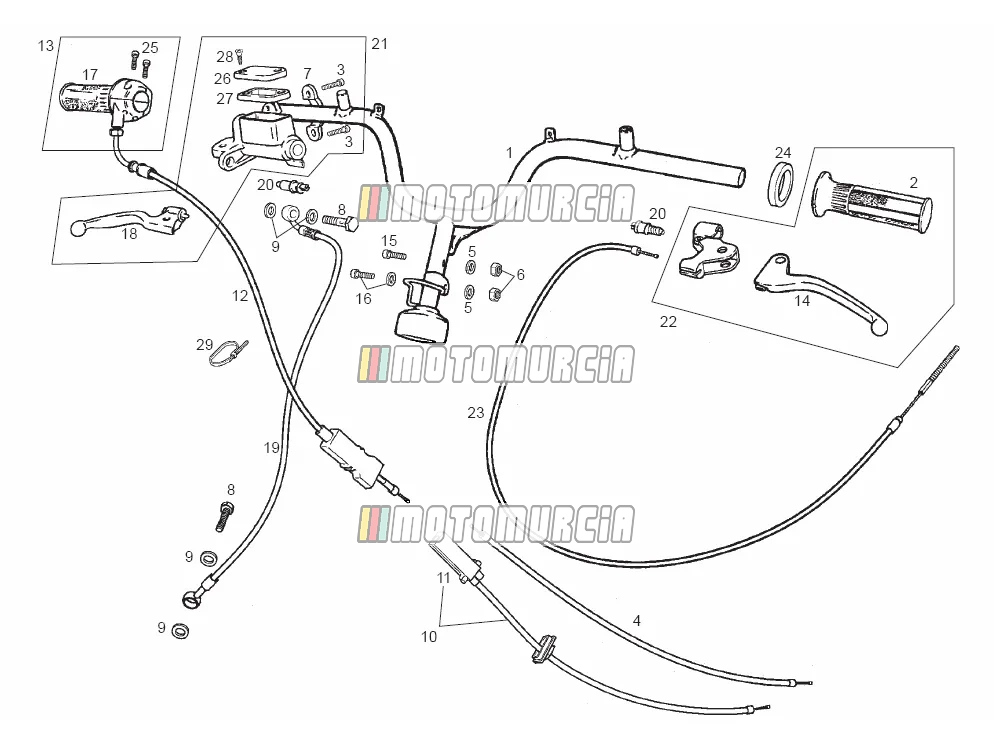

Exploded view — Handlebar - Controls

Products

1 Handlebar 00G00907011A No longer available

• 00G00907011A Handlebar
  No longer available

2 Throttle grip Available 00F00930071

•

  Rubber Grip left Piaggio Group · 00F00930071 Available

  € 12,22

  Add to cart

3 Screw Backorder 00004061600

•

  Screw M6x16 Piaggio Group · 00004061600 Backorder

  € 2,04

  Add to cart

4 Doub. carb. trans. Available 583334

•

  Carburettor cable Piaggio Group · 583334 Available

  € 33,61

  Add to cart

5 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available

  € 1,88

  Add to cart

6 Nut Backorder 00000023080

•

  Standard nut M8 Piaggio Group · 00000023080 Backorder

  € 1,44

  Add to cart

7 U-bolt Backorder 00D02100901

•

  Handlebar clamp bracket AJP Industrial Piaggio Group · 00D02100901 Backorder

  € 29,22

  Add to cart

8 Oil pipe screw Available 862494

•

  Hollow screw Piaggio Group · 862494 Available

  € 9,33

  Add to cart

9 Washer gasket Available 867238

•

  Shim Piaggio Group · 867238 Available

  € 4,85

  Add to cart

10 REAR THROTTLE CABLE/SLEEVE S/A 00G00900401 No longer available

• 00G00900401 REAR THROTTLE CABLE/SLEEVE S/A
  No longer available

11 THROTTLE CABLE CONNECTOR BOX Backorder 00G00901861

•

  Cable splitter Piaggio Group · 00G00901861 Backorder

  € 18,60

  Add to cart

12 Throttle cable (Upper) 00G00900181 No longer available

• 00G00900181 Throttle cable (Upper)
  No longer available

13 THROTTLE TWIST GRIP Backorder 00G00906081

•

  Throttle grip Piaggio Group · 00G00906081 Backorder

  € 16,73

  Add to cart

14 Brake lever Backorder 00G00900291

•

  Brake Lever left Piaggio Group · 00G00900291 Backorder

  € 34,71

  Add to cart

15 Screw 00002084011 No longer available

• 00002084011 Screw
  No longer available

16 ALLEN SCREW M8X45 00H05900441 No longer available

• 00H05900441 ALLEN SCREW M8X45
  No longer available

17 Throttle grip 00F00930091 No longer available

• 00F00930091 Throttle grip
  No longer available

18 Brake lever 00F00902291 No longer available

• 00F00902291 Brake lever
  No longer available

19 FRONT BRAKE FLUID TUBE ASSY 00G00905751 No longer available

• 00G00905751 FRONT BRAKE FLUID TUBE ASSY
  No longer available

20 Brake light switch Available 00D01000701

•

  Stop light switch, J.Juan Piaggio Group · 00D01000701 Available

  € 5,23

  Add to cart

21 Brake hydraulic pump 00G02102083 No longer available

• 00G02102083 Brake hydraulic pump
  No longer available
•

  Master brake cylinder right Piaggio Group · 00G02102081 Available

  € 257,19

  Add to cart

22 LEFT LEVER BRACKET Backorder 00G02106611

•

  Brake Handle left Piaggio Group · 00G02106611 Backorder

  € 34,78

  Add to cart

23 REAR BRAKE CABLE/SLEEVE ASSY 00G00904431 No longer available

• 00G00904431 REAR BRAKE CABLE/SLEEVE ASSY
  No longer available

24 Spacer 00G05800011 No longer available

• 00G05800011 Spacer
  No longer available

25 THROTTLE GRIP CAP SECUR SCREW 00F00901151 No longer available

• 00F00901151 THROTTLE GRIP CAP SECUR SCREW
  No longer available

26 Brake fluid reservoir cover 00H02100191 No longer available

• 00H02100191 Brake fluid reservoir cover
  No longer available

27 BRAKE FLUID RESERVOIR CAP SEAL Available 00H02100861

•

  Gasket Piaggio Group · 00H02100861 Available

  € 17,74

  Add to cart

28 Screw 4M80X12 00014041200 No longer available

• 00014041200 Screw 4M80X12
  No longer available

29 Hose clamp 290X4,8 Backorder 00F00900531

•

  Clamp 290x4,8 mm Piaggio Group · 00F00900531 Backorder

  € 5,60

  Add to cart
