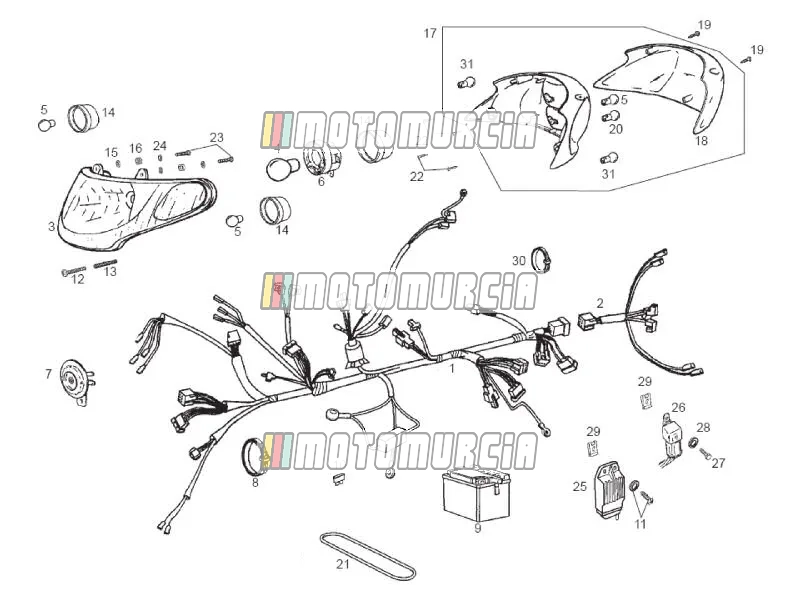

Exploded view — Electrical System Components

‹ Back to model
Derbi Atlantis 50 2T Bullet 2011 Derbi Atlantis 50 2T Bullet 2011
Electrical System Components

Products

1 Main wiring harness Backorder 00G01025301
  • Wiring harness Piaggio Group · 00G01025301 Backorder
    € 65,34
2 Main wiring harness 00G05703051 No longer available
  • 00G05703051 Main wiring harness
    No longer available
3 Headlight 00G01018011 No longer available
  • 00G01018011 Headlight
    No longer available
4 Bulb 102111 No longer available
  • 102111 Bulb
    No longer available
5 Bulb (12V 10W BAU15S) Available 584332
6 Bulb holder Available AP8224609
7 Horn 00F01001311 No longer available
  • 00F01001311 Horn
    No longer available
8 Hose clamp Available 00D00900531
  • Clamp Piaggio Group · 00D00900531 Available
    € 1,65
9 Battery 32YTX5LBS No longer available
  • 32YTX5LBS Battery
    No longer available
10 Fuse 4a 00H01003911 No longer available
  • 00H01003911 Fuse 4a
    No longer available
11 Screw 00D05900091 No longer available
  • 00D05900091 Screw
    No longer available
12 Screw Available 00012044000
  • Screw Piaggio Group · 00012044000 Available
    € 1,33
13 Adjusting spring Available 00G02302501
  • Spring Piaggio Group · 00G02302501 Available
    € 2,04
14 Protection Backorder 00G05701141
  • Bonnet Piaggio Group · 00G05701141 Backorder
    € 11,18
15 MACHINED FLAT WASHER, D.4,3. 00038004000 No longer available
  • 00038004000 MACHINED FLAT WASHER, D.4,3.
    No longer available
16 Damper Available 00D01500021
  • Rubber Piaggio Group · 00D01500021 Available
    € 10,61
17 Taillight assy. 00G01008321 No longer available
  • 00G01008321 Taillight assy.
    No longer available
18 Rear tyre 00G01007341 No longer available
  • 00G01007341 Rear tyre
    No longer available
19 Screw Backorder 00011031600
20 Bulb (BA15S 12V 5W) Available 181747
21 O-ring Available 00G01802361
  • Gasket Piaggio Group · 00G01802361 Available
    € 2,89
22 Screw Available 00011031401
23 Screw Available 00011031801
24 Washer 8,4 00040008000 No longer available
  • 00040008000 Washer 8,4
    No longer available
25 Voltage regulator Available 58096R
26 Relay - starter Available 58115R
27 Screw 6M100X12 Backorder 00000004612
  • Screw M6 Piaggio Group · 00000004612 Backorder
    € 1,59
28 Washer Available 00000031060
29 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 Available
    € 2,04
30 Hose clamp 290X4,8 Backorder 00F00900531
31 Bulb (12V 10W BA15s) Available AP8127489
