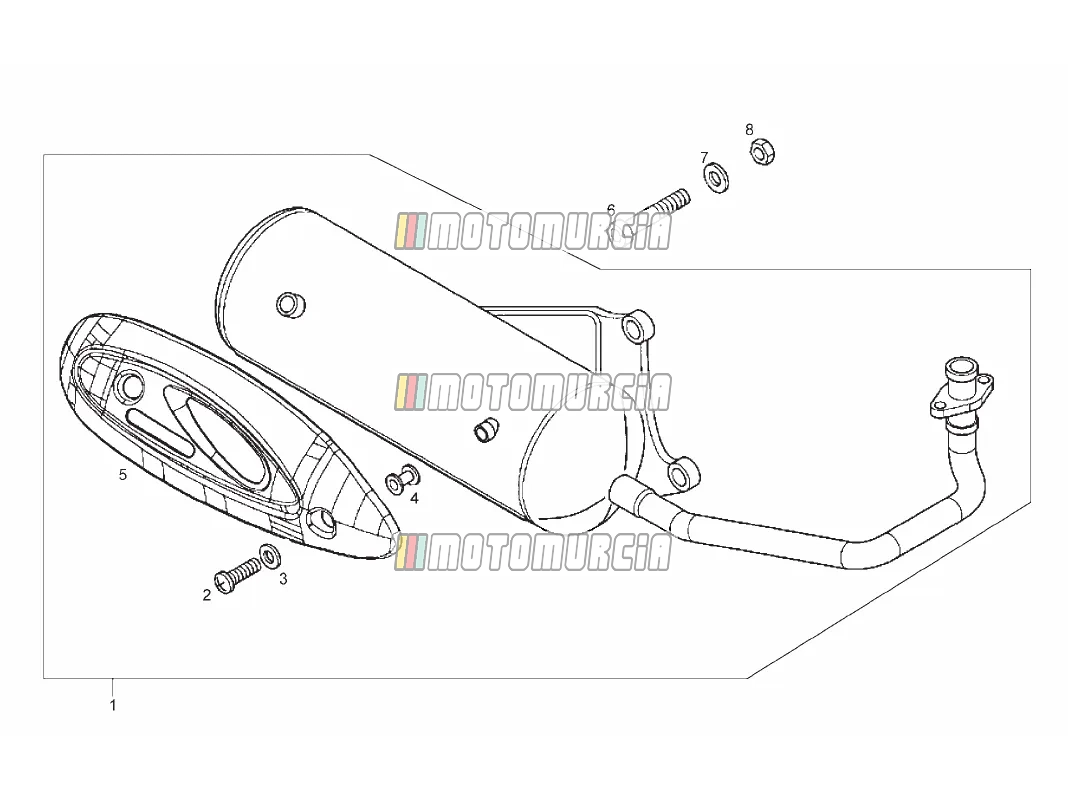

Exploded view — Exhaust Unit

Products

1 Exhaust Available 878224

•

  Exhaust Piaggio Group · 878224 Available · Shipped in 3–5 working days

  € 584,28

  Add to cart

2 Screw Available AP8152267

•

  Screw M5x12 Piaggio Group · AP8152267 Available · Shipped in 3–5 working days

  € 2,54

  Add to cart

3 Spacer Available 826117

• • Switzerland version E3
  • Year of manufacture: 2011


  Washer Piaggio Group · 826117 Available · Shipped in 3–5 working days

  € 1,32

  Add to cart
• • New version
  • Switzerland version E3
  • Year of manufacture: 2011


  Washer Piaggio Group · 826118 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

4 Damper Available 487665

• • New fastening
  • Standard version
  • Switzerland version E3
  • Taiwan
  • Country: Taiwan


  Rubber bellows Piaggio Group · 487665 Available · Shipped in 3–5 working days

  € 2,67

  Add to cart

5 Silencer protector Available 830325

• • Switzerland version E3
  • Year of manufacture: 2011


  Heat Shield Piaggio Group · 830325 Available · Shipped in 3–5 working days

  € 39,23

  Add to cart

6 Screw Available 845591

•

  Screw M8x75 Piaggio Group · 845591 Available · Shipped in 3–5 working days

  € 1,80

  Add to cart

7 Washer Available 834187

•

  Washer 16x8,2x2,2 mm Piaggio Group · 834187 Available · Shipped in 3–5 working days

  € 1,31

  Add to cart

8 Nut Available 288245

• • Taiwan version


  Collar nut M6 Piaggio Group · 288245 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
