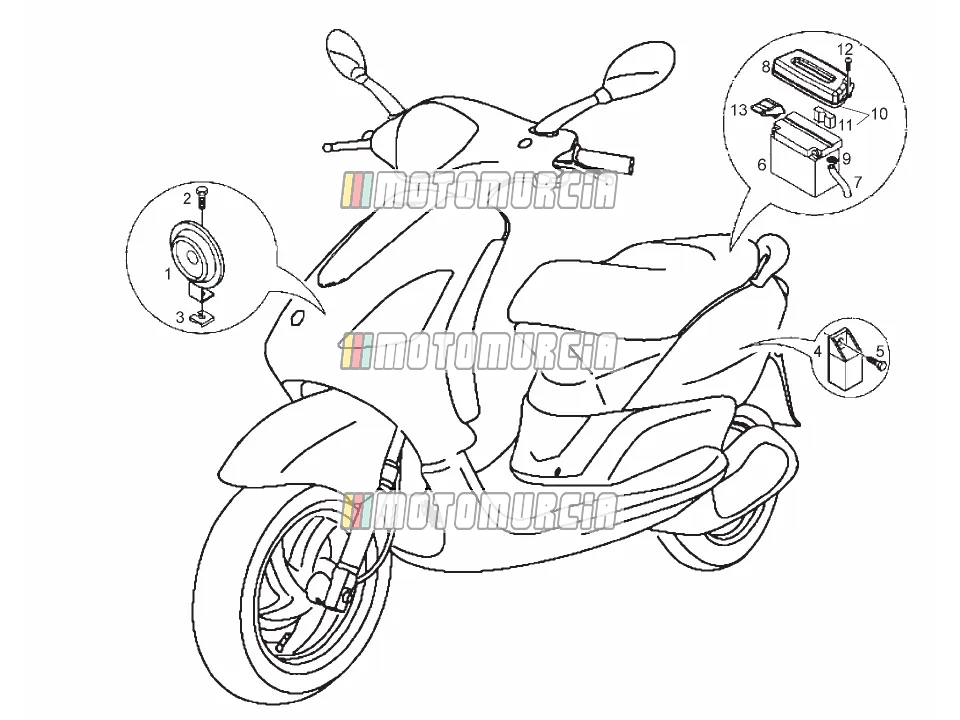

Exploded view — Electrical Systeme

Products

1 Voltage regulator Available 58096R

• • Carburettor version (C364M)


  Regulator, with flasher relay Piaggio Group · 58096R Available · Shipped in 3–5 working days

  € 82,72

  Add to cart

  Alternatives from other brands

  Rectifier Regulator PIAGGIO NRG 50 LC DT MC2 Athena · S410480401003 Backorder · Shipped in 2–5 weeks

  € 42,35

  Add to cart

  Voltage Regulator/Rectifier WAI · AP1000N Backorder · Shipped in 2–5 weeks

  € 53,49

  Add to cart

2 Screw Available B016777

• • ABS version


  Flanged Screw M6x16 Piaggio Group · B016777 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

3 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

4 Washer Available 016686

• 016686 Washer


  Washer Piaggio Group · 0166866 ↻ Replaces 016686, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,03

  Add to cart

5 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available · Shipped in 3–5 working days

  € 3,84

  Add to cart

6 CDI unit (2t) Available 58095R

• • Carburettor version (C364M)


  Ignition Coil Piaggio Group · 58095R Available · Shipped in 3–5 working days

  € 67,76

  Add to cart

7 Pad Available 217163

•

  Buffer Piaggio Group · 217163 Available · Shipped in 3–5 working days

  € 1,38

  Add to cart

8 Spacer Available 217164

• 217164 Spacer


  Spacer Piaggio Group · 174969 ↻ Replaces 217164, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,67

  Add to cart

9 Spark plug cap Available 825186

•

  Spark Plug Connector Piaggio Group · 825186 Available · Shipped in 3–5 working days

  € 29,05

  Add to cart

10 H.V. cable Available 080341

• • Taiwan


  Ignition Lead Piaggio Group · 080341 Available · Shipped in 3–5 working days

  € 3,88

  Add to cart

12 Preheat. control device Available 639027

•

  Control unit for carburettor heating Piaggio Group · 639027 Available · Shipped in 3–5 working days

  € 55,35

  Add to cart
