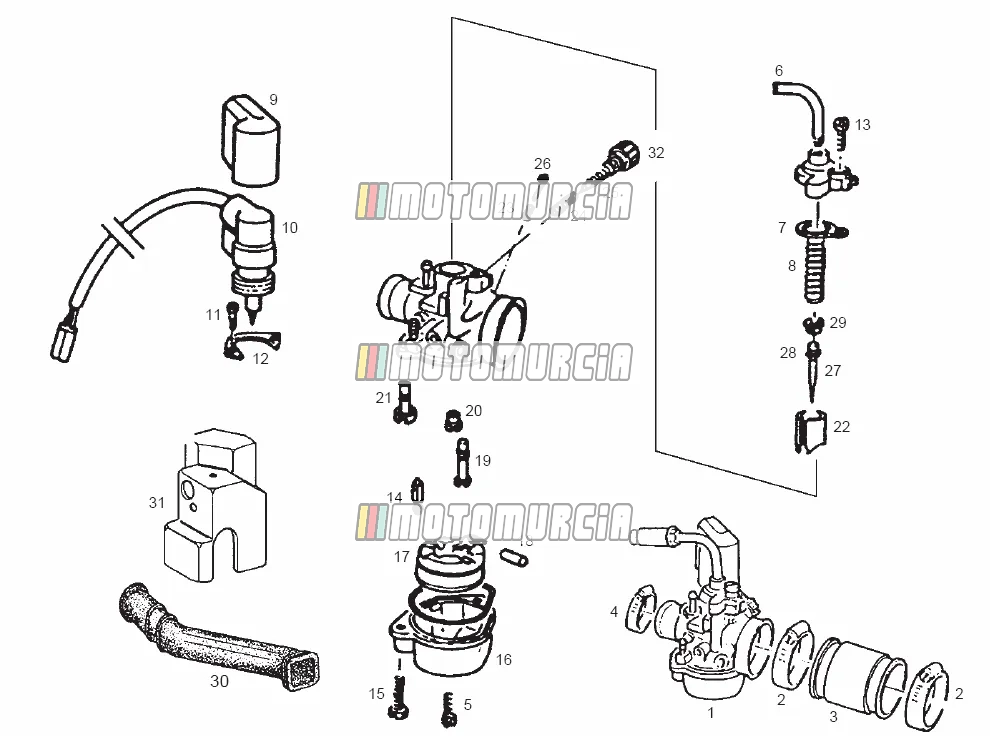

Exploded view — Carburettor

Products

01 Carburettor 82638R No longer available

• 82638R Carburettor
  No longer available

02 Hose clamp Available 257134

• • Taiwan
  • iGET version


  Cable Ties length: 27,7cm Piaggio Group · 257134 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

03 Air bellow Available 436096

•

  Bushing Piaggio Group · 436096 Available · Shipped in 3–5 working days

  € 12,33

  Add to cart

04 Clamp Available 825865

•

  Clamp Piaggio Group · 825865 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

05 Screw Available 432456

• • Carburettor version (C364M)


  Screw Piaggio Group · 432456 Available · Shipped in 3–5 working days

  € 8,91

  Add to cart

06 Baffle tube Available 113903

• • Carburettor version (C364M)


  Guide tube Piaggio Group · 113903 Available · Shipped in 3–5 working days

  € 6,92

  Add to cart

07 Gas valve cover Available 431654

• • Carburettor version (C364M)


  Lid, Dell Orto Piaggio Group · 431654 Available · Shipped in 3–5 working days

  € 5,51

  Add to cart

08 Valve gas return spring Available 482942

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Spring Piaggio Group · 482942 Available · Shipped in 3–5 working days

  € 1,69

  Add to cart
• 435694 Gas valve spring
  No longer available

09 Auto choke Cover Available 485671

•

  Covering Cap Piaggio Group · 485671 Available · Shipped in 3–5 working days

  € 10,16

  Add to cart
• 435704 Cap
  No longer available

10 Starter plunger Available CM105905

• • Carburettor version (C364M)


  Choke elektrisch, Dell Orto Piaggio Group · CM105905 Available · Shipped in 3–5 working days

  € 174,53

  Add to cart
• CM106002 Starter plunger (Weber)
  No longer available

11 Screw Available 289575

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Screw Piaggio Group · 289575 Available · Shipped in 3–5 working days

  € 2,41

  Add to cart

12 Plate Available 288863

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Bracket Piaggio Group · 288863 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

13 Screw Available 288865

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Screw Piaggio Group · 288865 Available · Shipped in 3–5 working days

  € 1,40

  Add to cart

14 Fuel closing needle Available CM128501

• • Carburettor version (C364M)
  • From chassis 9H433718
  • Limited version 45 km/h


  Float Needle Piaggio Group · CM128501 Available · Shipped in 3–5 working days

  € 13,94

  Add to cart

15 Screw Available 288862

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Screw Piaggio Group · 288862 Available · Shipped in 3–5 working days

  € 3,36

  Add to cart

16 Fuel chamber Available 484704

• • Carburettor version (C364M)
  • Country: Austria
  • Country: Denmark
  • Country: Spain


  Float Chamber Dell Orto Piaggio Group · 484704 Available · Shipped in 3–5 working days

  € 26,45

  Add to cart

17 Float Available 482916

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Float Dell Orto Piaggio Group · 482916 Available · Shipped in 3–5 working days

  € 19,48

  Add to cart

18 Float pin Available 288881

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Pin Piaggio Group · 288881 Available · Shipped in 3–5 working days

  € 2,06

  Add to cart

19 Idle jet (32) Available CM102103

• • Carburettor version (C364M)
  • Country: Europe
  • Country: Europe


  Idle Jet Piaggio Group · CM102103 Available · Shipped in 3–5 working days

  € 4,34

  Add to cart

20 Main jet 56 Available CM101707

• • Switzerland version E3
  • Year of manufacture: 2011


  Main jet Size: 56 Piaggio Group · CM101707 Available · Shipped in 3–5 working days

  € 6,13

  Add to cart

21 Starter jet 3/8 431635 No longer available

• 431635 Starter jet 3/8
  No longer available

22 Gas valve (17.5) Available CM141710

•

  Throttle Slide Piaggio Group · CM141710 Available · Shipped in 3–5 working days

  € 9,15

  Add to cart

23 Spring Available 085285

• • Carburettor version (C364M)


  Spring Piaggio Group · 085285 Available · Shipped in 3–5 working days

  € 1,37

  Add to cart

24 Spring Available 152608

• • Carburettor version (C364M)


  Spring Piaggio Group · 152608 Available · Shipped in 3–5 working days

  € 1,40

  Add to cart

25 Adjusting screw Backorder 288880

•

  Idle Adjustment Screw Piaggio Group · 288880 Backorder · Shipped in 2–4 weeks

  € 11,95

  Add to cart

26 Air adjuster screw Available CM107701

• • Carburettor version (C364M)
  • Limited version 45 km/h
  • Year of manufacture: 2009


  Adjusting Screw Piaggio Group · CM107701 Available · Shipped in 3–5 working days

  € 7,82

  Add to cart

27 Conical pin Available CM107510

• • Country: Europe


  Metering Needle Piaggio Group · CM107510 Available · Shipped in 3–5 working days

  € 18,97

  Add to cart

28 Seeger Available 288872

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Tapered Needle Clip Dell Orto Piaggio Group · 288872 Available · Shipped in 3–5 working days

  € 1,59

  Add to cart

29 Conical pin clip Available 288873

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Tapered Needle Clip Dell Orto Piaggio Group · 288873 Available · Shipped in 3–5 working days

  € 2,59

  Add to cart

30 Air duct Available 488129

•

  Hose Piaggio Group · 488129 Available · Shipped in 3–5 working days

  € 17,44

  Add to cart

31 Hood for carburettor Available 832186

•

  Bonnet Piaggio Group · 832186 Available · Shipped in 3–5 working days

  € 19,03

  Add to cart

32 Knob Available 288878

• • Year of manufacture: 2006
  • Year of manufacture: 2009
  • Country: Australia
  • Country: Europe
  • Country: Indonesia-Malaysia-New Zealand-Singapore


  Handle Piaggio Group · 288878 Available · Shipped in 3–5 working days

  € 2,53

  Add to cart
