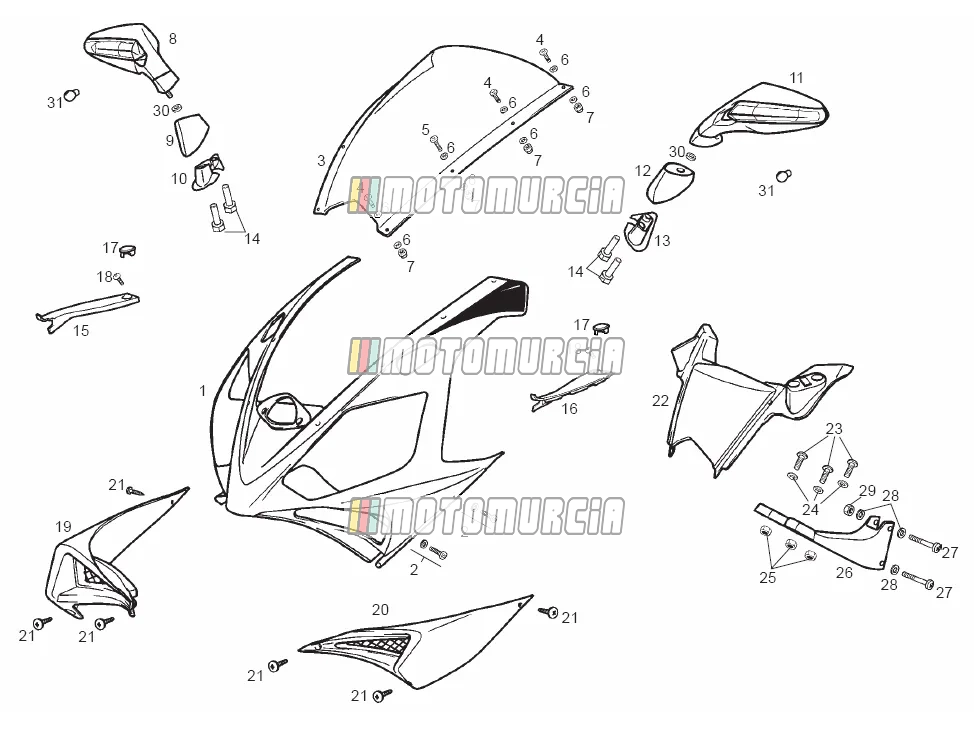

Exploded view — Frame

Products

1 FR. WINDSHIELD 20H01516281 No longer available

• 20H01516281 FR. WINDSHIELD
  No longer available
• 00H022703715 SCTO.CAREN.FRON.BL.AJ.GPR R 50
  No longer available
• 00H022703725 SCTO.CAREN.FRON.PIST.GPR R 50
  No longer available

2 Screw Available 00F05900041

•

  Screw M6x16 Piaggio Group · 00F05900041 Available

  € 2,69

  Add to cart

3 PLEXIGLASS 00H01504751 No longer available

• 00H01504751 PLEXIGLASS
  No longer available

4 Screw Available 00008041200

•

  Screw Piaggio Group · 00008041200 Available

  € 1,44

  Add to cart

5 Screw Available 00008041600

•

  Allen screw Piaggio Group · 00008041600 Available

  € 0,99

  Add to cart

6 Washer Available 00000031040

•

  Washer Ø 4,00 mm Piaggio Group · 00000031040 Available

  € 0,99

  Add to cart

7 Nut Available 00027004000

•

  Standard nut Piaggio Group · 00027004000 Available

  € 1,32

  Add to cart

8 RH. REAR VIEW MIRROR 00H02209671B No longer available

• 00H02209671B RH. REAR VIEW MIRROR
  No longer available

9 RH. REAR VIEW MIRROR SUPP. Available 00H04602881

•

  Cover, right Piaggio Group · 00H04602881 Available

  € 8,97

  Add to cart

10 LOWER RH. REAR VIEW MIRROR SUP Backorder 00H04601881

•

  Mirror mount, right Piaggio Group · 00H04601881 Backorder

  € 6,63

  Add to cart

11 LH. REAR VIEW MIRROR Backorder 00H04604921B

•

  Mirror, left Piaggio Group · 00H04604921B Backorder

  € 131,07

  Add to cart

12 LH. REAR VIEW MIRROR SUPP. 00H05801151 No longer available

• 00H05801151 LH. REAR VIEW MIRROR SUPP.
  No longer available

13 LOWER LH. REAR VIEW MIRROR SUP 00H05800151 No longer available

• 00H05800151 LOWER LH. REAR VIEW MIRROR SUP
  No longer available

14 Nut 00H06800941 No longer available

• 00H06800941 Nut
  No longer available

15 WINDSHIELD RH COVER 00H04400971 No longer available

• 00H04400971 WINDSHIELD RH COVER
  No longer available

16 WINDSHIELD LH COVER Available 00H04400981

•

  Deflector, left Piaggio Group · 00H04400981 Available

  € 8,52

  Add to cart

17 CAP 00H04400951 No longer available

• 00H04400951 CAP
  No longer available

18 Screw Available 00H01501701

•

  Screw Piaggio Group · 00H01501701 Available

  € 5,83

  Add to cart

19 FRONT RH AIR INTAKE Backorder 00H01800021

•

  Cover Piaggio Group · 00H01800021 Backorder

  € 17,51

  Add to cart

20 FRONT LH AIR INTAKE 00H01800031 No longer available

• 00H01800031 FRONT LH AIR INTAKE
  No longer available

21 Screw Available 00011031401

•

  Screw 3,6x14 mm Piaggio Group · 00011031401 Available

  € 1,48

  Add to cart

22 DASH SUPPORT 00H02303241 No longer available

• 00H02303241 DASH SUPPORT
  No longer available

23 FAIRING SECURING SCREW 6X18 GP Available 00H06301861

•

  Screw Piaggio Group · 00H06301861 Available

  € 1,19

  Add to cart

24 Washer Available 00402060001

•

  Shim Ø 6,00 mm Piaggio Group · 00402060001 Available

  € 1,48

  Add to cart

25 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

26 DASH SUPPORT ASSY Available 00H04903181

•

  Bracket Piaggio Group · 00H04903181 Available

  € 11,92

  Add to cart

27 Screw Available 00008064500

•

  Screw Piaggio Group · 00008064500 Available

  € 1,37

  Add to cart

28 Washer Available 00031106000

•

  Shim Piaggio Group · 00031106000 Available

  € 0,99

  Add to cart

30 RING NUT Backorder 00H00800431

•

  Washer Piaggio Group · 00H00800431 Backorder

  € 4,69

  Add to cart

31 Bulb (12V 10W BA15s) Available AP8127489

•

  Bulbs RY10, Bulb, 12 V, 10 W, BAU15s, orange Piaggio Group · AP8127489 Available

  € 6,67

  Add to cart
