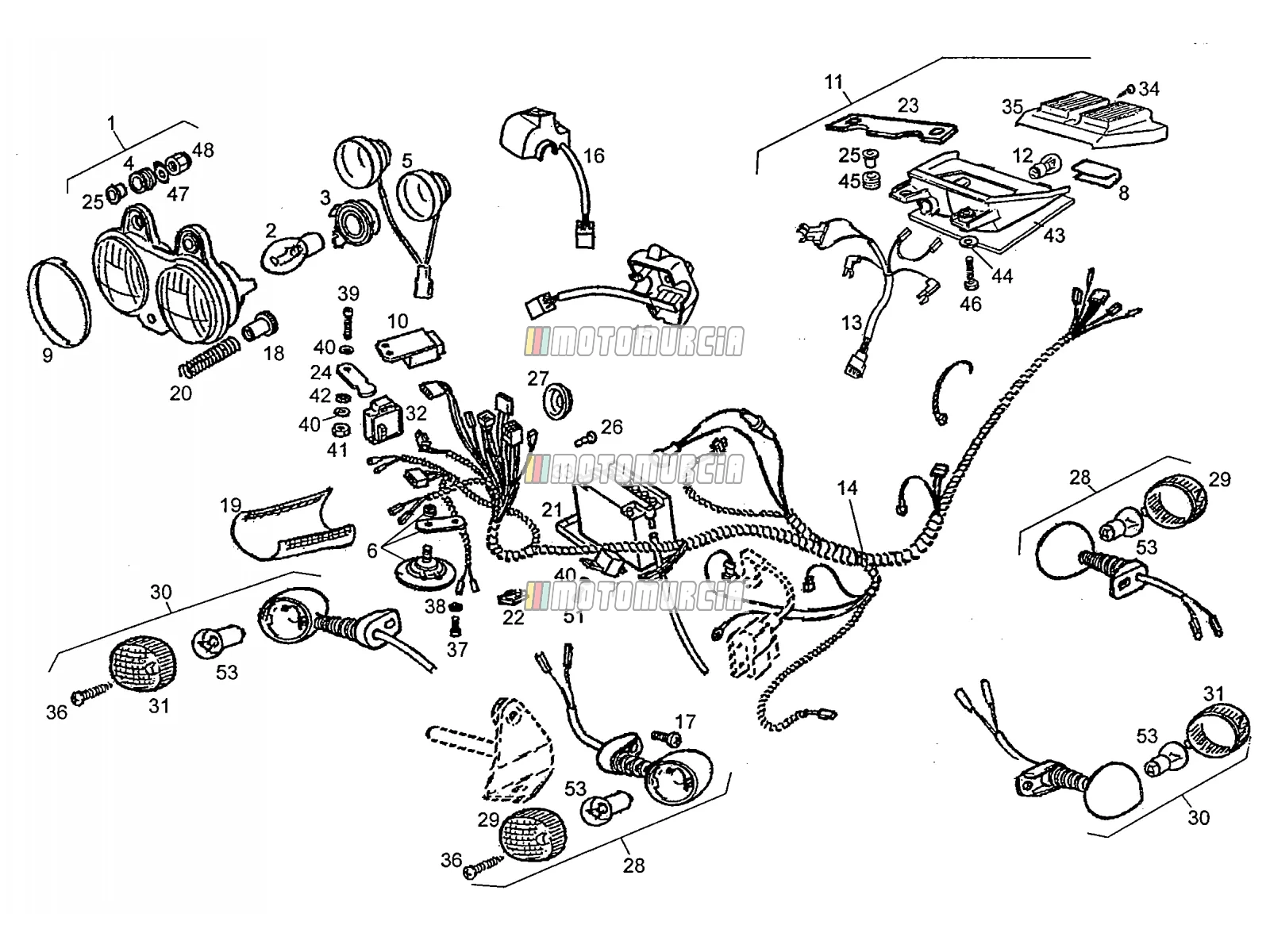

Exploded view — Electrical System

‹ Back to model
Derbi GPR 50 R 1998 Derbi GPR 50 R 1998
Electrical System

Products

01 Headlight 00G01013011 No longer available
  • 00G01013011 Headlight
    No longer available
02 Bulb 102111 No longer available
  • 102111 Bulb
    No longer available
03 SOCKET, BULB 00G01002111 No longer available
  • 00G01002111 SOCKET, BULB
    No longer available
04 SILENTBLOC 00G02300091 No longer available
  • 00G02300091 SILENTBLOC
    No longer available
05 HEADLAMP EQUIPMENT KIT 00G05700011 No longer available
  • 00G05700011 HEADLAMP EQUIPMENT KIT
    No longer available
06 Horn 00F01001311 No longer available
  • 00F01001311 Horn
    No longer available
07 ELECTRIC START RELAY 00G03900011 No longer available
  • 00G03900011 ELECTRIC START RELAY
    No longer available
08 TAIL LIGHT FRONT SECURING STOP 00H01000351 No longer available
  • 00H01000351 TAIL LIGHT FRONT SECURING STOP
    No longer available
09 FRONT HEADLIGHT REFLECTOR SEAL Available 00H01001051
  • Headlight Seal Piaggio Group · 00H01001051 Available
    € 5,28
10 Voltage regulator 00H01002841 No longer available
  • 00H01002841 Voltage regulator
    No longer available
11 R-CTO.FARO PILOTO S/INST.C/BOM 00H02302601 No longer available
  • 00H02302601 R-CTO.FARO PILOTO S/INST.C/BOM
    No longer available
12 BULB. 12V.10/5W. 00D01080371 No longer available
  • 00D01080371 BULB. 12V.10/5W.
    No longer available
13 TAIL LIGHT/INDICATORS WIRING A 00H01002951 No longer available
  • 00H01002951 TAIL LIGHT/INDICATORS WIRING A
    No longer available
14 ELECTRICAL INSTALATIONS ASSY. 00H01018301 No longer available
  • 00H01018301 ELECTRICAL INSTALATIONS ASSY.
    No longer available
  • 00H01017301 ELECTRICAL INSTALATIONS ASSY.
    No longer available
15 INDICATOR SWITCH 00H01700701 No longer available
  • 00H01700701 INDICATOR SWITCH
    No longer available
16 LIGHT SWITCH 00H02300171 No longer available
  • 00H02300171 LIGHT SWITCH
    No longer available
17 SCREW,6M100X20 00000012620 No longer available
  • 00000012620 SCREW,6M100X20
    No longer available
18 FRONT HEAD LIGHT ADJUSTER NUT 00H02300521 No longer available
  • 00H02300521 FRONT HEAD LIGHT ADJUSTER NUT
    No longer available
19 Guard Backorder 00H02300961
20 FRONT HEAD LIGHT SPRING GPR-50 00H02303501 No longer available
  • 00H02303501 FRONT HEAD LIGHT SPRING GPR-50
    No longer available
21 BATTERY BRACKET GPR-50"R" 00H03301551 No longer available
  • 00H03301551 BATTERY BRACKET GPR-50"R"
    No longer available
22 Clip nuts (M5) Available 00G04401462
  • Sheet nut M5 Piaggio Group · 00G04401462 Available
    € 1,48
23 TAIL LIGHT BRACKET GPR-50"R" 00H01800281 No longer available
  • 00H01800281 TAIL LIGHT BRACKET GPR-50"R"
    No longer available
24 SUPPORT 20D02300361 No longer available
  • 20D02300361 SUPPORT
    No longer available
25 Ring nut Available 00G01001821
  • Standard nut Piaggio Group · 00G01001821 Available
    € 9,28
26 BATTERY LOCATOR STOP GPR 00H01801471 No longer available
  • 00H01801471 BATTERY LOCATOR STOP GPR
    No longer available
27 Damper Available 00008915020
28 REAR RIGHT INDICATOR LIGHT ASS 00F01703301 No longer available
  • 00F01703301 REAR RIGHT INDICATOR LIGHT ASS
    No longer available
29 LENS, TURN SIGNAL REAR LH Backorder 00G01702892
30 REAR RIGHT INDICATOR LIGHT ASS 00F01703391 No longer available
  • 00F01703391 REAR RIGHT INDICATOR LIGHT ASS
    No longer available
31 LENS, TURN SIGNAL REAR LH 00G01702902 No longer available
  • 00G01702902 LENS, TURN SIGNAL REAR LH
    No longer available
32 Flasher unit Backorder 00G01700401
33 Battery 32YTX5LBS No longer available
  • 32YTX5LBS Battery
    No longer available
34 Washer Available 00402060001
35 Taillight lens 00H01001341 No longer available
  • 00H01001341 Taillight lens
    No longer available
36 INDICATOR LENS SECURING SCREW 00G01701091 No longer available
  • 00G01701091 INDICATOR LENS SECURING SCREW
    No longer available
37 Screw Available 319446
  • Screw M6x10 Piaggio Group · 319446 Available
    € 2,77
38 INNER STAR WASHER 0 6 00034000602 No longer available
  • 00034000602 INNER STAR WASHER 0 6
    No longer available
39 HEX.HEAD SCREW 5M80X15 00000002515 No longer available
  • 00000002515 HEX.HEAD SCREW 5M80X15
    No longer available
40 Washer gasket Available 847226
  • Shim Piaggio Group · 847226 Available
    € 0,99
41 Nut Available 020105
  • Standard nut Piaggio Group · 020105 Available
    € 1,88
42 Washer Available AP8150284
  • Washer Piaggio Group · AP8150284 Available
    € 0,99
43 TAIL LIGHT PROTECTOR GPR 50R 00H02200971 No longer available
  • 00H02200971 TAIL LIGHT PROTECTOR GPR 50R
    No longer available
44 Washer 00H00500211 No longer available
  • 00H00500211 Washer
    No longer available
45 Damper Available 00H06800461
  • Silentblock Piaggio Group · 00H06800461 Available
    € 3,29
46 Screw Available 031092
  • Screw M6x25 Piaggio Group · 031092 Available
    € 0,99
47 Washer Available 00D01200171
48 Nut Available 00000023060
49 Hose clamp 00A00900531 No longer available
  • 00A00900531 Hose clamp
    No longer available
50 Hose clamp 290X4,8 Backorder 00F00900531
51 Screw Available 00000004515
  • Allen screw M5 Piaggio Group · 00000004515 Available
    € 1,44
52 BATTERY BREATHER TUBE 00G04400601 No longer available
  • 00G04400601 BATTERY BREATHER TUBE
    No longer available
53 Bulb (12V 10W BAU15S) Available 584332
