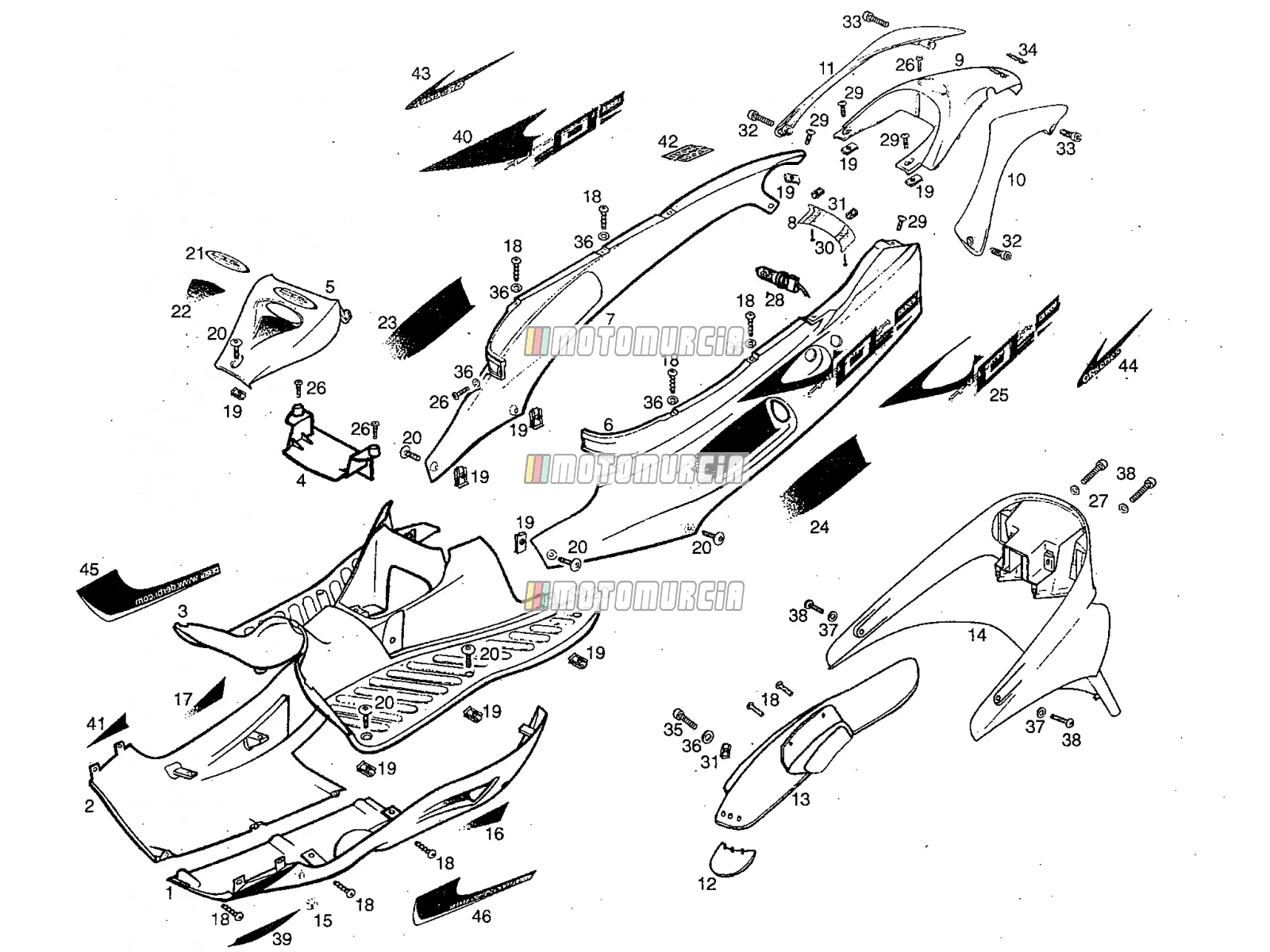

Exploded view — Frame

Products

01 LH KEEL SUB/ASSY 00G02204552 No longer available

• 00G02204552 LH KEEL SUB/ASSY
  No longer available
• 00G02201552C LH KEEL SUB/ASSY
  No longer available
• 00G02204551 LH KEEL SUB/ASSY
  No longer available
• 00G02201551C5 LH KEEL SUB/ASSY
  No longer available

02 RH KEEL SUB/ASSY 00G01804831 No longer available

• 00G01804831 RH KEEL SUB/ASSY
  No longer available
• 00G01804832 RH KEEL SUB/ASSY
  No longer available
• 00G01801831C5 RH KEEL SUB/ASSY
  No longer available
• 00G01801832 RH KEEL SUB/ASSY
  No longer available

03 FOOTREST PREDATOR 00G02200332 No longer available

• 00G02200332 FOOTREST PREDATOR
  No longer available

04 BATTERY COVER PREDATOR 00G01500901 No longer available

• 00G01500901 BATTERY COVER PREDATOR
  No longer available

05 ENG INSP PLATE SUB/ASSY 00G02204971C5 No longer available

• 00G02204971C5 ENG INSP PLATE SUB/ASSY
  No longer available

06 LH SIDE COVER SUB/ASSY 00G00515701 No longer available

• 00G00515701 LH SIDE COVER SUB/ASSY
  No longer available
• 00G00501702C LH SIDE COVER SUB/ASSY
  No longer available
• 00G00515702 LH SIDE COVER SUB/ASSY
  No longer available
• 00G00501701C5 LH SIDE COVER SUB/ASSY
  No longer available

07 RIGHT-HAND SIDE COVER 00G00515691 No longer available

• 00G00515691 RIGHT-HAND SIDE COVER
  No longer available
• 00G00501692C RIGHT-HAND SIDE COVER
  No longer available
• 00G00501691C5 RIGHT-HAND SIDE COVER
  No longer available
• 00G00515692 RIGHT-HAND SIDE COVER
  No longer available

08 REAR SIDE COVER JOINT TRIM RED 00G06800494 No longer available

• 00G06800494 REAR SIDE COVER JOINT TRIM RED
  No longer available
• 00G06800495 TAPETA POST.UN.TAP.LAT.AZ.END.
  No longer available

09 SADDLE TAIL UPPR COVER 00G00603164 No longer available

• 00G00603164 SADDLE TAIL UPPR COVER
  No longer available
• 00G00603165 TAPA SUP.PILOTO AZ.ENDR. PREDA
  No longer available

10 LH HANDHOLD PREDATOR 00G01801442C5 No longer available

• 00G01801442C5 LH HANDHOLD PREDATOR
  No longer available
• 00G01811441 LH HANDHOLD Z.GREY
  No longer available

11 RH HANDHOLD Z.GREY 00G04911731 No longer available

• 00G04911731 RH HANDHOLD Z.GREY
  No longer available
• 00G04901732 RH HANDHOLD
  No longer available

12 SUPPLEM. REAR MUDGUARD,V.START 00F00700381 No longer available

• 00F00700381 SUPPLEM. REAR MUDGUARD,V.START
  No longer available

13 REAR MUDGUARD PREDATOR 00G00702141 No longer available

• 00G00702141 REAR MUDGUARD PREDATOR
  No longer available
• 00G00703141 Mudguard rear
  No longer available

14 REAR MUDGUARD EXTENSION PRED 00G00706341 No longer available

• 00G00706341 REAR MUDGUARD EXTENSION PRED
  No longer available

15 DECAL, PADLOCK 00G06300062 No longer available

• 00G06300062 DECAL, PADLOCK
  No longer available

16 Oil Oil No longer available

• Oil
  No longer available
• 00G04600233 DECAL, LH KEEL PRED
  No longer available
• 00G04600232 DECAL, LH KEEL PRED
  No longer available

17 DECAL, RH KEEL PRED 00G04600222 No longer available

• 00G04600222 DECAL, RH KEEL PRED
  No longer available
• 00G04600223 DECAL, RH KEEL PRED
  No longer available

18 Screw Available 00011051801

•

  Screw 5,1x18 mm Piaggio Group · 00011051801 Available

  € 2,06

  Add to cart

19 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

20 Screw Available 00H01501701

•

  Screw Piaggio Group · 00H01501701 Available

  € 5,83

  Add to cart

21 DECAL, C.I.S. PREDATOR 00G01803941 No longer available

• 00G01803941 DECAL, C.I.S. PREDATOR
  No longer available

22 DECAL, CYLIND HD INSP CVR 00G01800922 No longer available

• 00G01800922 DECAL, CYLIND HD INSP CVR
  No longer available

23 DECAL, LWR RH SIDE PANEL U 00G01502402 No longer available

• 00G01502402 DECAL, LWR RH SIDE PANEL U
  No longer available

24 DECAL, LWR LH SIDE PANEL U 00G04902542 No longer available

• 00G04902542 DECAL, LWR LH SIDE PANEL U
  No longer available

25 DECAL, UPPR LH SIDE PANEL PRED 00G00500651 No longer available

• 00G00500651 DECAL, UPPR LH SIDE PANEL PRED
  No longer available
• 00G00500652 DECAL, UPPR LH SIDE PANEL PRED
  No longer available

26 Screw Available 00011031401

•

  Screw 3,6x14 mm Piaggio Group · 00011031401 Available

  € 1,48

  Add to cart

27 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

28 LOCK ASSY, SADDLE Backorder 00H00600681

•

  Lock cylinder Piaggio Group · 00H00600681 Backorder

  € 81,86

  Add to cart

29 Screw 00G01503701 No longer available

• 00G01503701 Screw
  No longer available

30 SPHER HD ALLEN SCREW 00008151600 No longer available

• 00008151600 SPHER HD ALLEN SCREW
  No longer available

31 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

32 Screw (M8x25) Available AP8150170

•

  Screw M8x25 Piaggio Group · AP8150170 Available

  € 5,13

  Add to cart

33 Screw Backorder 00000004850

•

  Screw Piaggio Group · 00000004850 Backorder

  € 1,44

  Add to cart

34 DERBI 8 TIMES TRANSFER 00H04900231 No longer available

• 00H04900231 DERBI 8 TIMES TRANSFER
  No longer available

35 Screw Available 00012151500

•

  Screw M5 Piaggio Group · 00012151500 Available

  € 2,47

  Add to cart

36 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

37 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart

38 Screw Available 00012161600

•

  Screw M6 Piaggio Group · 00012161600 Available

  € 0,99

  Add to cart

39 DECAL, LH KEEL 00G04600741 No longer available

• 00G04600741 DECAL, LH KEEL
  No longer available

40 DECAL, UPPR RH SIDE PANEL PRED 00G00501221 No longer available

• 00G00501221 DECAL, UPPR RH SIDE PANEL PRED
  No longer available
• 00G00501222 DECAL, UPPR RH SIDE PANEL PRED
  No longer available

41 DECAL, RH KEEL 00G04600731 No longer available

• 00G04600731 DECAL, RH KEEL
  No longer available

42 DECAL 00G01502331 No longer available

• 00G01502331 DECAL
  No longer available

43 DECAL, UPPR RH SIDE PANEL B 00G00505222 No longer available

• 00G00505222 DECAL, UPPR RH SIDE PANEL B
  No longer available
• 00G00505221 DECAL, UPPR RH SIDE PANEL B
  No longer available

44 DECAL, UPPER RH SIDE PANEL B 00G00505652 No longer available

• 00G00505652 DECAL, UPPER RH SIDE PANEL B
  No longer available
• 00G00505651 DECAL, UPPER RH SIDE PANEL B
  No longer available

45 CALCA DT.DR.QUILLA PR.O2 AZ 01 00G04601732 No longer available

• 00G04601732 CALCA DT.DR.QUILLA PR.O2 AZ 01
  No longer available
• 00G04601731 DECAL
  No longer available

46 CALCA DT.IZ.QUILLA PR.O2 AZ 01 00G04601742 No longer available

• 00G04601742 CALCA DT.IZ.QUILLA PR.O2 AZ 01
  No longer available
• 00G04601741 DECAL
  No longer available
