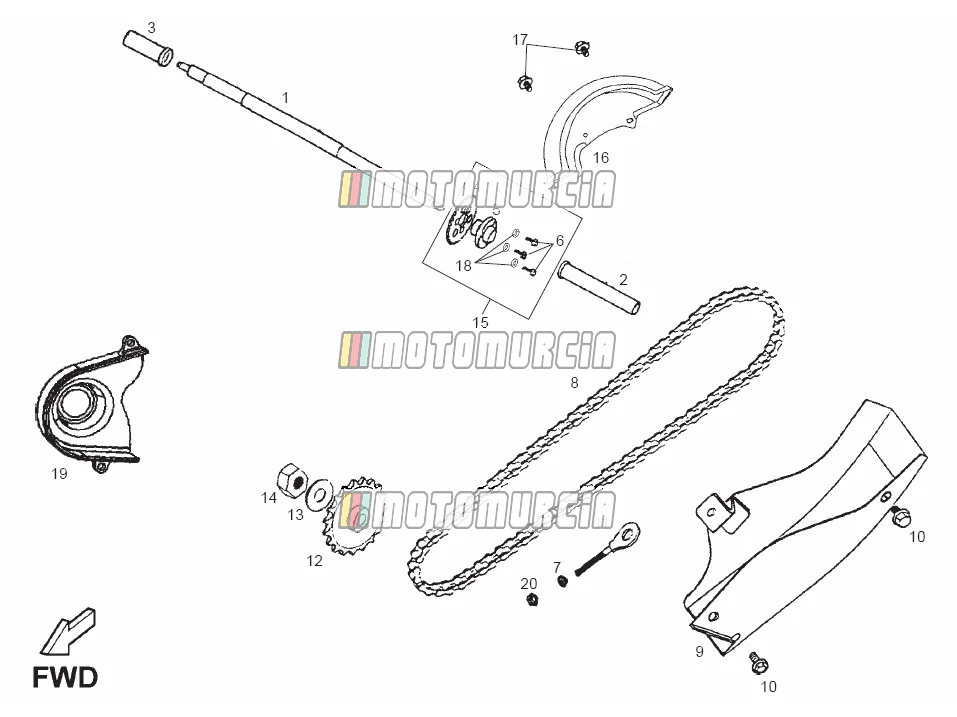

Exploded view — Chain

Products

1 REAR WHEEL AXLE 00Q01300211 No longer available

• 00Q01300211 REAR WHEEL AXLE
  No longer available

2 RIGHT SPACER COLLAR 00Q01300181 No longer available

• 00Q01300181 RIGHT SPACER COLLAR
  No longer available

3 LEFT SPACER COLLAR 00Q01302191 No longer available

• 00Q01302191 LEFT SPACER COLLAR
  No longer available

4 REAR SPROCKET 28T 00Q01301031 No longer available

• 00Q01301031 REAR SPROCKET 28T
  No longer available
• 00Q01300031 REAR SPROCKET
  No longer available

5 FINAL DRIVE FLANGE(REV.1 00Q01300051 No longer available

• 00Q01300051 FINAL DRIVE FLANGE(REV.1
  No longer available
• 00Q01301051 FINAL DRIVE FLANGE(REV.1
  No longer available

6 HEX.SOCRET-HEAD SCREW 8M125X20 Available 00000004820

•

  Allen screw M8 Piaggio Group · 00000004820 Available

  € 0,99

  Add to cart

7 HEX FLANGE NUT WITH SERRATION 00Q04200261 No longer available

• 00Q04200261 HEX FLANGE NUT WITH SERRATION
  No longer available

8 DRIVE CHAIN 428SH74 00Q01501201 No longer available

• 00Q01501201 DRIVE CHAIN 428SH74
  No longer available
• 00Q01500201 DRIVE CHAIN
  No longer available

9 CHAIN LOWER PROTECT COVER 00Q01502181 No longer available

• 00Q01502181 CHAIN LOWER PROTECT COVER
  No longer available
• 00Q01500181 CHAIN PROTECT COVER
  No longer available

10 HEX WASHER FACE BOLT 00Q01300491 No longer available

• 00Q01300491 HEX WASHER FACE BOLT
  No longer available

11 DRIVE CHAIN ADJUSTER 8 MM 00Q01801771 No longer available

• 00Q01801771 DRIVE CHAIN ADJUSTER 8 MM
  No longer available

12 DRIVE SPROCKET ASS'Y 00Q02800371 No longer available

• 00Q02800371 DRIVE SPROCKET ASS'Y
  No longer available
• 00Q02801371 DRIVE SPROCKET ASS'Y 20T
  No longer available

13 Washer Available 00032015000

•

  Shim Piaggio Group · 00032015000 Available

  € 2,77

  Add to cart

14 Nut Available 00281141503

•

  Standard nut Piaggio Group · 00281141503 Available

  € 1,65

  Add to cart

15 REAR SPROCKET ASS'Y 28T 00Q01301641 No longer available

• 00Q01301641 REAR SPROCKET ASS'Y 28T
  No longer available
• 00Q01300641 REAR SPROCKET ASS'Y
  No longer available

16 REAR CHAIN COVER 00Q01501181 No longer available

• 00Q01501181 REAR CHAIN COVER
  No longer available
• 00Q01503181 REAR CHAIN COVER
  No longer available

17 HEX. HEAD SCREW 6M100X12D933 00002061200 No longer available

• 00002061200 HEX. HEAD SCREW 6M100X12D933
  No longer available

18 SPRING WASHER 8.5*13*2 00Q00004821 No longer available

• 00Q00004821 SPRING WASHER 8.5*13*2
  No longer available

19 FRONT CHAIN COVER 00Q01504181 No longer available

• 00Q01504181 FRONT CHAIN COVER
  No longer available

20 Nut Backorder 00000023080

•

  Standard nut M8 Piaggio Group · 00000023080 Backorder

  € 1,44

  Add to cart
