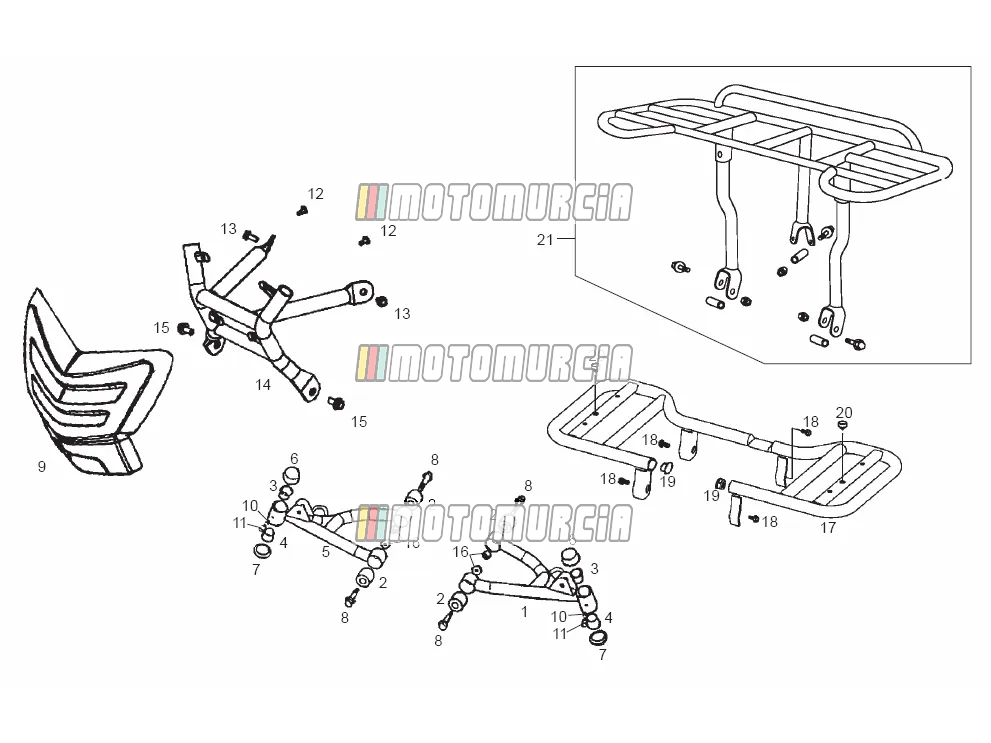

Exploded view — Frame

Products

1 LEFT SUSPENSION ARM(REV.1) Backorder 00Q06300221

•

  Swingarm left Piaggio Group · 00Q06300221 Backorder

  € 156,80

  Add to cart

2 RUBBER BUSHING 00Q06300341 No longer available

• 00Q06300341 RUBBER BUSHING
  No longer available

3 BUSH 00Q06301341 No longer available

• 00Q06301341 BUSH
  No longer available

4 BUSH 00Q06302341 No longer available

• 00Q06302341 BUSH
  No longer available

5 RIGHT SUSPENSION ARM(REV.1) 00Q05900971 No longer available

• 00Q05900971 RIGHT SUSPENSION ARM(REV.1)
  No longer available

6 WATERPROOF COVER 00Q06300451 No longer available

• 00Q06300451 WATERPROOF COVER
  No longer available

7 DUSTPROOF COVER 00Q00200231 No longer available

• 00Q00200231 DUSTPROOF COVER
  No longer available

8 HEX WASHER FACE BOLT 00Q06800471 No longer available

• 00Q06800471 HEX WASHER FACE BOLT
  No longer available

9 BUMPER COVER 00Q06301021 No longer available

• 00Q06301021 BUMPER COVER
  No longer available

10 GREASE VALEVE 00Q00200701 No longer available

• 00Q00200701 GREASE VALEVE
  No longer available

11 GREASE VALEVE CAP 00Q00201471 No longer available

• 00Q00201471 GREASE VALEVE CAP
  No longer available

12 Screw Available 00012051200

•

  Screw M5 Piaggio Group · 00012051200 Available

  € 1,72

  Add to cart

13 HEXAGONAL HEAD SCREW 6M100X15 00000002615 No longer available

• 00000002615 HEXAGONAL HEAD SCREW 6M100X15
  No longer available

14 BUMPER 00Q01501311 No longer available

• 00Q01501311 BUMPER
  No longer available

15 SCREW M8X16 00000002816 No longer available

• 00000002816 SCREW M8X16
  No longer available

16 Self locking nut 10.m150 00000023100 No longer available

• 00000023100 Self locking nut 10.m150
  No longer available

17 FOOTREST BRACKET 00Q01501091 No longer available

• 00Q01501091 FOOTREST BRACKET
  No longer available
• 00Q01500091 FOOTREST BRACKET
  No longer available

18 HEXAG.HEAD SACREW.10M150X20. 00000002120 No longer available

• 00000002120 HEXAG.HEAD SACREW.10M150X20.
  No longer available

19 FLOOR PANEL RUBBER CAP 00Q06100101 No longer available

• 00Q06100101 FLOOR PANEL RUBBER CAP
  No longer available

20 RUBBER DAMPER 00Q01501291 No longer available

• 00Q01501291 RUBBER DAMPER
  No longer available

21 CARRIER KIT QUAD DFW 50cc 00Q01400191 No longer available

• 00Q01400191 CARRIER KIT QUAD DFW 50cc
  No longer available
