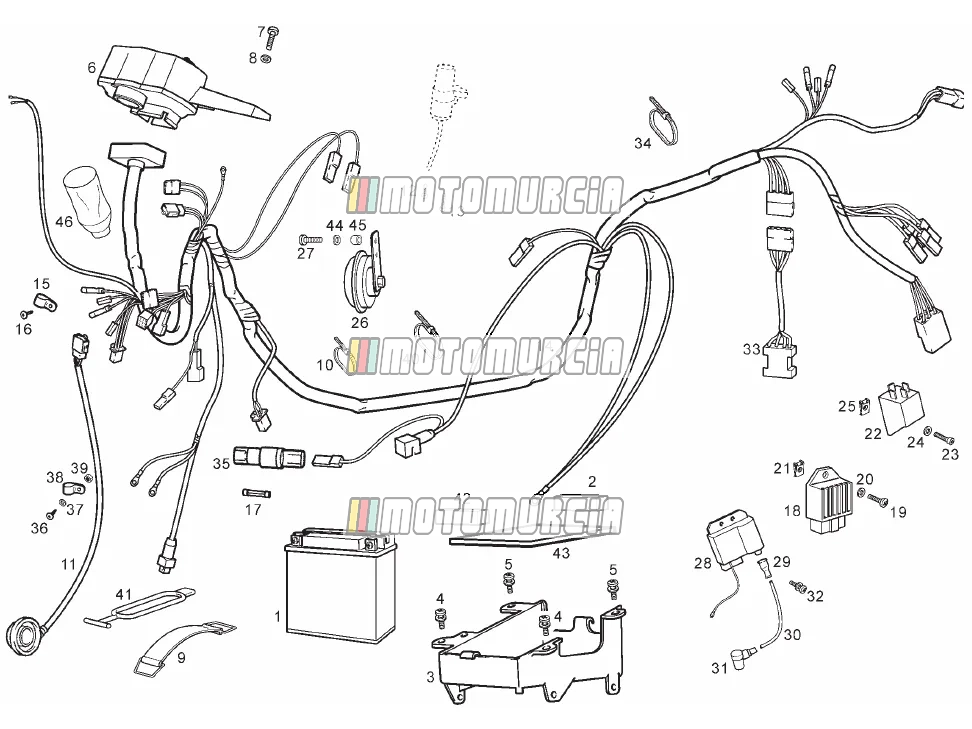

Exploded view — Electrical System

Products

1 Battery 32YTX5LBS No longer available

• 32YTX5LBS Battery
  No longer available

2 Vibration-damping rubber Backorder 00H01803471

•

  Vibrations Damper Piaggio Group · 00H01803471 Backorder

  € 4,23

  Add to cart

3 BATTERY BOX Backorder 00H03303551

•

  Battery Box Piaggio Group · 00H03303551 Backorder

  € 13,09

  Add to cart

4 Screw Available 00H05900021

•

  Screw M6 Piaggio Group · 00H05900021 Available

  € 5,60

  Add to cart

5 Screw Backorder 00G06800021

•

  Screw M6 Piaggio Group · 00G06800021 Backorder

  € 5,60

  Add to cart

6 Dashboard Backorder 866130

•

  Instrument Cluster mph Piaggio Group · 866130 Backorder

  € 129,47

  Add to cart
• 866128 Dashboard
  No longer available

7 Screw Available 00012152000

•

  Screw Piaggio Group · 00012152000 Available

  € 0,99

  Add to cart

8 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

9 BATTERY SECURING CLAMP SUB-ASS Backorder 00G01801361

•

  Spanngummi for battery Piaggio Group · 00G01801361 Backorder

  € 12,93

  Add to cart

10 Hose clamp 00A00900531 No longer available

• 00A00900531 Hose clamp
  No longer available

11 Sensor, unit Available 898626

•

  Speed sensor Piaggio Group · 898626 Available

  € 96,84

  Add to cart

12 Screw Available AP8150169

•

  Screw M8x20 Piaggio Group · AP8150169 Available

  € 1,88

  Add to cart

13 Screw Backorder 00H06300791

•

  Screw Piaggio Group · 00H06300791 Backorder

  € 7,27

  Add to cart

14 ELECTRICAL INSTALATIONS ASSY. 00H01044301 No longer available

• 00H01044301 ELECTRICAL INSTALATIONS ASSY.
  No longer available

15 Clamp Available 00H01000981

•

  Shackle Piaggio Group · 00H01000981 Available

  € 2,64

  Add to cart

16 Screw Available AP8150246

•

  Oval Head Screw Piaggio Group · AP8150246 Available

  € 4,95

  Add to cart

17 R-FUSIBLE 7AMP.DRD PRO AL.F. 00H01004911 No longer available

• 00H01004911 R-FUSIBLE 7AMP.DRD PRO AL.F.
  No longer available

18 Voltage regulator Available 898891

•

  Regulator Piaggio Group · 898891 Available

  € 94,66

  Add to cart

19 Screw Available 00012162000

•

  Screw M6 Piaggio Group · 00012162000 Available

  € 0,99

  Add to cart

20 Washer Available 00031106000

•

  Shim Piaggio Group · 00031106000 Available

  € 0,99

  Add to cart

21 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

22 Relay - starter Available 58115R

•

  Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

  € 24,91

  Add to cart

23 Screw 6M100X12 Backorder 00000004612

•

  Screw M6 Piaggio Group · 00000004612 Backorder

  € 1,59

  Add to cart

26 Horn 00H01005311 No longer available

• 00H01005311 Horn
  No longer available

27 Screw Backorder 00012062500

•

  Screw Piaggio Group · 00012062500 Backorder

  € 0,99

  Add to cart

28 CDI unit Backorder 00H03330171

•

  Ignition Coil, Ducati Piaggio Group · 00H03330171 Backorder

  € 153,66

  Add to cart

29 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart
•

  Rubber bellows Piaggio Group · 00F03300731 Available

  € 15,26

  Add to cart

30 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

31 Spark plug cap Available 00G03301271

•

  Spark Plug Connector Piaggio Group · 00G03301271 Available

  € 20,75

  Add to cart

33 Flasher relay Available 00H05700481

•

  Indicator Relay Piaggio Group · 00H05700481 Available

  € 43,64

  Add to cart

34 Hose clamp 290X4,8 Backorder 00F00900531

•

  Clamp 290x4,8 mm Piaggio Group · 00F00900531 Backorder

  € 5,60

  Add to cart

35 FUSE HOLDER Backorder 00G02300811

•

  Fuse Holder Piaggio Group · 00G02300811 Backorder

  € 67,23

  Add to cart

36 Screw Available 00008051600

•

  Screw M5 Piaggio Group · 00008051600 Available

  € 1,39

  Add to cart

37 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

38 Fairlead Available 864454

•

  Clamp Piaggio Group · 864454 Available

  € 2,63

  Add to cart

39 Nut Available 00000023050

•

  Standard nut Piaggio Group · 00000023050 Available

  € 2,69

  Add to cart

40 Hose clamp Available 00D00900531

•

  Clamp Piaggio Group · 00D00900531 Available

  € 1,65

  Add to cart

41 BATTERY FASTERING CLAMP 00H01800361 No longer available

• 00H01800361 BATTERY FASTERING CLAMP
  No longer available

42 TOPE BATERIA DRD PRO 50CC 00H01811471 No longer available

• 00H01811471 TOPE BATERIA DRD PRO 50CC
  No longer available

43 Fastening battery Available 00H01812471

•

  Rubber Piaggio Group · 00H01812471 Available

  € 2,63

  Add to cart

44 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

45 Spacer Available 00D01500471

•

  Standard nut Piaggio Group · 00D01500471 Available

  € 8,66

  Add to cart

46 Guard Backorder 00H02300961

•

  Protection piece Piaggio Group · 00H02300961 Backorder

  € 18,43

  Add to cart
