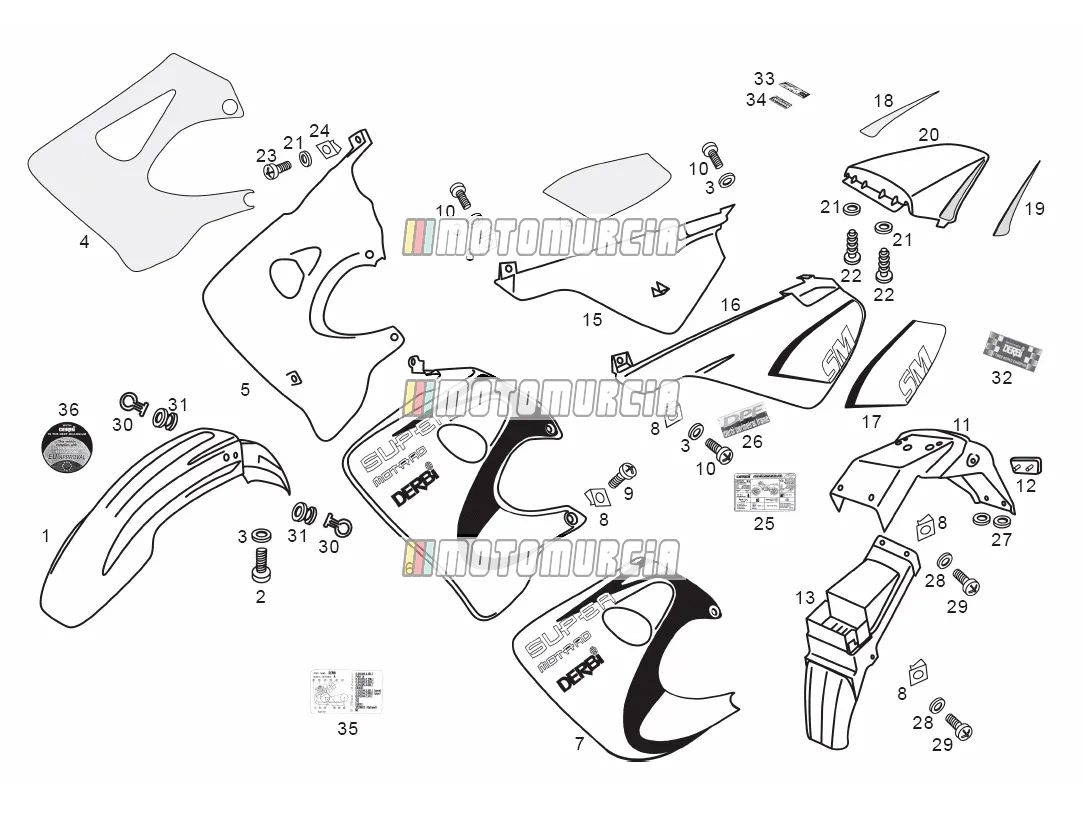

Exploded view — Front Mudguard

Products

01 Front mudguard 00H00713023 No longer available

• 00H00713023 Front mudguard
  No longer available
• 00H00713021 GUARDAB.DT.SENDA SM 2000 ROJO
  No longer available
• 00H00713026 GUARDAB.DT.SENDA SM 2001 VERDE
  No longer available
• 00H00713022 GUARDAB.DT.SENDA SM 2000 AZUL
  No longer available

02 Screw Available 00012162000

•

  Screw M6 Piaggio Group · 00012162000 Available

  € 0,99

  Add to cart

03 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

04 CALCA TAPAS DT. DR SM 2000 NEG 00H04913562 No longer available

• 00H04913562 CALCA TAPAS DT. DR SM 2000 NEG
  No longer available
• 00H04913563 CALCA TAPAS DT. DR SM 2000 AZ
  No longer available
• 00H04913561 CALCA TAPAS DT. DR SM 2000 ROJ
  No longer available
• 00H04913564 CALCA TAPAS DT. DR SM 2001 VD
  No longer available

05 SCTO.TAPA DT.DR SM 2000 ROJA 00H04420801 No longer available

• 00H04420801 SCTO.TAPA DT.DR SM 2000 ROJA
  No longer available
• 00H04420804 SCTO.TAPA DT.DR SM 2001 VERDE
  No longer available
• 00H04405774 SCTO.TAPA DT.DR SM 2000 NEGRA
  No longer available
• 00H04405773 SCTO.TAPA DT.DR SM 2000 AZUL
  No longer available

06 TAPA DT.IZ. VERDE S-R 2000 00H04404784 No longer available

• 00H04404784 TAPA DT.IZ. VERDE S-R 2000
  No longer available
• 00H04418834 SCTO.TAPA DT.IZ SM 01 VERDE
  No longer available
• 00H04404783 TAPA DT.IZ. AZUL S-R 2000 S/C
  No longer available
• 00H04418831 SCTO.TAPA DT.IZ SM 00 ROJA
  No longer available

07 CALCA TAPA DT.IZ. SM 00 NEGRA 00H04912572 No longer available

• 00H04912572 CALCA TAPA DT.IZ. SM 00 NEGRA
  No longer available
• 00H04912571 CALCA TAPA DT.IZ. SM 00 ROJA
  No longer available
• 00H04912574 CALCA TAPA DT.IZ. SM 01 VERDE
  No longer available
• 00H04912573 CALCA TAPA DT.IZ. SM 00 AZUL
  No longer available

08 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

09 Screw 00G01503701 No longer available

• 00G01503701 Screw
  No longer available

11 Rear mudguard Support Available 00H00712341

•

  Mudguard rear Piaggio Group · 00H00712341 Available

  € 45,80

  Add to cart

12 Reflector 00G04400752 No longer available

• 00G04400752 Reflector
  No longer available

13 Mudguard rear Backorder 00H00705121

•

  Mudguard rear Piaggio Group · 00H00705121 Backorder

  € 31,73

  Add to cart

14 SCTO.TAPA LAT.IZ.C/C SM 00 ROJ 00H00533701C No longer available

• 00H00533701C SCTO.TAPA LAT.IZ.C/C SM 00 ROJ
  No longer available
• 00H00513192 CALCA POST.TAPA LAT.IZ.SM00 NG
  No longer available
• 00H00513191 CALCA POST.TAPA LAT.IZ.SM00 RJ
  No longer available

15 SCTO.TAPA LAT.DR..C/C SM-0 VD 00H00532694 No longer available

• 00H00532694 SCTO.TAPA LAT.DR..C/C SM-0 VD
  No longer available

16 SCTO.TAPA LAT.IZ.C/C SM 00 NEG 00H00533702 No longer available

• 00H00533702 SCTO.TAPA LAT.IZ.C/C SM 00 NEG
  No longer available
• 00H00533703 SCTO.TAPA LAT.IZ.C/C SM 00 AZ.
  No longer available
• 00H00533704 SCTO.TAPA LAT.IZ.C/C SM 01 VD
  No longer available

17 CALCA POST.TAPA LAT.DR.SM00 NG 00H00511652 No longer available

• 00H00511652 CALCA POST.TAPA LAT.DR.SM00 NG
  No longer available
•

  Fairing, right Piaggio Group · 00H00505074 Backorder

  € 77,36

  Add to cart
• 00H00532693C SCTO.TAPA LAT.DR..C/C SM-00 AZ
  No longer available
• 00H00532691 SCTO.TAPA LAT.DR..C/C SM-00 RJ
  No longer available
• 00H00511651 CALCA POST.TAPA LT.DR.SM00 R/A
  No longer available

18 CALCA DCH.COLIN SM-00 ROJ/AZUL 00H00612601 No longer available

• 00H00612601 CALCA DCH.COLIN SM-00 ROJ/AZUL
  No longer available
• 00H00612602 CALCA DCH.COLIN SM-00 NEGRO
  No longer available

19 CALCA TRAS.IZQ.COLIN.SM00 R/AZ 00H00612481 No longer available

• 00H00612481 CALCA TRAS.IZQ.COLIN.SM00 R/AZ
  No longer available
• 00H00612482 CALCA TRAS.IZQ.COLIN.SM00 NEG
  No longer available

20 SCTO. COLIN C/C SM-00 ROJO 00H04906091 No longer available

• 00H04906091 SCTO. COLIN C/C SM-00 ROJO
  No longer available
• 00H04905094C5 SCTO. COLIN C/C SR 01 NEGRO
  No longer available
• 00H04906094 SCTO. COLIN C/C SM-01 VERDE
  No longer available
• 00H00608163 SCTO. COLIN C/C SR 00 AZUL
  No longer available

21 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

22 Screw Available 00011051601

•

  Thread Screw 5x16 mm Piaggio Group · 00011051601 Available

  € 0,99

  Add to cart

23 Screw Available 00012152000

•

  Screw Piaggio Group · 00012152000 Available

  € 0,99

  Add to cart

24 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

25 DECAL 00H04637141 No longer available

• 00H04637141 DECAL
  No longer available

26 DECAL 00H02200021 No longer available

• 00H02200021 DECAL
  No longer available
• 00H02200022 CALCA DPF SENDASM 2000
  No longer available

27 Washer Available 861239

•

  Shim Ø 5,00 mm, inox Piaggio Group · 861239 Available

  € 2,77

  Add to cart

28 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart

29 Screw Available 00012161600

•

  Screw M6 Piaggio Group · 00012161600 Available

  € 0,99

  Add to cart

30 Guard Available 00H02201591

•

  Protection piece Piaggio Group · 00H02201591 Available

  € 2,49

  Add to cart

31 Damper Available 00D01500021

•

  Rubber Piaggio Group · 00D01500021 Available

  € 10,61

  Add to cart

32 DERBI 8 TIMES TRANSFER 00H04900231 No longer available

• 00H04900231 DERBI 8 TIMES TRANSFER
  No longer available

33 DECAL KAWASAKI 00G01501321 No longer available

• 00G01501321 DECAL KAWASAKI
  No longer available

34 CALCA CHAMPION DE FRANCE 1999 00H04901231 No longer available

• 00H04901231 CALCA CHAMPION DE FRANCE 1999
  No longer available
• 00H04902231 CALCA CHAMPION DE FRANCE 2000
  No longer available

35 DECAL 00H06322731 No longer available

• 00H06322731 DECAL
  No longer available

36 DECAL EU APPROVAL 00G04600371 No longer available

• 00G04600371 DECAL EU APPROVAL
  No longer available
