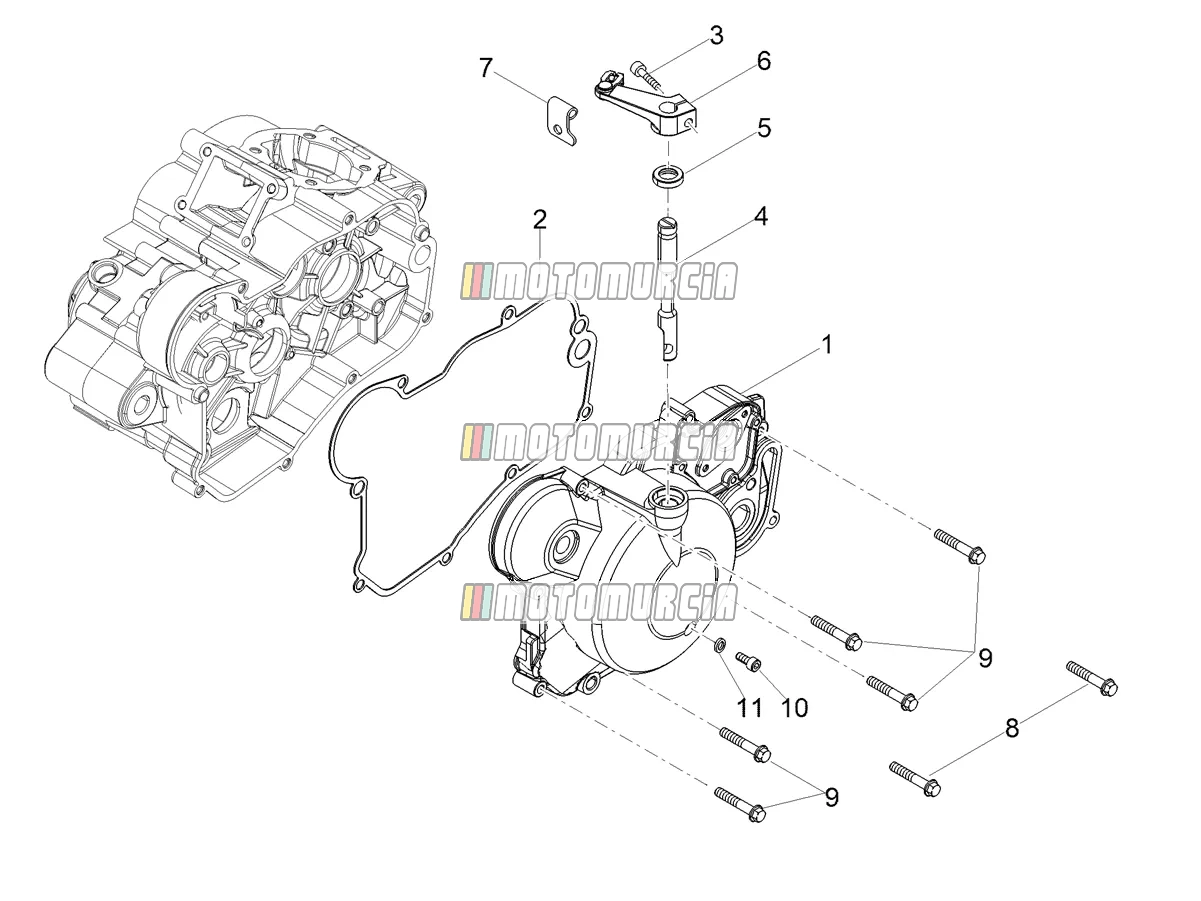

Exploded view — Clutch Cover

Products

1 Clutch cover Available CM1576035

•

  Clutch Cover Piaggio Group · CM1576035 Available

  € 91,42

  Add to cart

2 Gasket - clutch cover Available 880888

•

  Clutch Case Gasket Piaggio Group · 880888 Available

  € 10,50

  Add to cart

3 Screw Available 623920

•

  Torx screw M6x20 Piaggio Group · 623920 Available

  € 1,48

  Add to cart

4 Clutch lever Available 847083

•

  Release Shaft Piaggio Group · 847083 Available

  € 36,05

  Add to cart

5 Oil seal Available 847075

•

  Shaft Seal 12x20x5 mm Piaggio Group · 847075 Available

  € 6,20

  Add to cart

6 Clutch relese shaft CM151201 No longer available

• CM151201 Clutch relese shaft
  No longer available

7 Plate Available 847090

•

  Bracket Piaggio Group · 847090 Available

  € 6,27

  Add to cart

8 Screw Available 1A011120

•

  Flanged Screw M6x40 Piaggio Group · 1A011120 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 · Quantity needed: 5 Available

  € 1,48

  Add to cart

10 Screw Available 319446

•

  Screw M6x10 Piaggio Group · 319446 Available

  € 2,77

  Add to cart

11 Washer Available 847239

•

  Washer Piaggio Group · 847239 Available

  € 2,35

  Add to cart
