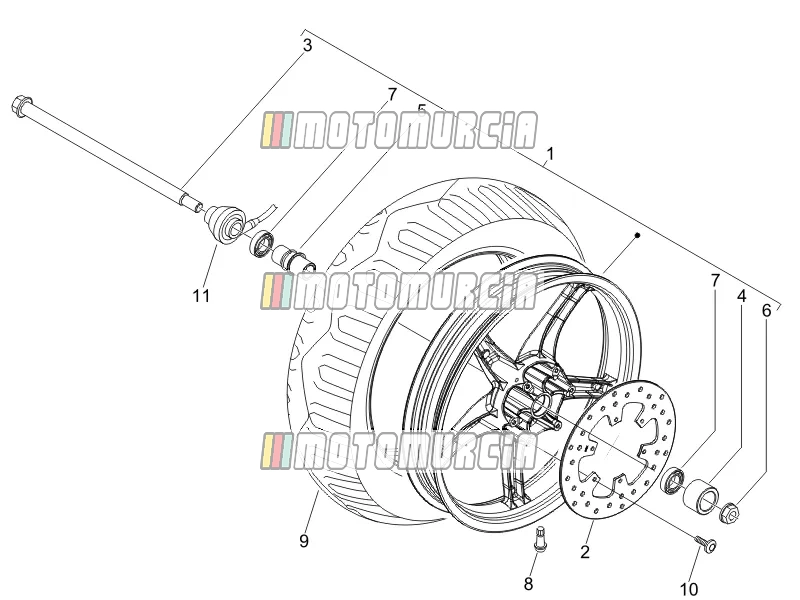

Exploded view — Front Wheel

‹ Back to model

Derbi Sonar 50 2T 2010

Products

1 Front wheel unit 56367R No longer available

56367R Front wheel unit
No longer available

2 Brake disc Available 56484R

Brake Disk Piaggio Group · 56484R Available

€ 85,66

3 Wheel axle Available CM076903

Wheel Axle front Piaggio Group · CM076903 Available

€ 31,98

4 Spacer Available 649913

Spacer Piaggio Group · 649913 Available

€ 14,50

5 Spacer Backorder 599643

Spacer Piaggio Group · 599643 Backorder

€ 16,09

6 Nut Available 271740

Standard nut M12 Piaggio Group · 271740 Available

€ 2,47

7 Wheel bearing Available 649910

Ball bearing 6202 C-2HRS, 15x35x11 mm Piaggio Group · 649910 · Quantity needed: 2 Available

€ 18,00

8 Tubeless tyre valve Available 270991

Tyre valves Piaggio Group · 270991 Available

€ 6,80

9 Tyre 90/80-16" Pirelli 564214 No longer available

564214 Tyre 90/80-16" Pirelli
No longer available
597814 Tyre 90/80-16" Cheng Shin
No longer available
Tyres 90/80-16, 52J, TL Piaggio Group · 562199 Available

€ 91,62

10 Screw Available 623920

Torx screw M6x20 Piaggio Group · 623920 · Quantity needed: 6 Available

€ 1,48

11 Kilometre counter movement socket Available 1C005023

Speedo drive Piaggio Group · 1C005023 Available

€ 20,52
