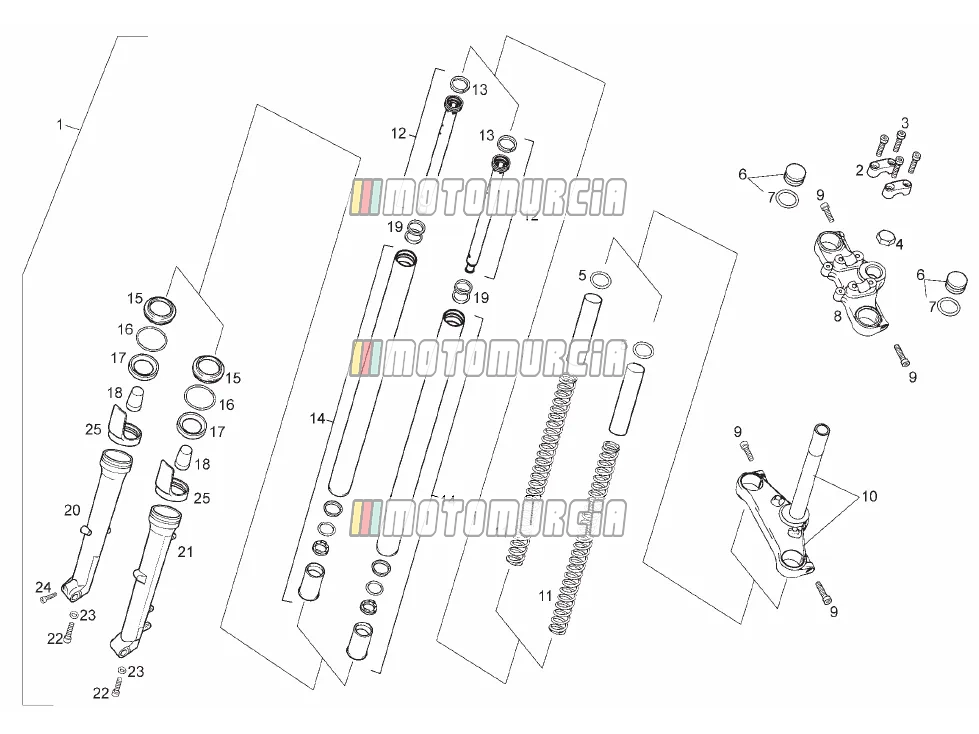

Exploded view — Front Fork

Products

1 CTO.HORQUILLA TER125 863267 No longer available

• 863267 CTO.HORQUILLA TER125
  No longer available

2 U-bolt Backorder 863144

•

  Clamp Piaggio Group · 863144 Backorder

  € 44,73

  Add to cart

3 Screw Backorder 863143

•

  Allen screw M8x40 Piaggio Group · 863143 Backorder

  € 11,56

  Add to cart

4 Nut 864316 No longer available

• 864316 Nut
  No longer available

5 Washer 863162 No longer available

• 863162 Washer
  No longer available

6 Cover Available 863148

•

  Plug Piaggio Group · 863148 Available

  € 79,74

  Add to cart

7 O-Ring Backorder 863146

•

  O-Ring Piaggio Group · 863146 Backorder

  € 8,91

  Add to cart

8 Upper plate Backorder 863150

•

  Yoke Piaggio Group · 863150 Backorder

  € 235,95

  Add to cart

9 Screw Backorder 863149

•

  Allen screw M8x35 Piaggio Group · 863149 Backorder

  € 8,57

  Add to cart

10 Stem base Backorder 863151

•

  Fork yoke Piaggio Group · 863151 Backorder

  € 568,75

  Add to cart

11 R-MUELLE HORQU.TER125 864524 No longer available

• 864524 R-MUELLE HORQU.TER125
  No longer available

12 R-SCTO.TUBO HIDRAULICO TER125 864526 No longer available

• 864526 R-SCTO.TUBO HIDRAULICO TER125
  No longer available

13 Ring Backorder 863147

•

  O-Ring Piaggio Group · 863147 Backorder

  € 8,57

  Add to cart

14 CTO.HORQUILLA TER125 863267 No longer available

• 863267 CTO.HORQUILLA TER125
  No longer available

15 Fork dust seal Backorder 863160

•

  Dust guard Piaggio Group · 863160 Backorder

  € 52,95

  Add to cart

16 Stop ring Available 863161

•

  Locking Ring Piaggio Group · 863161 Available

  € 8,57

  Add to cart

17 Fork oil seal Available 863157

•

  Fork Seal NOK, 37x49x10,5 mm Piaggio Group · 863157 Available

  € 64,55

  Add to cart

18 Ring nut Backorder 863164

•

  Grooved nut Piaggio Group · 863164 Backorder

  € 49,43

  Add to cart

19 Spring 863163 No longer available

• 863163 Spring
  No longer available

20 R-PRNA.DR.HORQU.HORQ.TER125 864519 No longer available

• 864519 R-PRNA.DR.HORQU.HORQ.TER125
  No longer available

21 R-PRNA.IZ.HORQU.HORQ.TER125 864520 No longer available

• 864520 R-PRNA.IZ.HORQU.HORQ.TER125
  No longer available

22 R-TORNILLO M10X35 864525 No longer available

• 864525 R-TORNILLO M10X35
  No longer available

23 Washer 863159 No longer available

• 863159 Washer
  No longer available

24 R-TORNILLO M8X25 Available 864521

•

  Screw M8x25 Piaggio Group · 864521 Available

  € 6,33

  Add to cart

25 R-PROTECT.TUBO HORQU.TER125 864522 No longer available

• 864522 R-PROTECT.TUBO HORQU.TER125
  No longer available
