Exploded view — Frame/bodywork

‹ Back to model
Derbi Terra 50 E3 - Terra 50 Adventure E3 2008 Derbi Terra 50 E3 - Terra 50 Adventure E3 2008

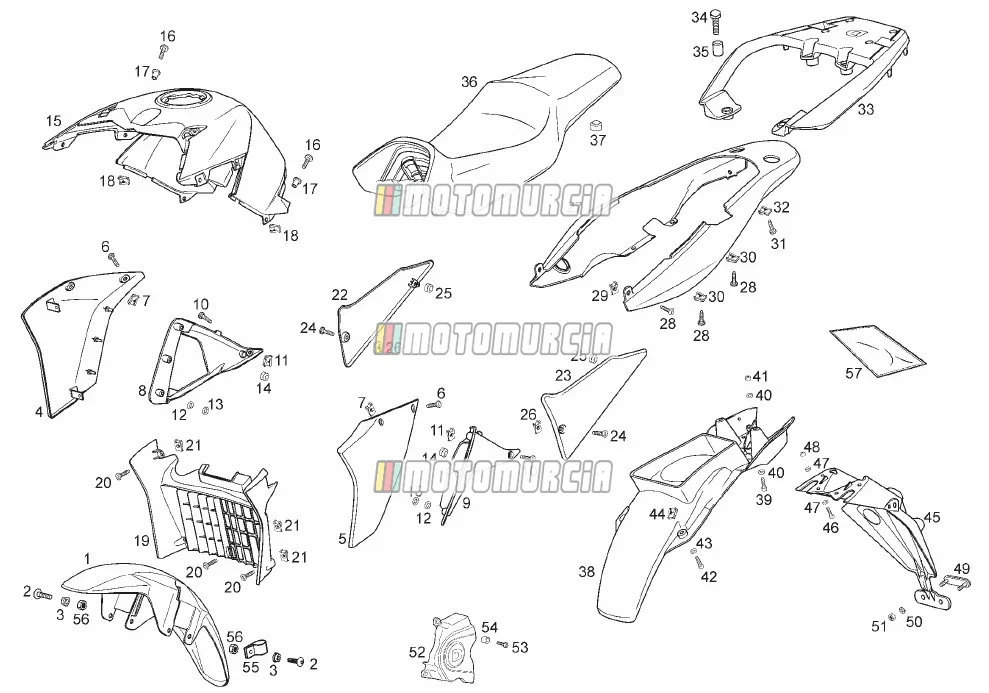

Frame/bodywork

Products

1 GUARDAB.DLNT.TER125 ADV Backorder 864958
  • Mudguard front Piaggio Group · 864958 Backorder · Shipped in 2–4 weeks
    € 12,10
2 Screw Available 00H01503701
  • Screw Piaggio Group · 00H01503701 Available · Shipped in 3–5 working days
    € 5,83
3 Ring nut Available 00N01000821
  • Standard nut Piaggio Group · 00N01000821 Available · Shipped in 3–5 working days
    € 8,57
4 COVER DLNT.DR.BLN.AJD.TER125 ADV 86321600WB1 No longer available
  • 86321600WB1 COVER DLNT.DR.BLN.AJD.TER125 ADV
    No longer available
5 Left side cover.BLN.AJD.TER125 ADV 86321700WB1 No longer available
  • 86321700WB1 Left side cover.BLN.AJD.TER125 ADV
    No longer available
6 Screw Available AP8152339
  • Flanged Screw M5x9 Piaggio Group · AP8152339 Available · Shipped in 3–5 working days
    € 2,35
7 Nut D5 Available 00H01500691
  • 00H01500691 Nut D5
    Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
8 TAPA LAT.INF.DR.DPSTO.TER125 Available 863222
  • Side Fairing, right Piaggio Group · 863222 Available · Shipped in 3–5 working days
    € 30,90
9 TAPA LAT.INF.IZ.DPSTO.TER125 Backorder 863221
  • Side Fairing, left Piaggio Group · 863221 Backorder · Shipped in 2–4 weeks
    € 30,90
10 Screw Available AP8152339
  • Flanged Screw M5x9 Piaggio Group · AP8152339 Available · Shipped in 3–5 working days
    € 2,35
11 Nut D5 Available 00H01500691
  • 00H01500691 Nut D5
    Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
12 Washer Available 00H01500741
  • 00H01500741 Washer
    Washer Piaggio Group · AP8120622 ↻ Replaces 00H01500741, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,59
13 Washer Available 00G06300671
  • 00G06300671 Washer
    Shim Ø 5,00 mm, inox Piaggio Group · 861239 ↻ Replaces 00G06300671, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,77
14 TOPE INT.CAREN.GPR RAC. 00H06303771 No longer available
  • 00H06303771 TOPE INT.CAREN.GPR RAC.
    No longer available
15 Fuel tank cover B.AJD.TER125 ADV 86321900WB1 No longer available
  • 86321900WB1 Fuel tank cover B.AJD.TER125 ADV
    No longer available
16 Screw Available 00H01503701
  • Screw Piaggio Group · 00H01503701 Available · Shipped in 3–5 working days
    € 5,83
17 Bush Available 864109
  • Sleeve Piaggio Group · 864109 Available · Shipped in 3–5 working days
    € 17,85
18 Nut D6 Available 00D01501371
  • 00D01501371 Nut D6
    Sheet nut Piaggio Group · 254485 ↻ Replaces 00D01501371, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,04
19 REJILLA RADIADOR TER125 Backorder 863227
  • Ventilation Grill Piaggio Group · 863227 Backorder · Shipped in 2–4 weeks
    € 54,57
20 Screw Available AP8152339
  • Flanged Screw M5x9 Piaggio Group · AP8152339 Available · Shipped in 3–5 working days
    € 2,35
21 Nut D5 Available 00H01500691
  • 00H01500691 Nut D5
    Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
22 TAPA LATRL.DR.CAJA FILTRO TER125 864051 No longer available
  • 864051 TAPA LATRL.DR.CAJA FILTRO TER125
    No longer available
23 TAPA LATRL.IZ.CAJA FILTRO TER125 Backorder 864052
  • Side Fairing, left Piaggio Group · 864052 Backorder · Shipped in 2–4 weeks
    € 42,64
24 Screw Available AP8152339
  • Flanged Screw M5x9 Piaggio Group · AP8152339 Available · Shipped in 3–5 working days
    € 2,35
25 Damper Backorder 2B005447
  • Rubber Piaggio Group · 2B005447 Backorder · Shipped in 2–4 weeks
    € 5,98
26 Nut D5 Available 00H01500691
  • 00H01500691 Nut D5
    Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
27 COLIN SILLIN BLN.AJD.TER125 ADV 86322800WB1 No longer available
  • 86322800WB1 COLIN SILLIN BLN.AJD.TER125 ADV
    No longer available
28 Screw Available AP8152339
  • Flanged Screw M5x9 Piaggio Group · AP8152339 Available · Shipped in 3–5 working days
    € 2,35
29 Nut D5 Available 00H01500691
  • 00H01500691 Nut D5
    Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
30 Clip nuts (M5) Available 00G04401462
  • Sheet nut M5 Piaggio Group · 00G04401462 Available · Shipped in 3–5 working days
    € 1,48
31 Screw Available 00008061500
  • Screw M6 Piaggio Group · 00008061500 Available · Shipped in 3–5 working days
    € 0,99
32 Nut D6 Available 00D01501371
  • 00D01501371 Nut D6
    Sheet nut Piaggio Group · 254485 ↻ Replaces 00D01501371, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,04
33 Rear luggage rack. Black grip. API. TER125 86322600WN1 No longer available
  • 86322600WN1 Rear luggage rack. Black grip. API. TER125
    No longer available
34 Screw 00006083000 No longer available
  • 00006083000 Screw
    No longer available
35 CASQ.FIJ.PORTAPAQ.TER125 864131 No longer available
  • 864131 CASQ.FIJ.PORTAPAQ.TER125
    No longer available
36 CTO.SILLIN TER125 8632640001 No longer available
  • 8632640001 CTO.SILLIN TER125
    No longer available
37 Silent-block 862000 No longer available
  • 862000 Silent-block
    No longer available
38 GUARDAB.TRASERO TER125 863223 No longer available
  • 863223 GUARDAB.TRASERO TER125
    No longer available
39 Screw M8x15 allen head Available 00002051551
  • 00002051551 Screw M8x15 allen head
    Screw Piaggio Group · 847227 ↻ Replaces 00002051551, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 6,70
40 Washer Available 00402060001
  • Shim Ø 6,00 mm Piaggio Group · 00402060001 Available · Shipped in 3–5 working days
    € 1,48
41 Nut M8 Available 00000023051
  • 00000023051 Nut M8
    Standard nut Piaggio Group · 00000023050 ↻ Replaces 00000023051, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,69
42 Screw M8x15 allen head Available 00002051551
  • 00002051551 Screw M8x15 allen head
    Screw Piaggio Group · 847227 ↻ Replaces 00002051551, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 6,70
43 Washer Available 00402060001
  • Shim Ø 6,00 mm Piaggio Group · 00402060001 Available · Shipped in 3–5 working days
    € 1,48
44 Nut D5 Available 00H01500691
  • 00H01500691 Nut D5
    Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
45 COMPLETE REAR COVER 863224 No longer available
  • 863224 COMPLETE REAR COVER
    No longer available
46 Screw M8x15 allen head Available 00002051551
  • 00002051551 Screw M8x15 allen head
    Screw Piaggio Group · 847227 ↻ Replaces 00002051551, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 6,70
47 Washer Available 00H03800722
  • Shim Piaggio Group · 00H03800722 Available · Shipped in 3–5 working days
    € 1,75
48 Nut M8 Available 00000023051
  • 00000023051 Nut M8
    Standard nut Piaggio Group · 00000023050 ↻ Replaces 00000023051, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,69
49 Reflector Available 00G04403752
  • 00G04403752 Reflector
    Reflector red Piaggio Group · AP8124718 ↻ Replaces 00G04403752, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 17,36
50 Washer Available 00D02600631
  • 00D02600631 Washer
    Washer Piaggio Group · 847181 ↻ Replaces 00D02600631, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 21,21
51 Nut Backorder 00000023040
  • Standard nut Piaggio Group · 00000023040 Backorder · Shipped in 2–4 weeks
    € 2,77
52 Sprocket cover Available 863250
  • Cover Piaggio Group · 863250 Available · Shipped in 3–5 working days
    € 32,96
53 Screw Available 00006051500
  • Screw M5 Piaggio Group · 00006051500 Available · Shipped in 3–5 working days
    € 2,09
54 Spacer Available 00H01600911
  • Spacer Piaggio Group · 00H01600911 Available · Shipped in 3–5 working days
    € 1,83
55 Flange Available 00H02200591
  • 00H02200591 Flange
    Clamp Piaggio Group · 864454 ↻ Replaces 00H02200591, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,63
56 Nut Available 00000023060
  • Standard nut M6 Piaggio Group · 00000023060 Available · Shipped in 3–5 working days
    € 0,99
57 KIT DECALS TERRA ADVENTURE Backorder 865487
  • Decal kit Piaggio Group · 865487 Backorder · Shipped in 2–4 weeks
    € 121,59

More drawings of this model

View all →
