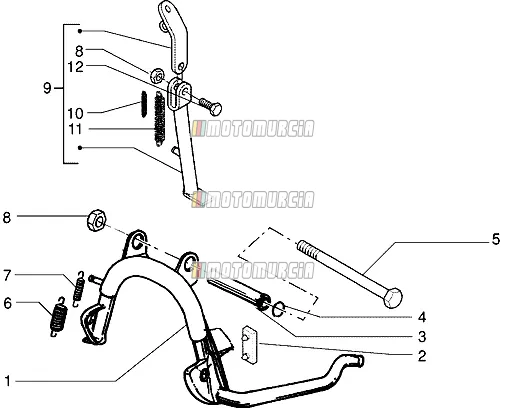

Exploded view — Main Stand / Sidestand

Products

1 Main Stand comp. 582941 No longer available

• 582941 Main Stand comp.
  No longer available

2 Rubber, stand stopper Available 581560

•

  Rubber stop Piaggio Group · 581560 Available · Shipped in 3–5 working days

  € 3,24

  Add to cart

3 Spacer Available 582298

•

  Spacer Piaggio Group · 582298 Available · Shipped in 3–5 working days

  € 16,90

  Add to cart

4 O-Ring Available 273754

•

  O-Ring Piaggio Group · 273754 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Screw Available 030115

•

  Hexagon Screw M10x130 Piaggio Group · 030115 Available · Shipped in 3–5 working days

  € 4,09

  Add to cart

6 Spring Available 581249

•

  Spring for main stand Piaggio Group · 581249 Available · Shipped in 3–5 working days

  € 7,31

  Add to cart

7 Spring Available 581248

•

  Spring for main stand Piaggio Group · 581248 Available · Shipped in 3–5 working days

  € 8,76

  Add to cart

8 Self-locking nut M10 Available 232108

• 232108 Self-locking nut M10 Quantity needed: 2


  Standard nut M10 Piaggio Group · 002440 ↻ Replaces 232108, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,11

  Add to cart

9 Not available Available 970208

• 970208 Not available


  Side Stand Piaggio Group · 583983 ↻ Replaces 970208, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 55,06

  Add to cart

10 Spring Backorder 463652

•

  Spring for side stand Piaggio Group · 463652 Backorder · Shipped in 2–4 weeks

  € 16,48

  Add to cart

11 Spring Backorder 463653

•

  Spring for side stand Piaggio Group · 463653 Backorder · Shipped in 2–4 weeks

  € 16,48

  Add to cart

12 Screw 463654 No longer available

• 463654 Screw Quantity needed: 2
  No longer available
