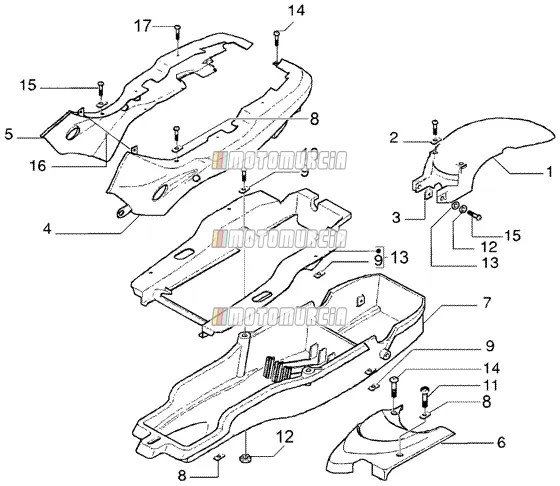

Exploded view — Rear Mudguard-undersaddle
‹ Back to model
Gilera DNA 2000
Products
1 Mudguard
-
620222000C MudguardNo longer available
2 Clip nuts Available
-
Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
3 Clip nuts (M6) Available
-
- Year of manufacture: 2012
- Year of manufacture: 2013
Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,04
4 Fairing,lh.
-
57668300BM Fairing,lh.No longer available
-
57668300EE Fairing,lh.No longer available
5 Fairing,rh.
-
62020200BM Fairing,rh.No longer available
-
62020200EE Fairing,rh.No longer available
6 Carburettor cover
-
970214000C Carburettor coverNo longer available
7 Float chamber
-
970125000C Float chamberNo longer available
8 Clip nuts Available
-
Sheet nut Piaggio Group · CM017410 · Quantity needed: 5 Available · Shipped in 3–5 working days€ 0,99
9 Plate Available
-
CM017407 Plate Quantity needed: 12Sheet nut Piaggio Group · CM017409 ↻ Replaces CM017407, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,48
10 Screw Available
-
259166 Screw Quantity needed: 2Screw Piaggio Group · 1B000678 ↻ Replaces 259166, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 0,99
11 Screw Available
-
- Red version
Sheet Metal Screw Piaggio Group · 297498 Available · Shipped in 3–5 working days€ 0,99
12 Nut Available
-
- Country: China
- Country: Indonesia
- Country: Taiwan
Standard nut M6 Piaggio Group · 020106 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,84
13 RIM
-
970268 RIMNo longer available
14 Screw Available
-
Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 5 Available · Shipped in 3–5 working days€ 0,99
15 Screw (M6x16) Available
-
Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
16 Clip nuts (M6) Available
-
- Year of manufacture: 2012
- Year of manufacture: 2013
Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days€ 2,04
17 Self-tap screw Available
-
576189 Self-tap screw Quantity needed: 12Screw 4,2x13 mm Piaggio Group · 259349 ↻ Replaces 576189, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 0,99
