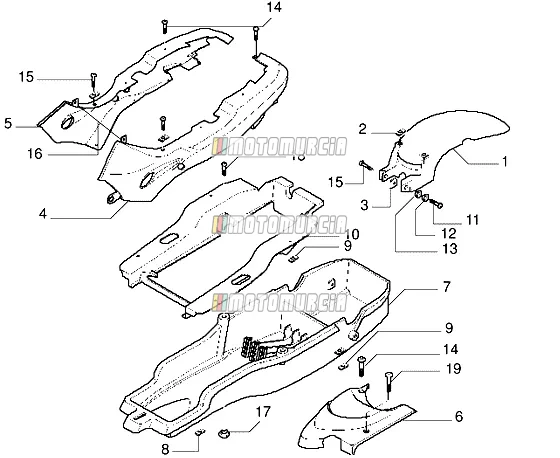

Exploded view — Rear Mudguard-undersaddle

‹ Back to model
Gilera DNA 50 2000 Gilera DNA 50 2000
Rear Mudguard-undersaddle

Products

1 Mudguard 6202220090 No longer available
  • 6202220090 Mudguard
    No longer available
2 Plate Available 196272
  • 196272 Plate Quantity needed: 2
    Sheet nut Piaggio Group · CM017409 ↻ Replaces 196272, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
3 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,04
4 Fairing 5766835033 No longer available
  • 5766835033 Fairing
    No longer available
  • 5766835090 Fairing
    No longer available
  • 57668350G9 Fairing,lh.
    No longer available
  • 57668350R7 Fairing
    No longer available
5 Not available 6202020033 No longer available
6 Carburettor Cover 9702140090 No longer available
  • 9702140090 Carburettor Cover
    No longer available
7 Float chamber 9701250090 No longer available
  • 9701250090 Float chamber
    No longer available
8 Plate Available 196272
  • 196272 Plate Quantity needed: 2
    Sheet nut Piaggio Group · CM017409 ↻ Replaces 196272, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
9 Plate Available 196272
  • 196272 Plate Quantity needed: 12
    Sheet nut Piaggio Group · CM017409 ↻ Replaces 196272, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
10 RIM 970268 No longer available
  • 970268 RIM
    No longer available
11 Screw Available 018640
  • Screw M6x50 Piaggio Group · 018640 Available · Shipped in 3–5 working days
    € 0,99
12 Washer Available 003056
    • Enjoy 2015
    Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days
    € 1,84
13 Washer Available 012533
  • Washer 6,6x11 mm Piaggio Group · 012533 Available · Shipped in 3–5 working days
    € 1,45
14 Screw Available 259349
  • Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 16 Available · Shipped in 3–5 working days
    € 0,99
15 Screw (M6x16) Available 575249
  • Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
16 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,04
17 Nut Available 576986
  • 576986 Nut Quantity needed: 4
    Dome nut Piaggio Group · 479175 ↻ Replaces 576986, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
18 Screw M6x40 Available 272624
  • 272624 Screw M6x40 Quantity needed: 2
    Torx screw Piaggio Group · CM179304 ↻ Replaces 272624, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
19 Screw Available 297498
    • Red version
    Sheet Metal Screw Piaggio Group · 297498 Available · Shipped in 3–5 working days
    € 0,99
