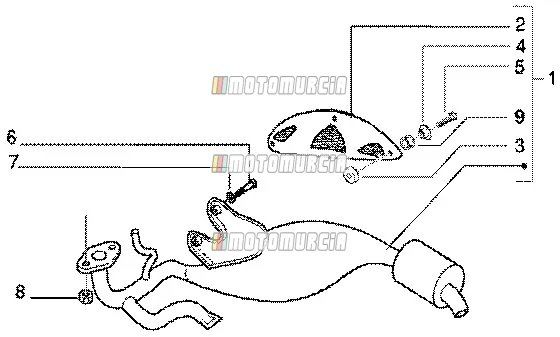

Exploded view — Exhaust System

Products

1 Silencer 832300 No longer available

• 832300 Silencer
  No longer available
• 833650 SCTO.TUBO ESC-SIL.PR.02 WV.PG
  No longer available

2 Guard Backorder 827340

•

  Heat Shield Piaggio Group · 827340 Backorder · Shipped in 2–4 weeks

  € 41,19

  Add to cart

3 Spacer Available 826117

• • Switzerland version E3
  • Year of manufacture: 2011


  Washer Piaggio Group · 826117 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,32

  Add to cart

4 Spacer Available 826118

• • New version
  • Switzerland version E3
  • Year of manufacture: 2011


  Washer Piaggio Group · 826118 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

5 Screw Available 433800

•

  Screw M5x10 Piaggio Group · 433800 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

6 Screw Available 483743

• 483743 Screw Quantity needed: 2


  Screw M8x75 Piaggio Group · 845591 ↻ Replaces 483743, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,80

  Add to cart

7 Flat washer Available 483164

• 483164 Flat washer Quantity needed: 2


  Washer 16x8,2x2,2 mm Piaggio Group · 834187 ↻ Replaces 483164, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,31

  Add to cart

8 Nut Available 288245

• • Taiwan version


  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

9 Spacer Available 488045

•

  Spacer disc plastic Piaggio Group · 488045 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 3,13

  Add to cart
