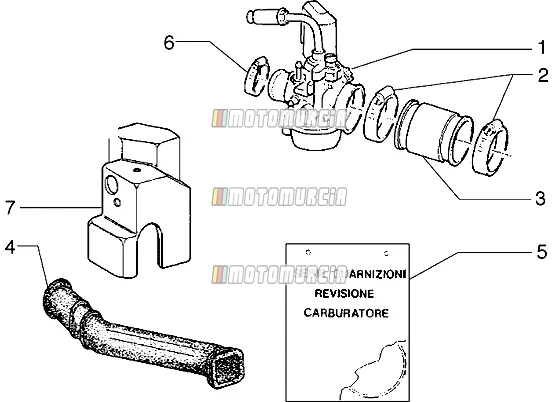

Exploded view — Carburettor

Products

1 Carburettor 82638R No longer available

• 82638R Carburettor
  No longer available
• 833656 Carburettor PHVA17,5 RD (8423)


  Carburettor PHVA 17,5 Piaggio Group · 874672 ↻ Replaces 833656, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 292,75

  Add to cart

2 Hose Clamp Available 109960

• 109960 Hose Clamp Quantity needed: 2


  Cable Ties length: 27,7cm Piaggio Group · 257134 ↻ Replaces 109960, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

3 Air bellow Available 436096

•

  Bushing Piaggio Group · 436096 Available · Shipped in 3–5 working days

  € 12,33

  Add to cart

4 Air duct Available 488129

•

  Hose Piaggio Group · 488129 Available · Shipped in 3–5 working days

  € 17,44

  Add to cart

5 Gasket envelope (Dellorto PHVA) Available 498409

•

  Carburettor Gasket Kit Dell Orto Piaggio Group · 498409 Available · Shipped in 3–5 working days

  € 15,11

  Add to cart
•

  Carburettor Gasket Kit Weber Piaggio Group · 498475 Available · Shipped in 3–5 working days

  € 23,11

  Add to cart

6 Clamp Available 825865

•

  Clamp Piaggio Group · 825865 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart
• 842202 Hose Clamp
  No longer available

7 Hood for carburettor Available 832186

•

  Bonnet Piaggio Group · 832186 Available · Shipped in 3–5 working days

  € 19,03

  Add to cart
