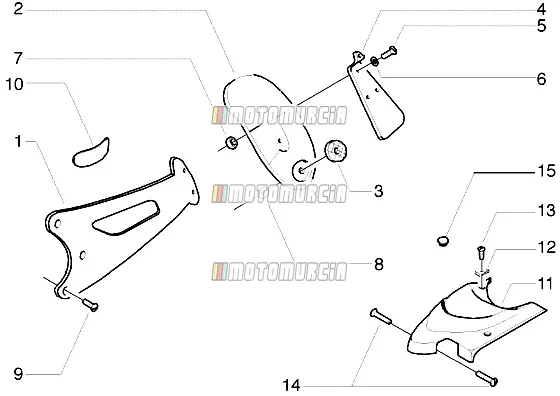

Exploded view — Splash Guard Bracket-carburettor Cover

Products

1 Bracket Available 57673400B9

• 57673400B9 Bracket


  Bracket Piaggio Group · 959526000C ↻ Replaces 57673400B9, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 84,68

  Add to cart

2 Mudguard rear Available 576588000C

•

  Mudguard rear Piaggio Group · 576588000C Available · Shipped in 3–5 working days

  € 48,99

  Add to cart

3 Reflector Available 582922

•

  Reflector Piaggio Group · 582922 Available · Shipped in 3–5 working days

  € 11,34

  Add to cart

4 License plate 5829234 No longer available

• 5829234 License plate
  No longer available

5 Screw Available 272836

• • Country: United States of America


  Screw M6x16 Piaggio Group · 272836 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,39

  Add to cart

6 Washer Available 016406

• • Taiwan


  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

7 Nut Available 020006

•

  Standard nut M6 Piaggio Group · 020006 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,52

  Add to cart

8 Plate Available 180859

• • Country: Australia
  • Country: New Zealand
  • Country: Taiwan


  Snap-in Ring Piaggio Group · 180859 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

9 Screw Available 414835

• 414835 Screw Quantity needed: 3


  Flanged Screw M6x45 Piaggio Group · B017632 ↻ Replaces 414835, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

10 Name plate 57711200RD No longer available

• 57711200RD Name plate
  No longer available

11 Tyre 576572 No longer available

• 576572 Tyre
  No longer available

12 Spring, plate Available 184142

• 184142 Spring, plate


  Sheet nut Piaggio Group · CM017410 ↻ Replaces 184142, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

13 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

14 Self-tap screw Available 576189

• 576189 Self-tap screw Quantity needed: 2


  Screw 4,2x13 mm Piaggio Group · 259349 ↻ Replaces 576189, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

15 Cover Available 562897

•

  Covering Cap Piaggio Group · 562897 Available · Shipped in 3–5 working days

  € 1,69

  Add to cart

16 Screw M4x14 Available 018591

• 018591 Screw M4x14 Quantity needed: 3
  • Switzerland version E3
  • Year of manufacture: 2011
  • Country: Australia
  • Country: New Zealand


  Screw M4x12 Piaggio Group · 015996 ↻ Replaces 018591, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

17 Washer (spring) Available 016404

• • Switzerland version E3
  • Year of manufacture: 2011


  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

18 Washer Available 013763

• • Switzerland version E3
  • Year of manufacture: 2011
  • Country: Australia
  • Country: China
  • Country: Indonesia


  Washer 4,2x12x1 mm Piaggio Group · 013763 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

19 Plastic license plate Available 5801244

• 5801244 Plastic license plate


  License Plate Holder 130x105,5 mm, plastic Piaggio Group · 642235 ↻ Replaces 5801244, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 32,37

  Add to cart

20 Nut M4 Available 020104

• • Switzerland version E3
  • Year of manufacture: 2011


  Standard nut Piaggio Group · 020104 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
