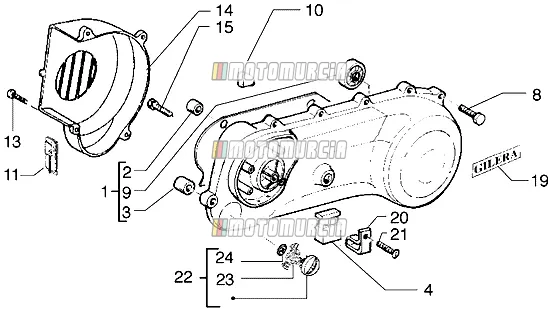

Exploded view — Transmission Cover
‹ Back to model
Gilera Ice 2004
Products
1 Transmission cover Backorder
-
Housing cover Piaggio Group · 4822975 Backorder · Shipped in 2–4 weeks€ 111,59
2 Bush Available
-
Bronze Bushes Piaggio Group · 286209 Available · Shipped in 3–5 working days€ 2,93
3 Bush Available
-
286143 BushBronze Bushes 8x12x8 Piaggio Group · 431860 ↻ Replaces 286143, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,65
4 Stand end stop Available
-
Rubber stop Piaggio Group · 463872 Available · Shipped in 3–5 working days€ 3,18
8 Screw Available
-
- iGET version
Screw M6x35 Piaggio Group · 414838 · Quantity needed: 14 Available · Shipped in 3–5 working days€ 1,48
9 Bearing Available
-
Ball bearing 638 Z, 8x28x9 mm Piaggio Group · 82521R Available · Shipped in 3–5 working days€ 23,82
10 Pad Available
-
Rubber stop Piaggio Group · 286207 Available · Shipped in 3–5 working days€ 2,23
11 Fairlead Available
-
Cable Guide Piaggio Group · 827425 Available · Shipped in 3–5 working days€ 3,42
13 Screw Available
-
- Injection version (C361M)
Screw M5x21 Piaggio Group · 015856 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
14 Scroll cover Available
-
827423 Scroll coverFan Housing Cover Piaggio Group · 833817 ↻ Replaces 827423, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 37,67
-
Fan Housing Cover Piaggio Group · 833817 Available · Shipped in 3–5 working days€ 37,67
15 Screw Available
-
414835 Screw Quantity needed: 8Flanged Screw M6x45 Piaggio Group · B017632 ↻ Replaces 414835, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 2,77
19 Name plate
-
483510 Name plateNo longer available
20 Plate Available
-
- Type approval ZD4TGB***
Plate Piaggio Group · 564497 Available · Shipped in 3–5 working days€ 1,45
21 Flanged hexagon screw M6x25 Available
-
414837 Flanged hexagon screw M6x25
- ABS version
- Year of manufacture: 2009
Hexagon Screw M6x25 Piaggio Group · B016774 ↻ Replaces 414837, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,48
22 Plug with filter Available
-
826442 Plug with filterCover with filter, for secondary air system Piaggio Group · 848860 ↻ Replaces 826442, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 5,31
23 Filter Available
-
Filter Insert Piaggio Group · 826462 Available · Shipped in 3–5 working days€ 1,73
24 Spring plate Available
-
- Taiwan version
Sheet nut Piaggio Group · 181351 Available · Shipped in 3–5 working days€ 1,26
