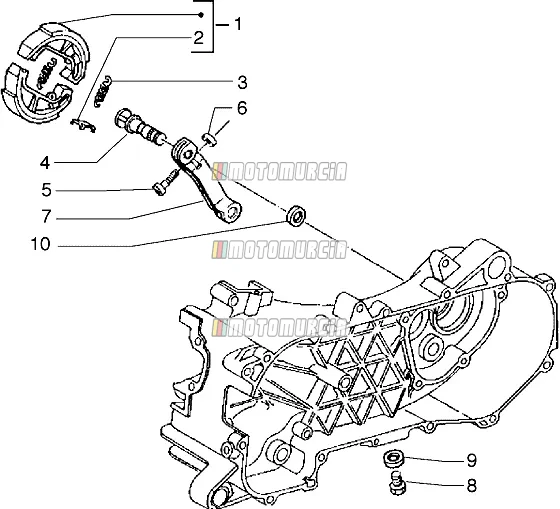

Exploded view — Brake Lever
‹ Back to model
Gilera Ice 2005
Products
1 Pair of brake shoes Available
-
2736235 Pair of brake shoesBrake shoe set Piaggio Group · 82907R ↻ Replaces 2736235, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 24,10
2 Plate Available
-
Plate Piaggio Group · 266724 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 36,11
3 Brake shoe return spring Available
-
266725 Brake shoe return spring Quantity needed: 2Brake shoe spring Piaggio Group · 647384 ↻ Replaces 266725, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 2,02
4 Brake lever shaft Available
-
274245 Brake lever shaftBrake cam Piaggio Group · B014502 ↻ Replaces 274245, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 54,72
5 Flange bolt Backorder
-
- From engine AY032123
SCREW W/FLANGE Piaggio Group · 828863 Backorder · Shipped in 2–4 weeks€ 0,99
6 Nut Available
-
Square nut Piaggio Group · 828862 Available · Shipped in 3–5 working days€ 2,31
7 Rear brake lever Available
-
Brake Lever Piaggio Group · 833428 Available · Shipped in 3–5 working days€ 9,72
8 Screw Available
-
- Country: China
Screw M8x12 Piaggio Group · 269755 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,59
9 Gasket Available
-
000397 Gasket Quantity needed: 2Washer 8,2x12x1 mm Piaggio Group · 485703 ↻ Replaces 000397, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,25
10 Gasket ring Available
-
Oil seal Piaggio Group · 273419 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,82
