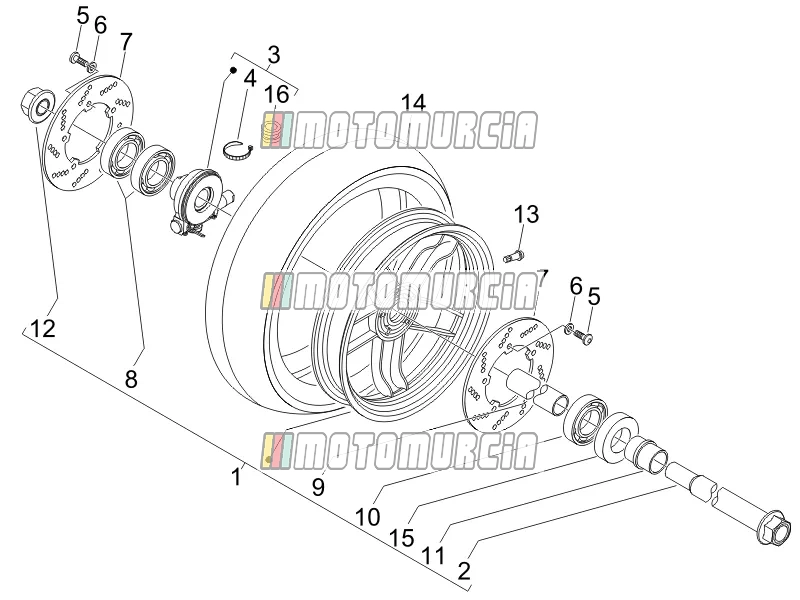

Exploded view — Front Wheel

Products

1 Front wheel 647776 No longer available

• 647776 Front wheel
  No longer available

2 Front wheel axle Front Available 564446

•

  Wheel Axle front Piaggio Group · 564446 Available

  € 137,04

  Add to cart

3 Sensor, unit Available 56436R

•

  Speedo drive Piaggio Group · 56436R Available

  € 141,36

  Add to cart

4 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

  € 1,43

  Add to cart

5 Screw Available 667152

•

  Screw M6x20 Piaggio Group · 667152 · Quantity needed: 10 Available

  € 1,48

  Add to cart

6 Washer Available 274706

•

  Washer Piaggio Group · 274706 · Quantity needed: 5 Available

  € 1,23

  Add to cart

7 Brake disc Available 56393R

•

  Brake Disk Piaggio Group · 56393R · Quantity needed: 2 Available

  € 94,33

  Add to cart

8 Wheel bearing Available 649910

•

  Ball bearing 6202 C-2HRS, 15x35x11 mm Piaggio Group · 649910 · Quantity needed: 2 Available

  € 18,00

  Add to cart

9 Spacer Backorder 564447

•

  Spacer Piaggio Group · 564447 Backorder

  € 22,80

  Add to cart

10 Bearing Available 649911

•

  Radial bearing 6302 2RSH, 15x42x13 mm Piaggio Group · 649911 Available

  € 13,96

  Add to cart

11 Short spacer Backorder 564448

•

  Spacer Piaggio Group · 564448 Backorder

  € 14,47

  Add to cart

12 Nut Available 271740

•

  Standard nut M12 Piaggio Group · 271740 Available

  € 2,47

  Add to cart

13 Tubeless valve Available 597679

•

  Tyre valves TR 412 Piaggio Group · 597679 Available

  € 6,28

  Add to cart

14 Front/rear tyre PIRELLI 120/70-15 646864 No longer available

• 646864 Front/rear tyre PIRELLI 120/70-15
  No longer available
• 497633 Front/rear tyre Bridgeston 120/70-15
  No longer available

15 RH spacer Available 564489

•

  Spacer disc Piaggio Group · 564489 Available

  € 16,66

  Add to cart

16 Fairlead Available 563989

•

  Rubber bellows Piaggio Group · 563989 Available

  € 2,46

  Add to cart
