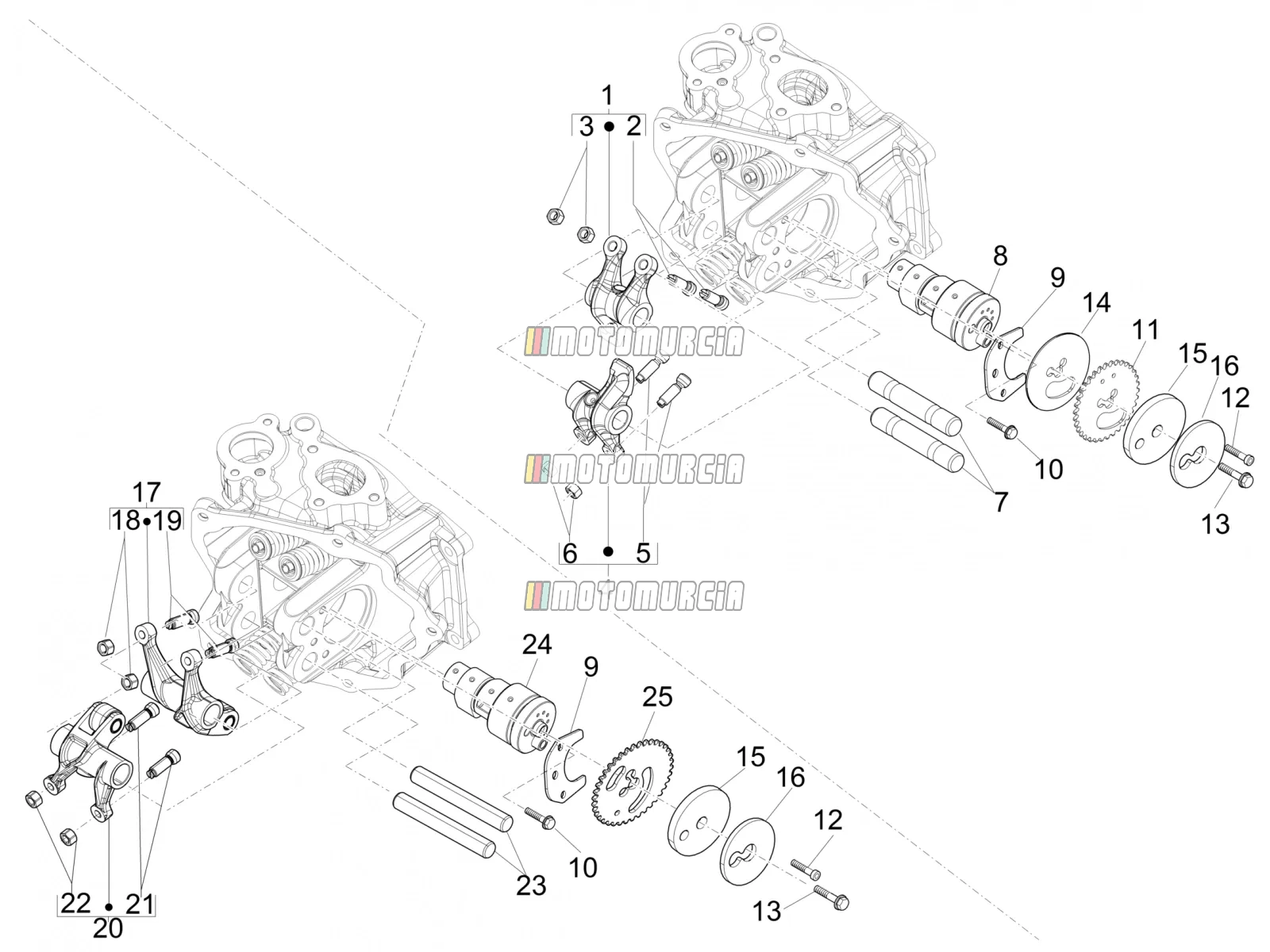

Exploded view — Rocking Levers Support Unit
‹ Back to model
Gilera Runner 125 ST 4T 2017
Products
1 Rocker arm (IN) Available
-
Rocker Arm Einlass Piaggio Group · B0184835 Available€ 340,19
2 Adjuster screw
-
82817R Adjuster screw Quantity needed: 2No longer available
4 Rocker arm (EX) Available
-
Exhaust rocker arm Piaggio Group · B0184845 Available€ 340,19
6 Nut Available
-
Standard nut Piaggio Group · 484819 · Quantity needed: 2 Available€ 1,52
7 Rocker arms axis Available
-
Rocker Arm Shaft Piaggio Group · 486343 · Quantity needed: 2 Available€ 22,93
8 Camshaft Available
-
Camshaft Piaggio Group · 8455185 Available€ 277,70
9 Camshaft plate Available
-
Flange Piaggio Group · 877309 Available€ 5,59
10 Screw Available
-
Flanged Screw Piaggio Group · 484123 · Quantity needed: 2 Available€ 0,99
11 Timing system gear
-
877771 Timing system gearNo longer available
12 Screw Available
-
Screw M5x25 Piaggio Group · 1A003115 Available€ 0,99
13 Screw Available
-
Flanged Screw M6x20 Piaggio Group · 018639 Available€ 2,77
14 Washer Backorder
-
Disk Piaggio Group · 877310 Backorder€ 2,35
-
487832 WasherNo longer available
15 Washer Available
-
Washer Piaggio Group · 830446 Available€ 5,13
16 Washer Available
-
Washer Piaggio Group · 830447 Available€ 4,67
17 Rocker arm (IN) Available
-
Intake rocker arm Piaggio Group · B019352 Available€ 181,50
20 Rocker arm (EX) Available
-
Exhaust rocker arm Piaggio Group · B019354 Available€ 181,50
21 Adjuster screw Available
-
Screw Piaggio Group · B019290 · Quantity needed: 2 Available€ 12,91
22 Rocker arm adjuster nut Available
-
Standard nut Piaggio Group · 879916 · Quantity needed: 2 Available€ 8,91
23 Rocker arms axis Available
-
Rocker Arm Shaft Piaggio Group · B019428 · Quantity needed: 2 Available€ 21,07
24 Camshaft Available
-
Camshaft Piaggio Group · 1A0026935 Available€ 233,25
25 Timing system gear Available
-
Rear Sprocket Piaggio Group · B014970 Available€ 16,69
