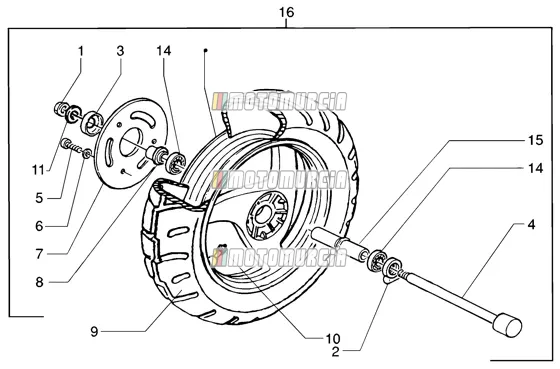

Exploded view — Front Wheel

Products

1 Nut Available 271740

•

  Standard nut M12 Piaggio Group · 271740 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

2 Speedometer Socket Available CM064502

• CM064502 Speedometer Socket


  Speedo drive Piaggio Group · 56147R6 ↻ Replaces CM064502, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 19,00

  Add to cart

3 Guard ring Available 271744

• 271744 Guard ring


  No description available Piaggio Group · 5644756 ↻ Replaces 271744, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,30

  Add to cart

4 Shaft 563446 No longer available

• 563446 Shaft
  No longer available

5 Hexagon convex big end screw M6x20 Available 271147

• 271147 Hexagon convex big end screw M6x20 Quantity needed: 5
  • No ABS version


  Screw M6x20 Piaggio Group · 667152 ↻ Replaces 271147, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

6 Washer Available 274706

•

  Washer Piaggio Group · 274706 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 1,23

  Add to cart

7 Brake disc Available 561714

•

  Brake Disk front Piaggio Group · 561714 Available · Shipped in 3–5 working days

  € 84,35

  Add to cart

  Alternatives from other brands



  Brake Disc Brembo · 68B40730 Available · Shipped in 4–7 working days

  € 104,42

  Add to cart



  Scooter Brake Disc EBC · MD956D Available · Shipped in 7–13 working days

  € 86,20

  Add to cart



  Scooter Brake Disc EBC · MD942D Available · Shipped in 7–13 working days

  € 110,53

  Add to cart

8 Spacer Available 271748

•

  Spacer Piaggio Group · 271748 Available · Shipped in 3–5 working days

  € 17,36

  Add to cart

9 Tyre 120/70-12" Pirelli 561761 No longer available

• 561761 Tyre 120/70-12" Pirelli
  No longer available
• 564021 Tyre 120/70-12" Pirelli
  No longer available
• 597248 Tyre
  No longer available

10 Tubeless tyre valve Available 270991

•

  Tyre valves Piaggio Group · 270991 Available · Shipped in 3–5 working days

  € 6,80

  Add to cart

11 Nut Available 271740

•

  Standard nut M12 Piaggio Group · 271740 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

14 Bearing Available 327187

• 327187 Bearing Quantity needed: 2


  Ball bearing 6202 C-2HRS, 15x35x11 mm Piaggio Group · 649910 ↻ Replaces 327187, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 18,00

  Add to cart

15 Spacer 563410 No longer available

• 563410 Spacer
  No longer available

16 Wheel Backorder 56440600E1

•

  Rim complete front, Suffix: E1_grey matt opaco 121 Piaggio Group · 56440600E1 Backorder · Shipped in 2–4 weeks

  € 376,37

  Add to cart
• 56440600R7 Wheel
  No longer available
