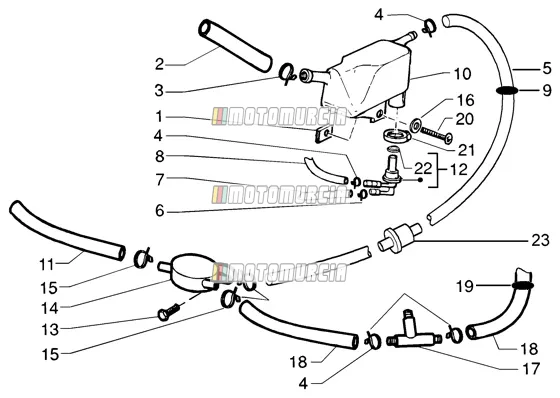

Exploded view — Fuel Supply System

‹ Back to model
Gilera Runner 125 VX 4T 2000 Gilera Runner 125 VX 4T 2000
Fuel Supply System

Products

1 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
2 Fuel Tube Available CM003901
  • CM003901 Fuel Tube
    Hose Piaggio Group · CM002205 ↻ Replaces CM003901, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 15,63
3 Clamp Available CM002912
    • Taiwan
    • Country: China
    • Country: Taiwan
    Clamping Spring Piaggio Group · CM002912 Available · Shipped in 3–5 working days
    € 0,99
4 Clamp Available CM002904
  • Clamping Spring Piaggio Group · CM002904 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
5 Fuel pipe CM004126 No longer available
  • CM004126 Fuel pipe
    No longer available
6 Clamp Available CM002901
    • Carburettor version (C364M)
    • Injection version (C361M)
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    • Country: Canada
    • Country: United States of America
    Clamping Spring Piaggio Group · CM002901 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
7 Fuel Tube Available CM001509
  • CM001509 Fuel Tube
    Petrol Hose length: 5m Piaggio Group · 1R000158 ↻ Replaces CM001509, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 28,28
8 Fuel pipe Available CM006105
  • Petrol Hose blue Piaggio Group · CM006105 Available · Shipped in 3–5 working days
    € 16,93
9 Damper Available 258904
  • Buffer Piaggio Group · 258904 Available · Shipped in 3–5 working days
    € 2,17
10 Fuel degaser 577871 No longer available
  • 577871 Fuel degaser
    No longer available
11 Fuel Tube CM004111 No longer available
  • CM004111 Fuel Tube
    No longer available
12 Fuel tap Available 577881
  • Petrol Tap Piaggio Group · 577881 Available · Shipped in 3–5 working days
    € 18,62
13 Metric screw M6x20 Available 259830
  • 259830 Metric screw M6x20
    Screw M6x22 Piaggio Group · CM179302 ↻ Replaces 259830, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
14 Feed pump Available 827894
  • 827894 Feed pump
    Petrol Pump Piaggio Group · CM120903 ↻ Replaces 827894, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 64,92
  • CM120901 Fuel pump
    Petrol Pump Piaggio Group · CM120903 ↻ Replaces CM120901, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 64,92
15 Clamp Available CM002907
  • Hose Clamp Piaggio Group · CM002907 Available · Shipped in 3–5 working days
    € 1,48
16 Washer Available 709077
  • Washer Piaggio Group · 709077 Available · Shipped in 3–5 working days
    € 0,99
17 Tee union Available 828325
    • Country: Canada
    • Country: China
    • Country: United States of America
    Connector Piaggio Group · 828325 Available · Shipped in 3–5 working days
    € 11,37
18 Fuel Tube Available CM001407
  • CM001407 Fuel Tube
    Breather Pipe length: 1,06m Piaggio Group · CM001432 ↻ Replaces CM001407, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 13,29
  • CM001424 Tank pipe Quantity needed: 2
    Breather Pipe length: 1,06m Piaggio Group · CM001432 ↻ Replaces CM001424, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 13,29
19 Ring 297378 No longer available
  • 297378 Ring
    No longer available
  • CM001406 Fuel pipe
    Breather Pipe length: 1,06m Piaggio Group · CM001432 ↻ Replaces CM001406, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 13,29
20 Metric screw M6x20 Available 259830
  • 259830 Metric screw M6x20
    Screw M6x22 Piaggio Group · CM179302 ↻ Replaces 259830, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
21 Hose Clamp Available 577557
  • 577557 Hose Clamp
    Clamp Piaggio Group · 879888 ↻ Replaces 577557, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 8,91
22 O-Ring Available 196868
  • Gasket Piaggio Group · 196868 Available · Shipped in 3–5 working days
    € 3,36
23 Fuel filter Available 270423
  • Petrol Filter Piaggio Group · 270423 Available · Shipped in 3–5 working days
    € 9,96
24 Spring Available 217280
  • 217280 Spring
    Clamp for on-board tools Piaggio Group · 298729 ↻ Replaces 217280, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,45
