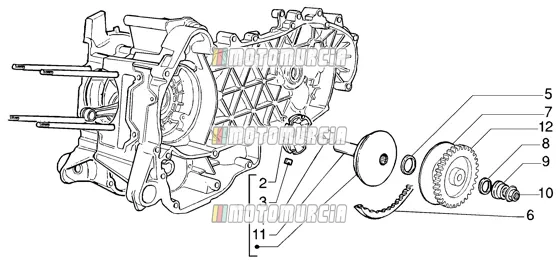

Exploded view — Half-pulley Assy., Driving

Products

1 Pulley, half Available CM103904

• CM103904 Pulley, half


  Variator with 6 rollers Piaggio Group · CM144403 ↻ Replaces CM103904, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 103,14

  Add to cart

2 Roller housing back plate Available 485710

•

  Calotte Piaggio Group · 485710 Available · Shipped in 3–5 working days

  € 15,22

  Add to cart

3 Sliding block Available 434855

• 434855 Sliding block Quantity needed: 3


  Slide Piaggio Group · 4348555 ↻ Replaces 434855, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,52

  Add to cart

4 Roller weights (7,3 g) Available CM1038045

• • 125 cc version


  Variator weights 19x17 mm, 7,4 g, Content: 6 Stk Piaggio Group · CM1038045 Available · Shipped in 3–5 working days

  € 18,68

  Add to cart

5 Washer Available 434885

• • Old version
  • Old version


  Shim Piaggio Group · 434885 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart

6 V-belt Available 832023

• 832023 V-belt


  V-Belt, Mitsuboshi Piaggio Group · 841213 ↻ Replaces 832023, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 66,65

  Add to cart
•

  V-Belt, Mitsuboshi Piaggio Group · 841213 Available · Shipped in 3–5 working days

  € 66,65

  Add to cart

7 Fixed driving half pulley Available 485118

• 485118 Fixed driving half pulley


  Pulley halves Piaggio Group · 845607 ↻ Replaces 485118, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 53,86

  Add to cart
• 834226 Fixed driving half pulley


  Pulley halves Piaggio Group · 845607 ↻ Replaces 834226, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 53,86

  Add to cart

8 Plain washer Available 433391

• • 125 cc version


  Shim Piaggio Group · 433391 Available · Shipped in 3–5 working days

  € 4,96

  Add to cart

9 Teethed bush Available 827386

• • 125 cc version


  Star disk 34,58x17,1x4 mm Piaggio Group · 827386 Available · Shipped in 3–5 working days

  € 17,81

  Add to cart

10 Flanged nut M12 Available 436783

• 436783 Flanged nut M12


  Standard nut Piaggio Group · B015804 ↻ Replaces 436783, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 8,00

  Add to cart

11 Spacer Available 483889

•

  Converter Hub Piaggio Group · 483889 Available · Shipped in 3–5 working days

  € 39,86

  Add to cart

12 Starting ring gear with limiting device 827656 No longer available

• 827656 Starting ring gear with limiting device
  No longer available
• 840815 Torque limiter
  • 200 cc version
  No longer available
