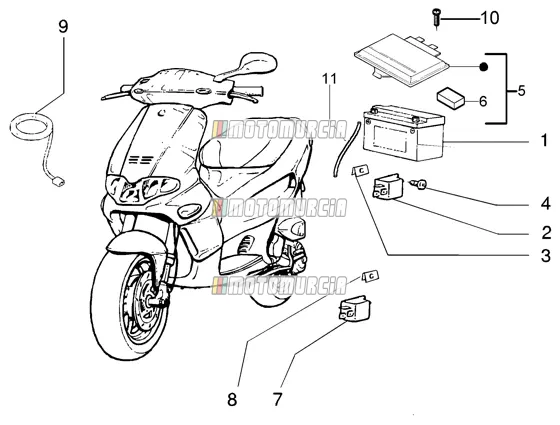

Exploded view — Electrical Devices

Products

1 Battery Available 2188235

• 2188235 Battery


  Batterie YB9-B, 12 V, 9 A, Standard, without acid pack, 138x77x141 mm Piaggio Group · 584810 ↻ Replaces 2188235, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 81,88

  Add to cart
• • Carburettor version (C364M)
  • Injection version (C361M)
  • Year of manufacture: 2012
  • Year of manufacture: 2013


  Batterie YB9-B, 12 V, 9 A, Standard, without acid pack, 138x77x141 mm Piaggio Group · 584810 Available · Shipped in 3–5 working days

  € 81,88

  Add to cart

  Alternatives from other brands



  LTX9A-4 50914 GEL Landport · MGLTX9A4 Available · Shipped in 3–5 working days

  € 79,23

  Add to cart



  LB9B 50914 DRY Landport · MDLB9B Available · Shipped in 4–7 working days

  € 51,52

  Add to cart



  LTX9A-BS 50914 AGM Landport · MALTX9ABS Available · Shipped in 4–7 working days

  € 59,21

  Add to cart

2 Relay 12V-30A Available 58002R

• 58002R Relay 12V-30A


  Ignition Relay 12 V, 30 A Piaggio Group · 58246R ↻ Replaces 58002R, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 9,60

  Add to cart

3 Spring, plate Available 185802

• 185802 Spring, plate


  Sheet nut Piaggio Group · CM017409 ↻ Replaces 185802, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

4 Self-tap screw Available 576189

• 576189 Self-tap screw


  Screw 4,2x13 mm Piaggio Group · 259349 ↻ Replaces 576189, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Battery cover Available 576170

•

  Battery Cover Piaggio Group · 576170 Available · Shipped in 3–5 working days

  € 23,39

  Add to cart

6 Pad Available 577313

•

  Buffer Piaggio Group · 577313 Available · Shipped in 3–5 working days

  € 4,67

  Add to cart

7 Remote control switch 80A Available 583337

• 583337 Remote control switch 80A


  Starting Relay 12 V, 80 A Piaggio Group · 58115R ↻ Replaces 583337, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 24,91

  Add to cart
• 584319 Remote control switch


  Starting Relay 12 V, 80 A Piaggio Group · 58115R ↻ Replaces 584319, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 24,91

  Add to cart
• 584521 Remote control switch 12V-80A


  Starting Relay 12 V, 80 A Piaggio Group · 58115R ↻ Replaces 584521, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 24,91

  Add to cart

8 Spring, plate Available 185802

• 185802 Spring, plate


  Sheet nut Piaggio Group · CM017409 ↻ Replaces 185802, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

9 Immobilizer antenna Available 828800

• 828800 Immobilizer antenna


  Aerial Immobiliser APAC (Asia) Piaggio Group · 1D003415R ↻ Replaces 828800, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 42,02

  Add to cart

10 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

11 Breather pipe Available 582520

•

  Breather Pipe Piaggio Group · 582520 Available · Shipped in 3–5 working days

  € 6,82

  Add to cart
