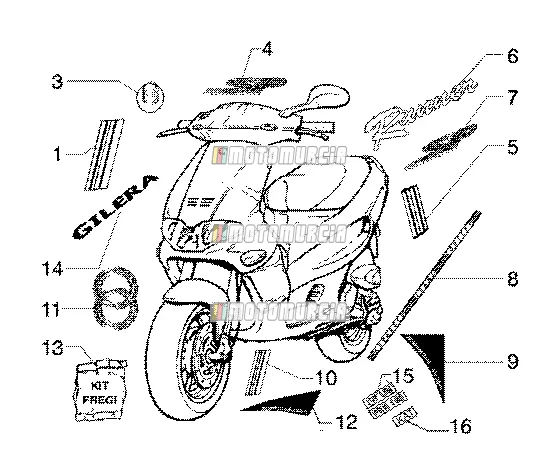

Exploded view — Emblem (SP)

Products

1 Decal 575760 No longer available

• 575760 Decal Quantity needed: 2
  No longer available

3 Gilera shield 573508 No longer available

• 573508 Gilera shield
  No longer available

4 Sticker - Decal 574897 No longer available

• 574897 Sticker - Decal
  No longer available

5 Rear stripe 574893 No longer available

• 574893 Rear stripe Quantity needed: 2
  No longer available

6 Sticker - Decal 575477 No longer available

• 575477 Sticker - Decal
  No longer available

7 Sticker - Decal 5757520028 No longer available

• 5757520028 Sticker - Decal Quantity needed: 2
  No longer available
• 5757520095 Sticker - Decal Quantity needed: 2
  No longer available
• 57575200R4 Sticker - Decal Quantity needed: 2
  No longer available

8 Sticker - Decal 5757560028 No longer available

• 5757560028 Sticker - Decal Quantity needed: 2
  No longer available
• 5757560095 Sticker - Decal Quantity needed: 2
  No longer available
• 57575600R4 Sticker - Decal Quantity needed: 2
  No longer available

9 Sticker - Decal 57575700R4 No longer available

• 57575700R4 Sticker - Decal
  No longer available
• 5757580028 Sticker - Decal
  No longer available
• 5757580095 Sticker - Decal
  No longer available
• 57575800R4 Sticker - Decal
  No longer available
• 5757570028 Sticker - Decal
  No longer available
• 5757570095 Sticker - Decal
  No longer available

10 Front mudguard stripe 574896 No longer available

• 574896 Front mudguard stripe
  No longer available

11 Front cover 574892 No longer available

• 574892 Front cover Quantity needed: 2
  No longer available

12 Sticker - Decal 5757540028 No longer available

• 5757540028 Sticker - Decal
  No longer available
• 5757540095 Sticker - Decal
  No longer available
• 57575400R4 Sticker - Decal
  No longer available
• 5757550028 Sticker - Decal
  No longer available
• 5757550095 Sticker - Decal
  No longer available
• 57575500R4 Sticker - Decal
  No longer available

13 Sticker - Decal 5754610028 No longer available

• 5754610028 Sticker - Decal
  No longer available
• 5754610095 Sticker kit
  No longer available
• 57635200R4 Sticker kit
  No longer available

14 Sticker - Decal 574891 No longer available

• 574891 Sticker - Decal Quantity needed: 2
  No longer available

15 Sticker - Decal 575466 No longer available

• 575466 Sticker - Decal Quantity needed: 2
  No longer available

16 "Kat" plate 575735 No longer available

• 575735 "Kat" plate
  No longer available
