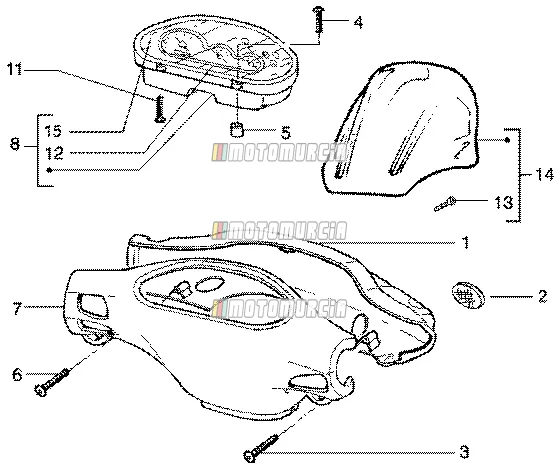

Exploded view — Dashboard - Handlebar Cover

Products

1 Handlebar cover 56365750R7 No longer available

• 56365750R7 Handlebar cover
  No longer available

2 Plug 574502 No longer available

• 574502 Plug
  No longer available

3 Screw Available 267958

•

  Sheet Metal Screw length: 20mm Piaggio Group · 267958 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

4 Screw Available 270793

• • No ABS


  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Bushing Available 297707

• 297707 Bushing Quantity needed: 2


  No description available Piaggio Group · 2977076 ↻ Replaces 297707, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 5,12

  Add to cart

6 Screw Available 267958

•

  Sheet Metal Screw length: 20mm Piaggio Group · 267958 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

7 Handlebar cover 298148000D No longer available

• 298148000D Handlebar cover
  No longer available

8 Dashboard 583994 No longer available

• 583994 Dashboard
  No longer available
• 584047 Dashboard
  No longer available

11 Screw Available 018544

•

  Screw Piaggio Group · 018544 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

12 Speedometer cover 494806 No longer available

• 494806 Speedometer cover
  No longer available
• 494892 Glass
  No longer available

13 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

14 Kit Windscreen 581258 No longer available

• 581258 Kit Windscreen
  No longer available

15 Cover 497044 No longer available

• 497044 Cover
  No longer available
• 497337 Guard
  No longer available
