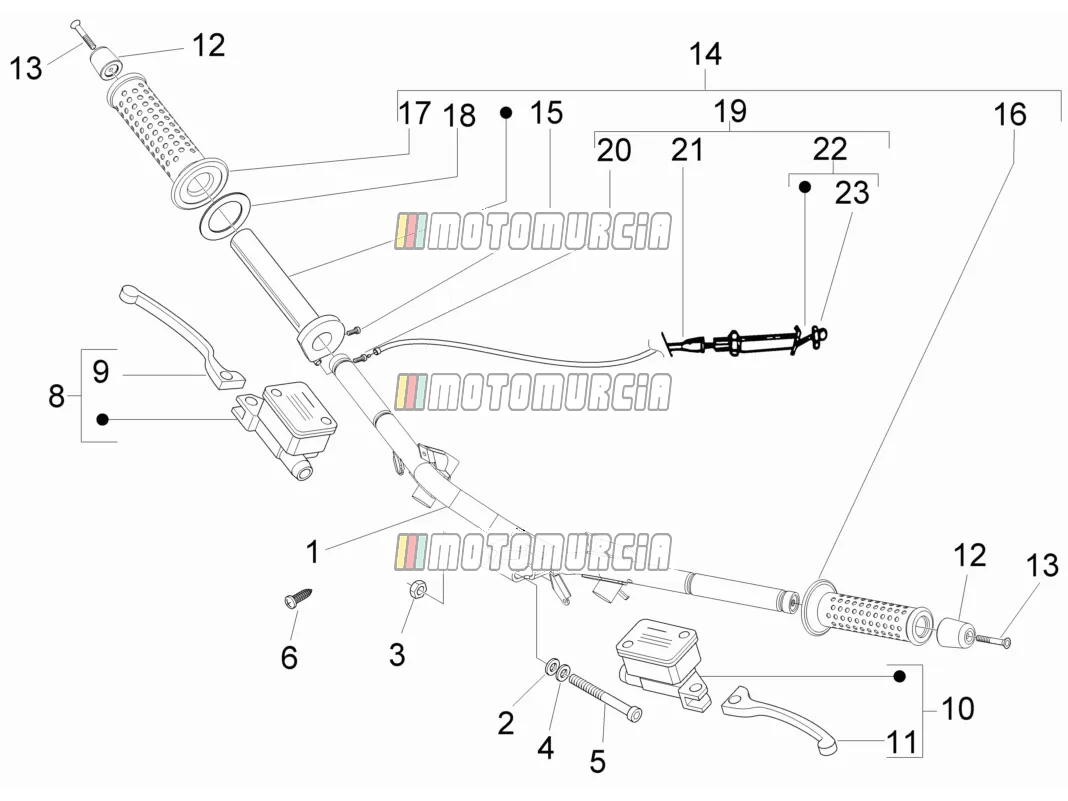

Exploded view — Handlebars - Master Cil.

Products

1 Handlebar Available 6550825

•

  Handlebar Piaggio Group · 6550825 Available

  € 168,35

  Add to cart

2 Washer (spring) Available 012543

•

  Washer Piaggio Group · 012543 Available

  € 1,43

  Add to cart

3 Nut Available 015330

•

  Standard nut Piaggio Group · 015330 Available

  € 3,84

  Add to cart

4 Washer Available 178790

•

  Washer 22x10,3x2,5 mm Piaggio Group · 178790 Available

  € 1,74

  Add to cart

5 Screw Available 655554

•

  Screw M10x65 Piaggio Group · 655554 Available

  € 2,27

  Add to cart

6 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 5 Available

  € 0,99

  Add to cart

8 Brake hydraulic pump Right Available CM074901

•

  Master brake cylinder Heng Tong, right Piaggio Group · CM074901 Available

  € 77,17

  Add to cart

10 Brake hydraulic pump Available CM074801

•

  Master brake cylinder Heng Tong, left Piaggio Group · CM074801 Available

  € 90,73

  Add to cart

11 Brake lever Available 497042

•

  Brake Lever silver Piaggio Group · 497042 Available

  € 13,37

  Add to cart

12 Handlebar weight Available 654515

•

  Handlebar end weights black Piaggio Group · 654515 · Quantity needed: 2 Available

  € 30,10

  Add to cart

13 Screw Available 1B006376

•

  Torx screw length: 55,0cm, black Piaggio Group · 1B006376 Available

  € 1,61

  Add to cart

14 Throttle grip Available CM060971

•

  Throttle grip Piaggio Group · CM060971 Available

  € 59,36

  Add to cart

15 Screw Available 123394

•

  Screw Piaggio Group · 123394 Available

  € 2,86

  Add to cart

16 Grip Left Available 271452

•

  Rubber Grip Ø 22,00 mm, left Piaggio Group · 271452 Available

  € 12,49

  Add to cart

17 Grip Right Available 271453

•

  Rubber Grip Ø 24,00 mm, right Piaggio Group · 271453 Available

  € 12,49

  Add to cart

18 Ring 38,3x27x1,2 Available 562923

•

  Washer Piaggio Group · 562923 Available

  € 0,99

  Add to cart

19 Splitter control transmission Available 949592

•

  Throttle cable Piaggio Group · 949592 Available

  € 13,93

  Add to cart

20 Terminal 114256 No longer available

• 114256 Terminal
  No longer available

21 Guard Available 147511

•

  Sleeve Piaggio Group · 147511 · Quantity needed: 2 Available

  € 1,61

  Add to cart

22 Adjuster screw Available 269145

•

  Adjusting Screw Piaggio Group · 269145 Available

  € 2,86

  Add to cart

23 Nut Available 020206

•

  Standard nut Piaggio Group · 020206 Available

  € 1,79

  Add to cart
