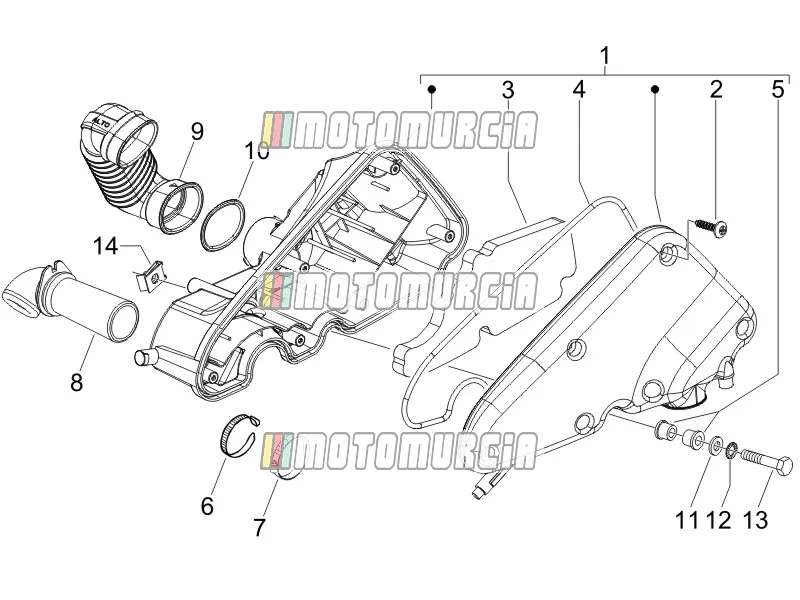

Exploded view — Air Filter

Products

1 Air filter Available 845662

•

  Air Filter complete Piaggio Group · 845662 Available

  € 76,65

  Add to cart

2 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 6 Available

  € 0,99

  Add to cart

3 Air filter Available 4797480P

•

  Air filter Piaggio Group · 4797480P Available

  € 9,67

  Add to cart

4 Seal air filter box Available 479749

•

  Gasket Piaggio Group · 479749 Available

  € 11,28

  Add to cart

5 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available

  € 1,48

  Add to cart

6 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart

7 Clamp Available 1A000833

•

  Clamp Piaggio Group · 1A000833 · Quantity needed: 2 Available

  € 10,74

  Add to cart

8 Hose Backorder 829701

•

  Inlet pipe Piaggio Group · 829701 Backorder

  € 34,81

  Add to cart

9 Bellows Available 959253

•

  Air Intake Piaggio Group · 959253 Available

  € 20,33

  Add to cart

10 Air socket ring Backorder 959254

•

  Oil seal Piaggio Group · 959254 Backorder

  € 2,20

  Add to cart

11 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

12 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

  € 1,45

  Add to cart

13 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 · Quantity needed: 2 Available

  € 0,99

  Add to cart

14 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart
