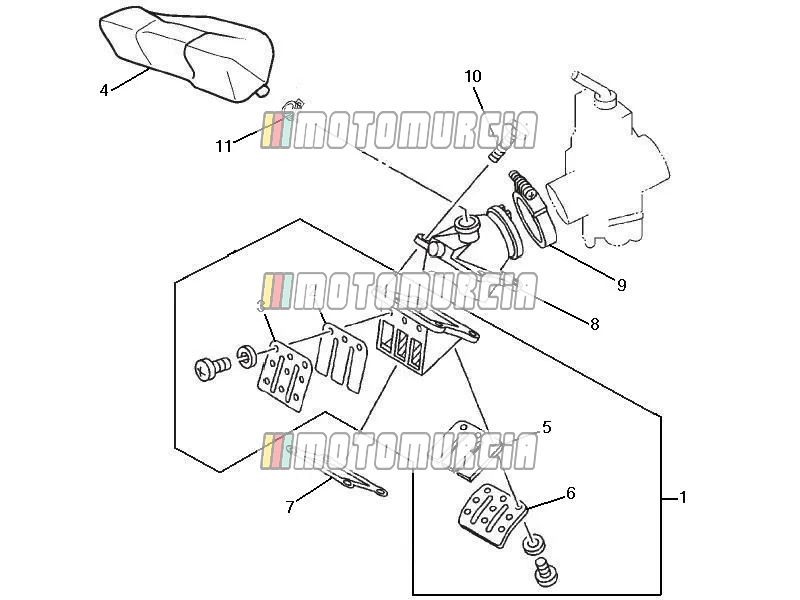

Exploded view — Carburettor, Assembly - Union Pipe

Products

1 REED VALVE ASSY 00M12502099 No longer available

• 00M12502099 REED VALVE ASSY
  No longer available

2 REED, VALVE 00M12502045 No longer available

• 00M12502045 REED, VALVE
  No longer available

3 STOPPER, REED VALVE 00M12502068 No longer available

• 00M12502068 STOPPER, REED VALVE
  No longer available

4 TANK 00H05000561 No longer available

• 00H05000561 TANK
  No longer available

5 REED, VALVE 00M12502100 No longer available

• 00M12502100 REED, VALVE
  No longer available

6 STOPPER, REED VALVE 00M12502101 No longer available

• 00M12502101 STOPPER, REED VALVE
  No longer available

7 GASKET, VALVE SEAT 00M12502021 No longer available

• 00M12502021 GASKET, VALVE SEAT
  No longer available

8 Intake Manifold 00M12502086 No longer available

• 00M12502086 Intake Manifold
  No longer available

9 Clamp 00M12502223 No longer available

• 00M12502223 Clamp
  No longer available

10 Screw 00M12502174 No longer available

• 00M12502174 Screw
  No longer available

11 CLIP (4V3) 00M12502232 No longer available

• 00M12502232 CLIP (4V3)
  No longer available
