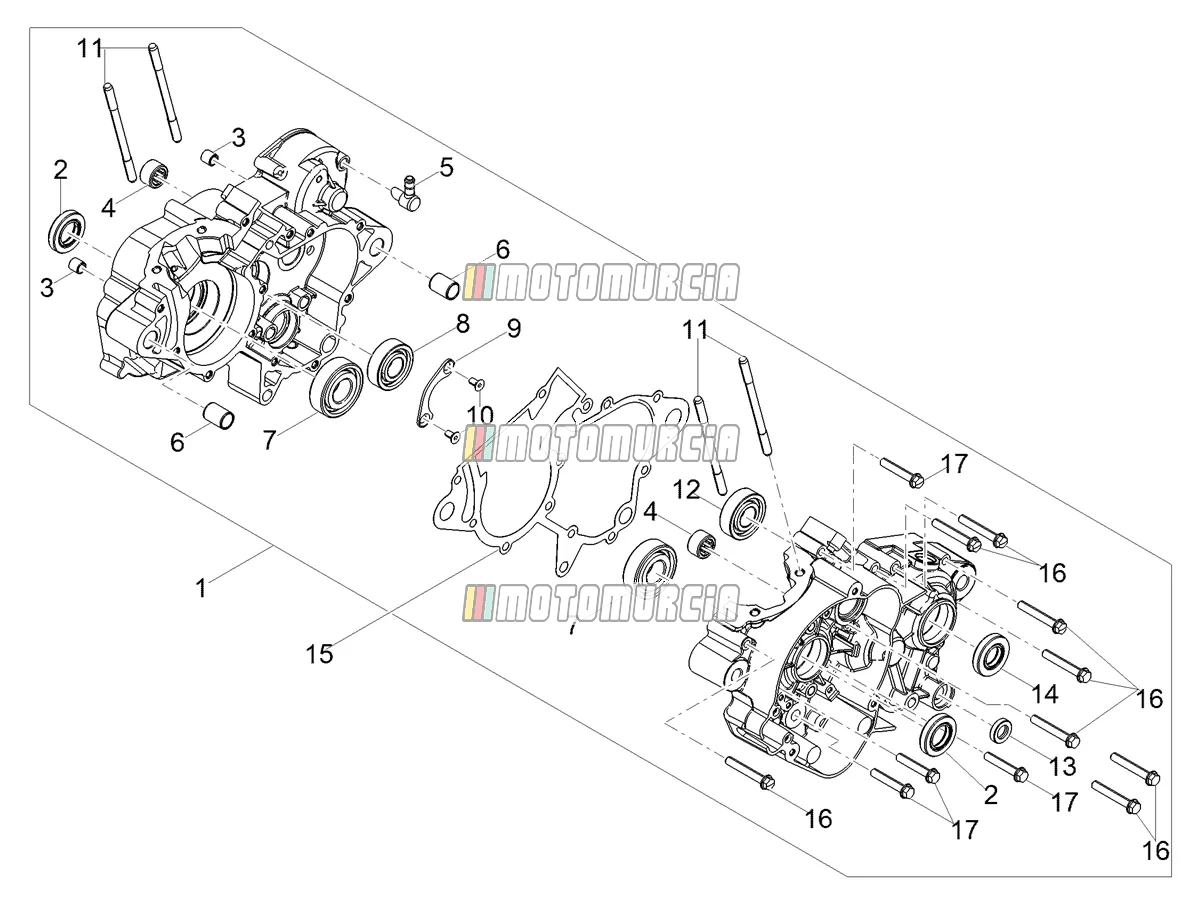

Exploded view — Crankcases I

Products

1 Carter, pair Available CM2865015

•

  Crankshaft Housing Piaggio Group · CM2865015 Available

  € 1.134,01

  Add to cart

2 Oil seal Available 847020

•

  Crankshaft seal Piaggio Group · 847020 · Quantity needed: 2 Available

  € 14,02

  Add to cart

3 Dowel pin Available 847241

•

  Adapter Sleeve Piaggio Group · 847241 · Quantity needed: 2 Available

  € 6,46

  Add to cart

4 Needle bearing Available 847211

•

  Needle bearing HK 14/12, 14x20x12 mm Piaggio Group · 847211 · Quantity needed: 2 Available

  € 15,28

  Add to cart

5 Joint Available 847024

•

  Nozzle Piaggio Group · 847024 Available

  € 11,59

  Add to cart

6 Ring nut Backorder 847023

•

  Standard nut Piaggio Group · 847023 · Quantity needed: 2 Backorder

  € 6,91

  Add to cart

7 Crankshaft bearing Available 8471726

•

  Crankshaft bearing 6204 C4, 20x47x14 mm Piaggio Group · 8471726 · Quantity needed: 2 Available

  € 23,17

  Add to cart

8 Bearing Available 847209

•

  Bearing Piaggio Group · 847209 Available

  € 12,04

  Add to cart

9 Retaining plate Available 847021

•

  Plate Piaggio Group · 847021 Available

  € 7,90

  Add to cart

10 Screw Available 1A003116

•

  Screw Piaggio Group · 1A003116 · Quantity needed: 2 Available

  € 1,29

  Add to cart

11 Stud bolt Available 877264

•

  Stud Screw length: 10,9cm Piaggio Group · 877264 · Quantity needed: 4 Available

  € 11,83

  Add to cart

12 Bearing Backorder 8470866

•

  Ball bearing 6203 C3, 17x40x12 mm Piaggio Group · 8470866 Backorder

  € 10,62

  Add to cart

13 Oil seal Available 847075

•

  Shaft Seal 12x20x5 mm Piaggio Group · 847075 Available

  € 6,20

  Add to cart

14 Oil seal Available 847019

•

  Shaft Seal 17x35x7 mm Piaggio Group · 847019 Available

  € 6,90

  Add to cart

15 Gasket - crankcase Available 1A009969

•

  Housing Gasket Piaggio Group · 1A009969 Available

  € 17,12

  Add to cart

16 Screw w/ flange M6x50 Backorder B013042

•

  Flanged Screw M6x50 Piaggio Group · B013042 · Quantity needed: 8 Backorder

  € 2,75

  Add to cart

17 Screw Available 1A011120

•

  Flanged Screw M6x40 Piaggio Group · 1A011120 · Quantity needed: 4 Available

  € 0,99

  Add to cart
