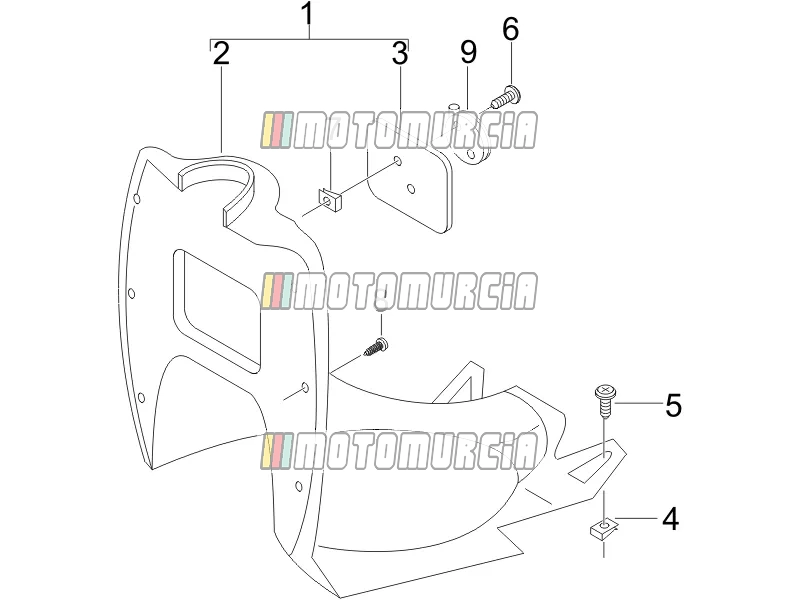

Exploded view — Front Glove-box - Knee-guard Panel

‹ Back to model

Gilera Stalker 50 2006

Products

1 COUNTERSHIELD 574207000C No longer available

574207000C COUNTERSHIELD
No longer available

2 COUNTERSHIELD 574207000C No longer available

574207000C COUNTERSHIELD
No longer available

3 FLAP 573346000C No longer available

573346000C FLAP
No longer available

4 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

€ 2,04

5 Screw (M6x16) Available 575249

Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available

€ 0,99

6 Clip nuts Available CM017408

Sheet nut Piaggio Group · CM017408 · Quantity needed: 2 Available

€ 0,99

7 Screw Available 008457

Thread Screw 4,2x19 mm Piaggio Group · 008457 · Quantity needed: 2 Available

€ 1,59

8 Screw Available 014754

Sheet Metal Screw 4,2x25 mm Piaggio Group · 014754 · Quantity needed: 8 Available

€ 0,99

9 Hook 265093 No longer available

265093 Hook
No longer available
