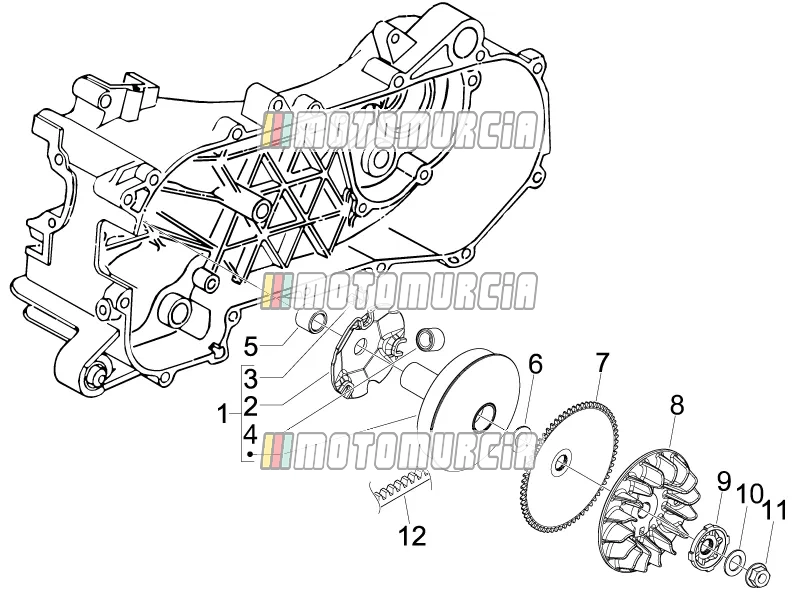

Exploded view — Driving Pulley

Products

1 Variator Available CM110302

•

  Variator with 6 rollers Piaggio Group · CM110302 Available · Shipped in 3–5 working days

  € 96,13

  Add to cart

2 Roller housing back plate Available 480227

•

  Calotte Piaggio Group · 480227 Available · Shipped in 3–5 working days

  € 15,60

  Add to cart

3 Variator slider Available 289931

•

  Slide Piaggio Group · 289931 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,23

  Add to cart

4 Roller weights (19x15.5 - 7,5 g) Available CM1102015

•

  Variator weights 19x15,5 mm, 8,0 g, Content: 6 Stk Piaggio Group · CM1102015 · Quantity needed: 6 Available · Shipped in 3–5 working days

  € 18,34

  Add to cart

5 Spacer Available CM100615

• • Carburettor version (C364M)
  • Injection version (C361M)
  • Limited version 25 km/h
  • Country: Europe


  Spacer Ring 25x20x6,0 mm Piaggio Group · CM100615 Available · Shipped in 3–5 working days

  € 3,42

  Add to cart

6 Spacer Available 479495

•

  Spacer Ring Piaggio Group · 479495 Available · Shipped in 3–5 working days

  € 6,55

  Add to cart
• • 50 cc 2-stroke 30 km/h
  • Injection version (C361M)
  • Country: Japan


  Spacer Ring 25x20x4,5 mm Piaggio Group · CM100607 Available · Shipped in 3–5 working days

  € 3,42

  Add to cart

7 V-Belt Pulley Available 479561

•

  Toothed Pulley Wheel Piaggio Group · 479561 Available · Shipped in 3–5 working days

  € 28,70

  Add to cart

8 Fan Available 845611

•

  Fan Wheel Piaggio Group · 845611 Available · Shipped in 3–5 working days

  € 6,26

  Add to cart

9 Teethed bush Available 8770756

•

  Star disk Piaggio Group · 8770756 Available · Shipped in 3–5 working days

  € 17,84

  Add to cart

10 Washer Available 265300

•

  Washer Piaggio Group · 265300 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

11 Flanged nut M10x1,25 Available 289519

•

  Flywheel nut M10x1.25 Piaggio Group · 289519 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,52

  Add to cart

12 V-Belt Available 436864

• • Carburettor version (C364M)


  V-Belt Piaggio Group · 436864 Available · Shipped in 3–5 working days

  € 29,50

  Add to cart
